Cold Plate Coolers

Cold plate coolers are usually the best method of cooling an object when the object can be attached directly to the cold plate. The direct contact allows the heat to be efficiently conducted to the thermoelectric (Peltier) modules. This keeps the system operating as efficiently as possible and improves the stability and accuracy of temperature control.

Showing all 14 results

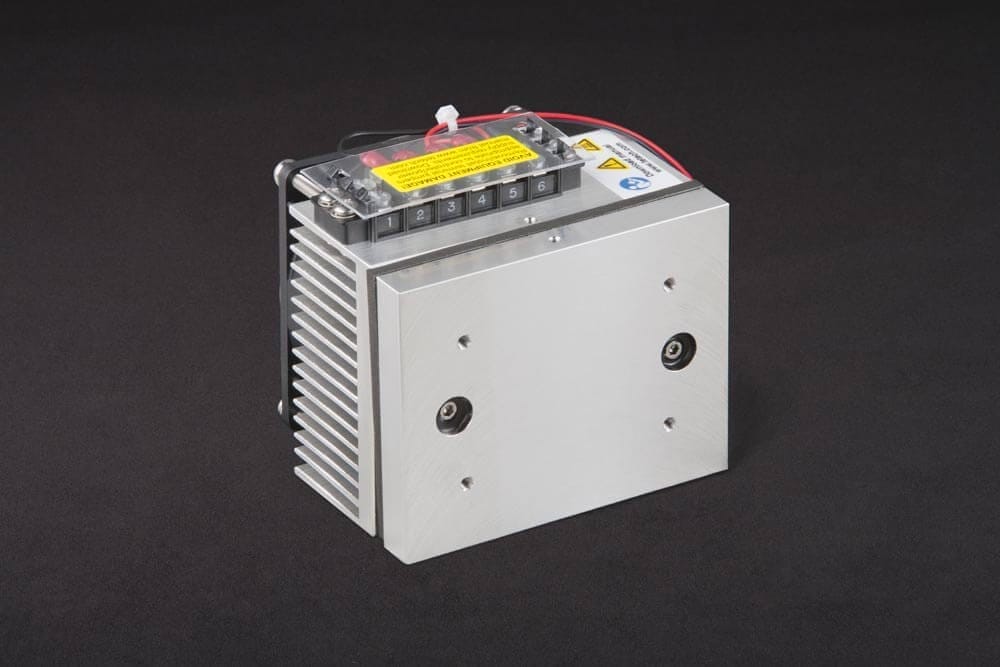

CP-031

Capacity Rating: 31 watts at a 0°C temperature difference.
Example Applications: Small laser diodes and laboratory instruments.
Features: This cold plate provides effective direct contact cooling in our lowest cost standard assembly. The lack of an extender block between the module and cold plate helps make this our smallest cold plate. The cooler is best suited for small heat loads where a large temperature difference is not needed. Can be used for heating and cooling. Powered by 12 VDC, it has the lowest power consumption of any of our standard cold plates, which makes it compatible with all of our temperature controllers.

$184.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list
CP-031HT

Capacity Rating: 31 watts at a 0°C temperature difference.
Example Applications: Small laser diodes and laboratory instruments.
Features: This cold plate provides effective direct contact cooling in our lowest cost standard assembly. The lack of an extender block between the module and cold plate helps make this our smallest cold plate. The cooler is best suited for small heat loads where a large temperature difference is not needed. Powered by 12 VDC, it has the lowest power consumption of any of our standard cold plates, which makes it compatible with all of our temperature controllers. This is a variant of the CP-031 which allows for heating up to 100 °C.

$192.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

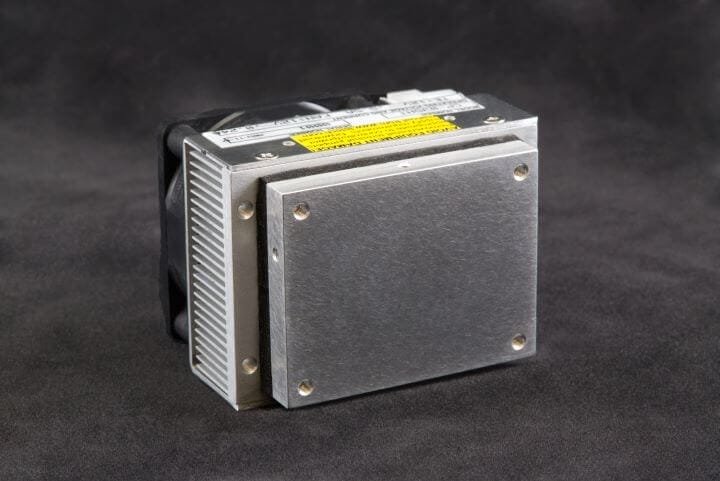

CP-035HT

Capacity Rating: 35 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides very good cooling capacity with a small form factor. Narrow heat sink is only 63 mm wide. Powered by 12 VDC and compatible with all of our temperature controllers. Combined with a bipolar temperature controller, it can also be used for heating up to 100 °C. An optional bracket is available for converting to bench-top use.

$199.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

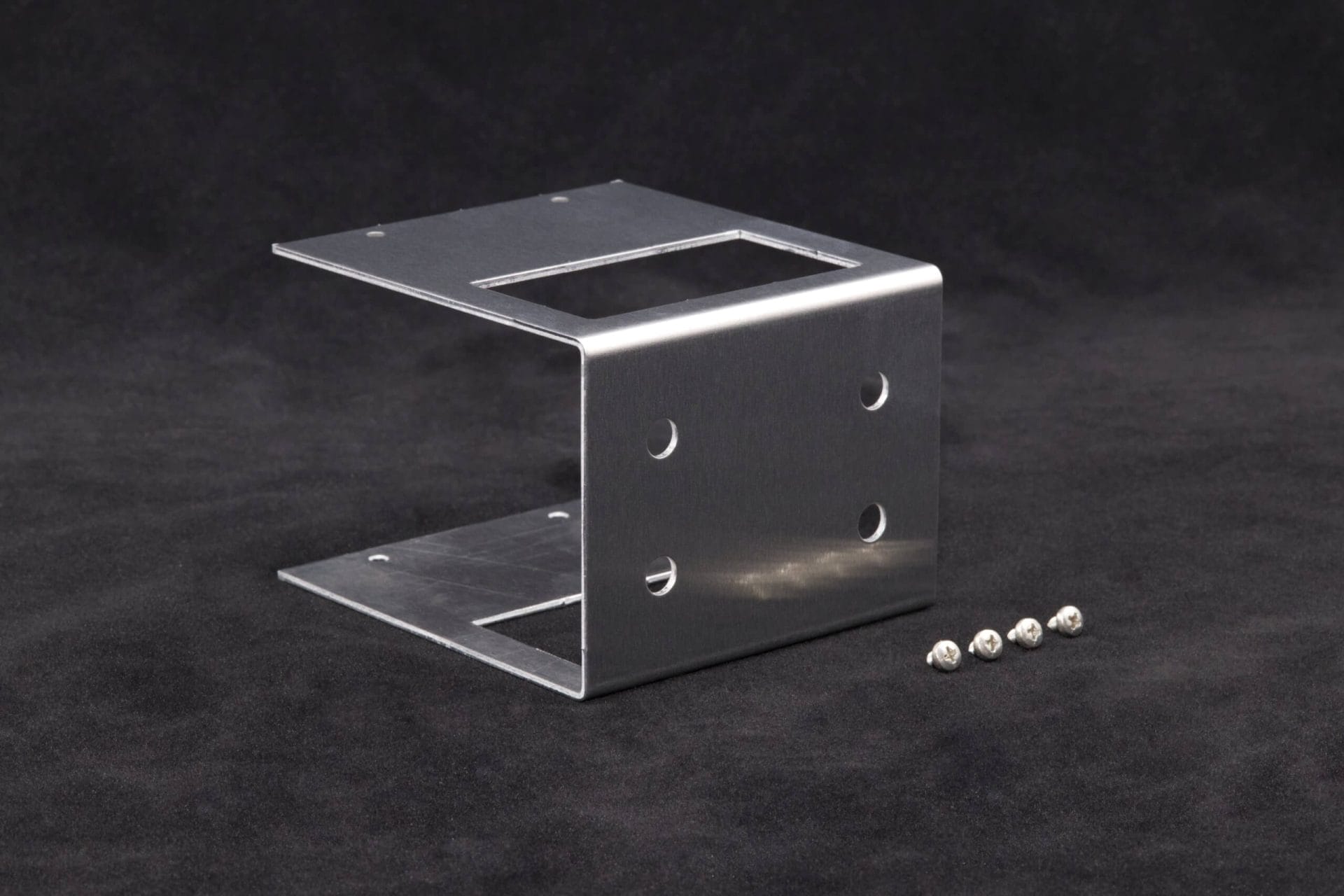

CP-035HT Mounting Bracket

Mounting bracket converts the CP-035HT into a bench-top cooler.

$20.00 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

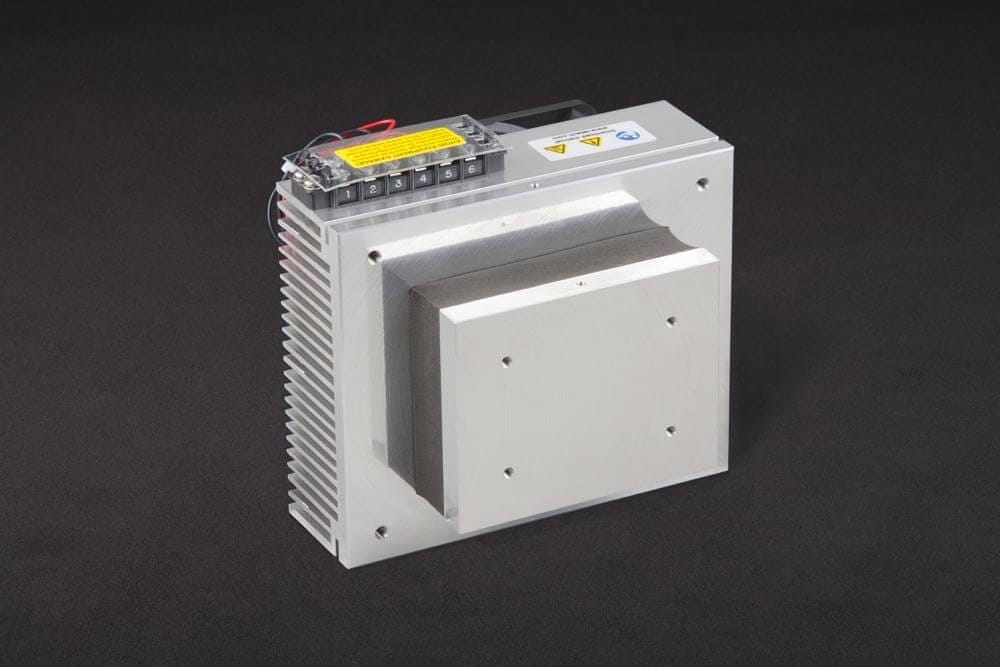

CP-036

Capacity Rating: 34 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides good cooling for small heat loads at low temperatures. This is made possible by using a large heat sink for only one thermoelectric module and an extender block that allows extra insulation between the heat sink and cold plate. Can be used for heating and cooling. Powered by 12 VDC, its low power consumption makes it compatible with all of our temperature controllers.

$232.00 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

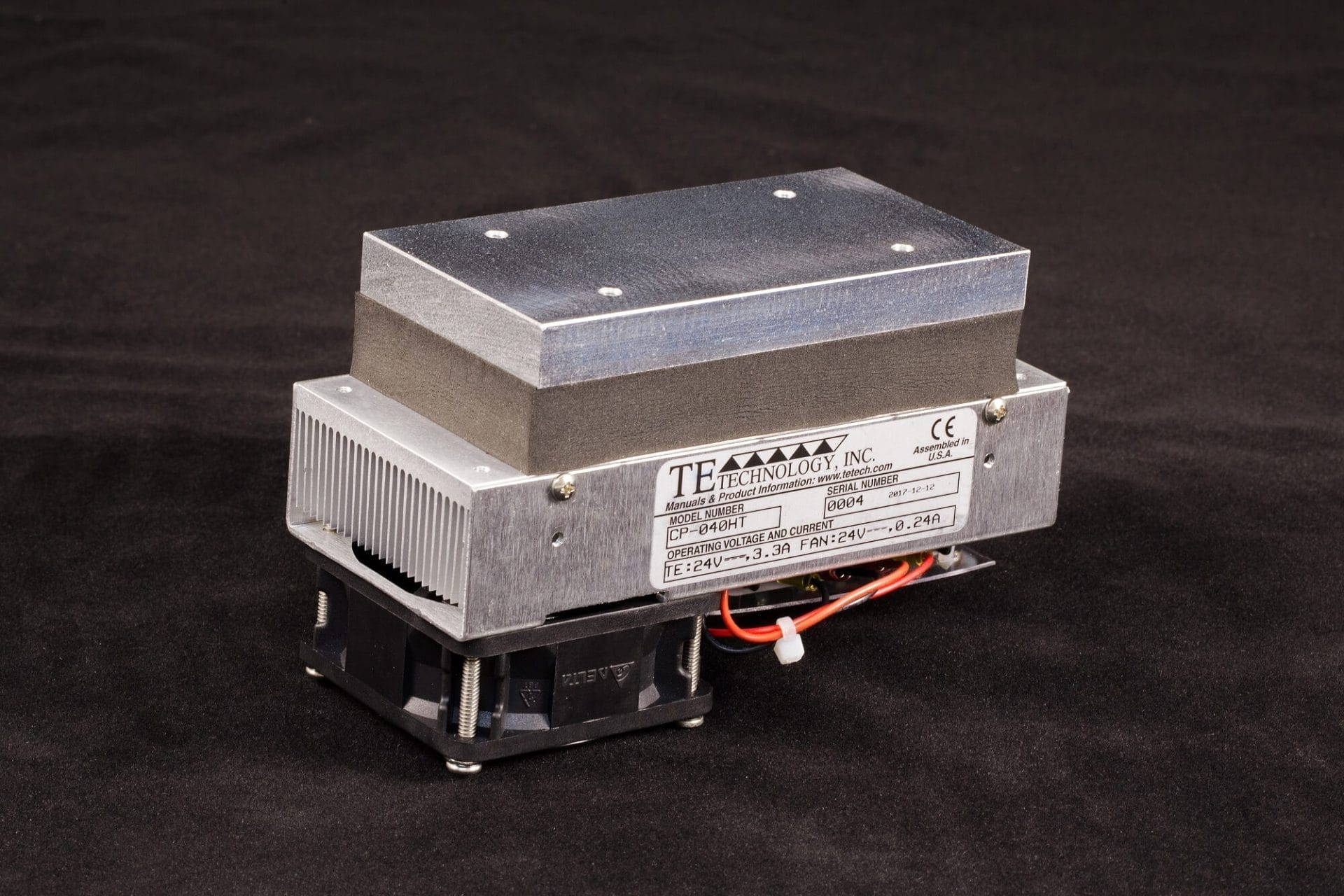

CP-040HT

Capacity Rating: 40 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides very good cooling capacity with a small form factor. Narrow heat sink is only 67 mm wide. Powered by 24 VDC and compatible with all of our temperature controllers. Combined with a bipolar temperature controller, it can also be used for heating up to 100 °C. An optional bracket is available for converting to bench-top use.

$289.00 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

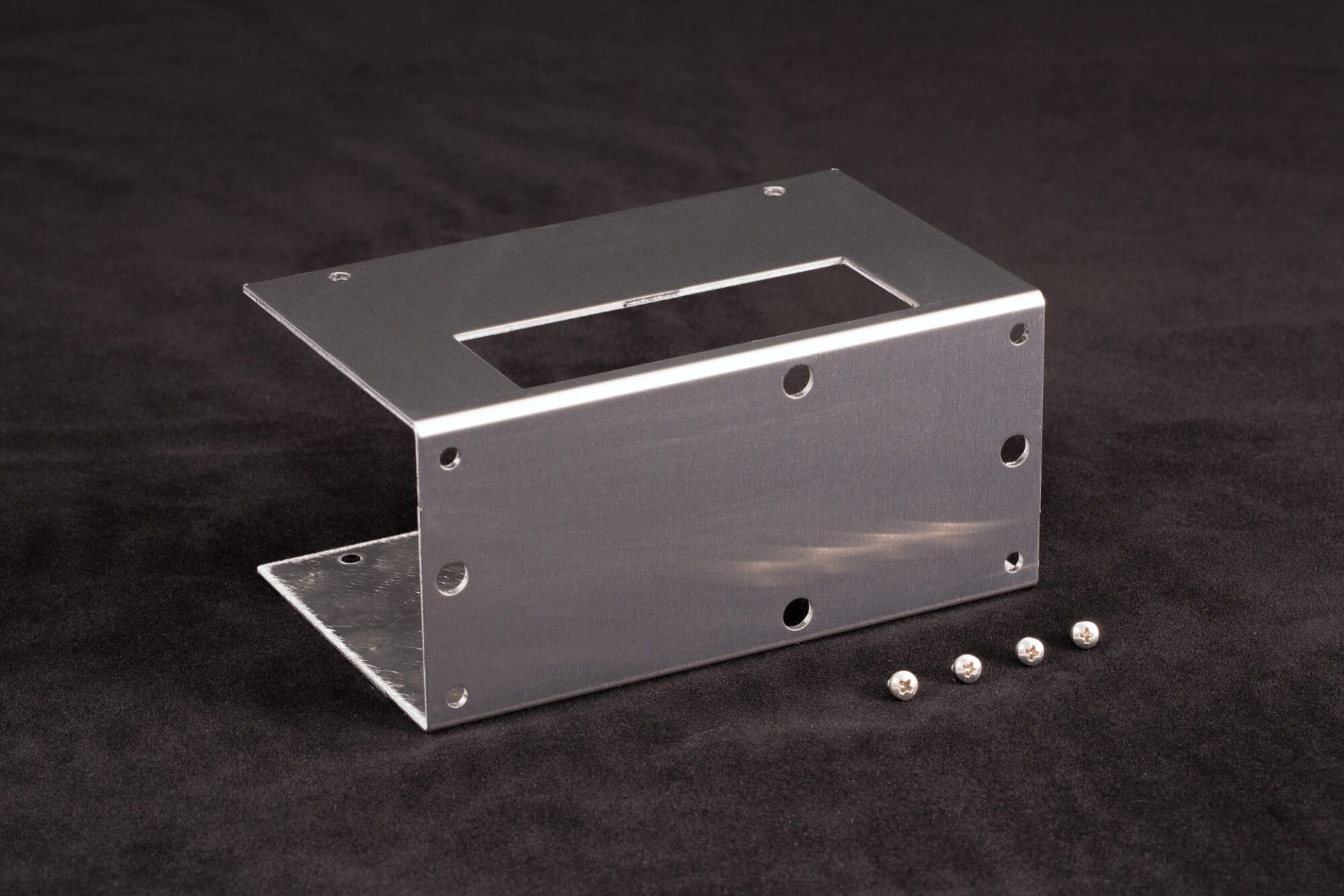

CP-040HT Mounting Bracket

Mounting bracket converts the CP-040HT into a bench-top cooler.

$20.00 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

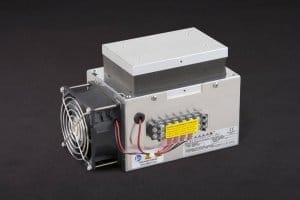

CP-061HT

Capacity Rating: 61 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Two-module cold plate increases the heat-pumping capacity for cooling medium sized heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. This cooler is powered by 24 VDC and is compatible with the TC-48-20 series, TC-720 series, TC-36-25 series, and TC-24-10 temperature controllers. This is a variant of the CP-061 which allows for heating up to 100 °C.

$442.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

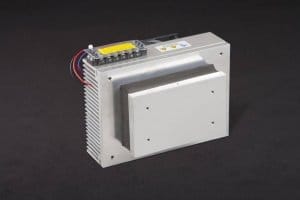

CP-065

Capacity Rating: 65 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Another two-module cooling system with the heat sink airflow directed in a more typical configuration (in the middle and out both ends). Like all of our coolers, it can be easily customized to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.

$295.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

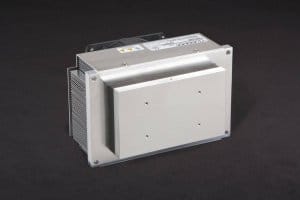

CP-110

Capacity Rating: 110 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, laser diodes, medical products, and cooling corrosive liquids with an optional stainless-steel liquid exchanger.
Features: This cold plate uses two large thermoelectric modules for cooling medium sized heat loads. The high efficiency bonded-fin heat sink keeps the cooler small yet effective. One stainless-steel liquid exchanger can also be attached for cooling of corrosive liquids (please inquire for this option). Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-36-25, TC-48-20 and TC-720 series temperature controllers.

$466.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

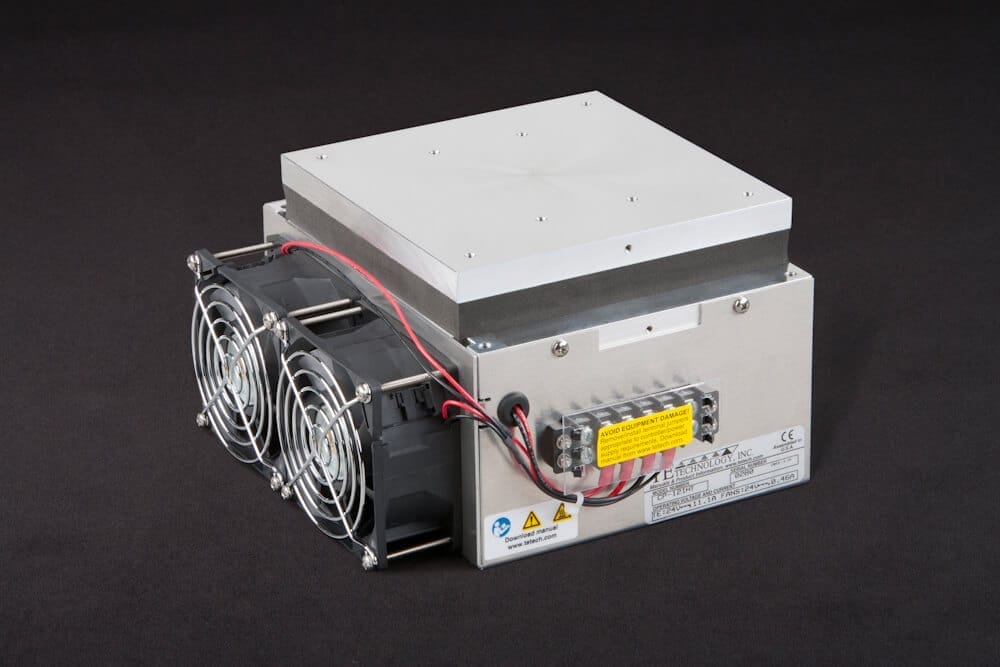

CP-121HT

Capacity Rating: 126 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Four-module cold plate increases the heat-pumping capacity for cooling medium to large heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used with one LC-SSX1 liquid exchanger. Can be used for cooling and heating up to 100 °C (bi-polar controller required). This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

$760.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

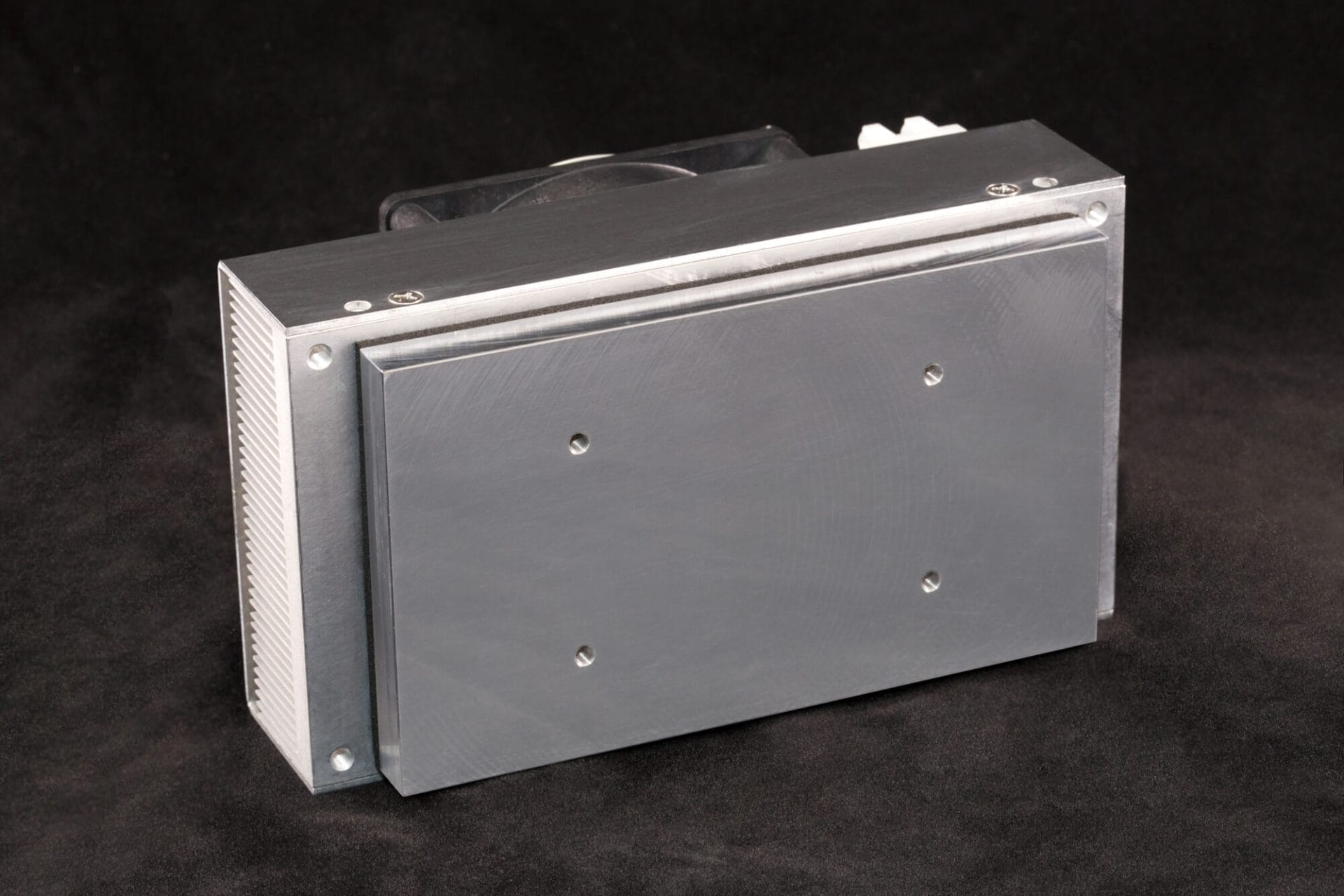

CP-130HT

Capacity Rating: 130 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Four-module cold plate increases the heat-pumping capacity for cooling medium to large heat loads. Exceptional heat-pumping capacity in a small size. Can be used for cooling and heating up to 100 °C (bi-polar controller required). This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

$399.50 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

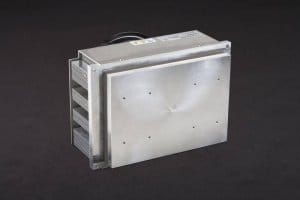

CP-200HT

Capacity Rating: 196 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
Features: A variant of the CP-200, this cooler adds the extra capability of heating up to 100 °C.

$853.00 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list

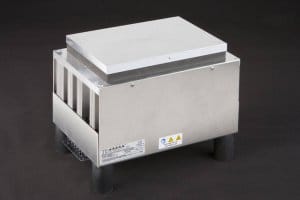

CP-200HT-TT

Capacity Rating: 196 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
Features: A table-top version of the CP-200HT, the unit additionally has a shroud that encloses the fan and also has legs which stand off the fan from the table top, allowing air to enter freely into the heat sink.

$984.00 Add to cart Product Details

Add to quote

This product is already in your quote request list.

Browse the list
