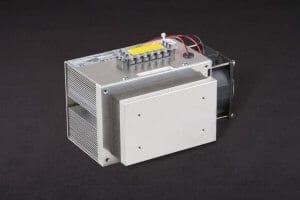

CP-061

Capacity Rating: 61 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Two-module cold plate increases the heat-pumping capacity for cooling medium sized heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-48-20 series, TC-720 series, TC-36-25 series, and TC-24-10 temperature controllers.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $358
10 - 49 $344
50 - 99 $332
100 - 249 $319
SKU: 4090 Category:

Capacity Rating: 61 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Two-module cold plate increases the heat-pumping capacity for cooling medium sized heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-48-20 series, TC-720 series, TC-36-25 series, and TC-24-10 temperature controllers.

Two-module cold plate increases the heat-pumping capacity for cooling medium sized heat loads. Like all of our coolers, it can be easily customized to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera.

• Air travels along the length of fins (in one end, out opposite end).
• Low fan noise (39 dBA) is beneficial in laboratory instrumentation.
• Tapped holes in cold plate for easy attachment of object to be cooled.
• No additional modifications needed for bench-top use.
• Ideal for small to medium heat loads, such as laser diodes, thermal stabilization of electronic components, and medical/laboratory instruments.
• Provides effective direct-contact cooling which is ideal for precision temperature control.
• Can be used for heating and cooling (requires heat/cool controller).
• Threaded holes are located in cold plate for easy attachment of a temperature sensor, interface plate, or other object.
• One LC-SSX1 stainless-steel liquid exchanger can also be attached to make this into a liquid cooler suitable for cooling of corrosive liquids.
• High-temperature versions and other customizations are available as custom products for OEM applications upon request.
• CE marked, RoHS compliant

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

CP-061 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

NOTE WHEN SAVING FILES: When downloading a solid model some browsers may change the name of the extension. You must save the file to your computer using the “Save as” option and rename the extension back to the appropriate type before using. (For example, a SolidWorks file will be saved with the .htm or .html extension, the file extension must be changed back to .sldprt before using.)

Compatible With:
