Cold Plate Coolers

Cold plate coolers are usually the best method of cooling an object when the object can be attached directly to the cold plate. The direct contact allows the heat to be efficiently conducted to the thermoelectric (Peltier) modules. This keeps the system operating as efficiently as possible and improves the stability and accuracy of temperature control.

Product Image Model Number Capacity (ΔT=0), 35 °C Ambient Length (mm) Width (mm) Height (mm) Operating Voltage (VDC) Operating Current (Amps), Typical Maximum Plate Temperature (°C, Heating) Data Sheet Solid Models Price Stock Status Product Page
CP-031 30 102 80 91 12 4.5 70 Data Sheet Solid Models $184.00 Info/Buy
CP-031HT 30 102 80 91 12 4.5 100 Data Sheet Solid Models $192.00 Info/Buy

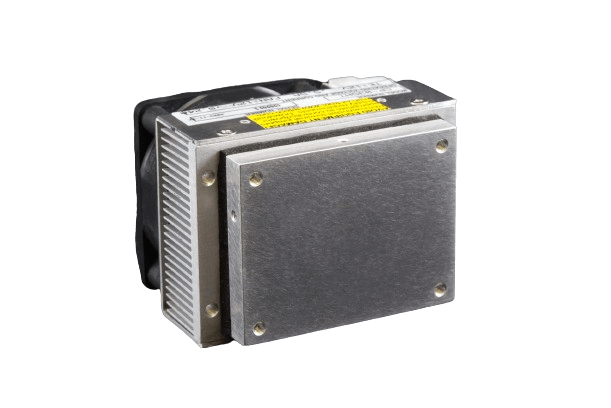

CP-035HT 35 85 63 67 12 4.3 100 Data Sheet Solid Models $199.00 Info/Buy

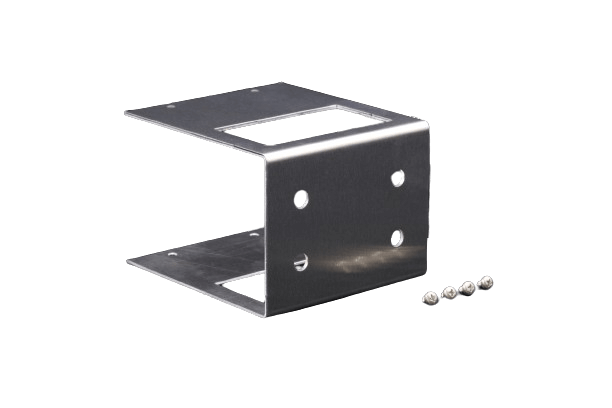

CP-035HT Mounting Bracket N/A 85 68 109 N/A N/A N/A Data Sheet Solid Models $20.00 Info/Buy
CP-036 33 152 127 114 12 4.7 70 Data Sheet Solid Models $273.00 Info/Buy
CP-040HT 41 140 67 89 24 2.7 100 Data Sheet Solid Models $335.00 Info/Buy

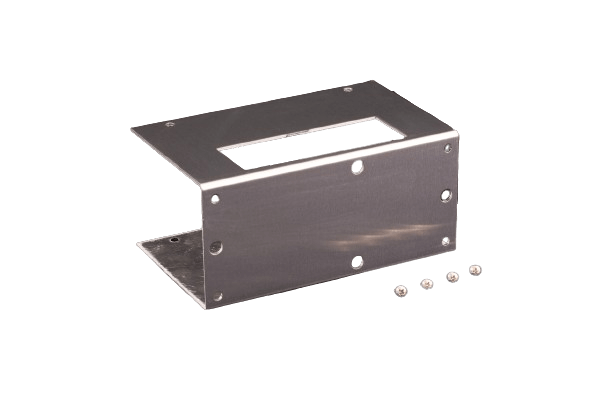

CP-040HT Mounting Bracket N/A 140 72 120 N/A N/A N/A Data Sheet Solid Models $20.00 Info/Buy
CP-061HT 59 198 194 127 24 4.5 100 Data Sheet Solid Models $442.00 Info/Buy
CP-065 60 178 127 114 24 4.5 70 Data Sheet Solid Models $295.00 Info/Buy
CP-110 105 203 130 140 24 9.0 70 Data Sheet Solid Models $512.00 Info/Buy
CP-121HT 128 198 188 119 24 9.2 100 Data Sheet Solid Models $760.00 Info/Buy
CP-130HT 144 178 99 88 24 8.1 100 Data Sheet Solid Models $461.00 Info/Buy
CP-200HT 204 254 176 165 24 14.1 100 Data Sheet Solid Models $933.00 Info/Buy
CP-200HTTT 204 254 176 206 24 14.1 100 Data Sheet Solid Models $1,072.00 Info/Buy
