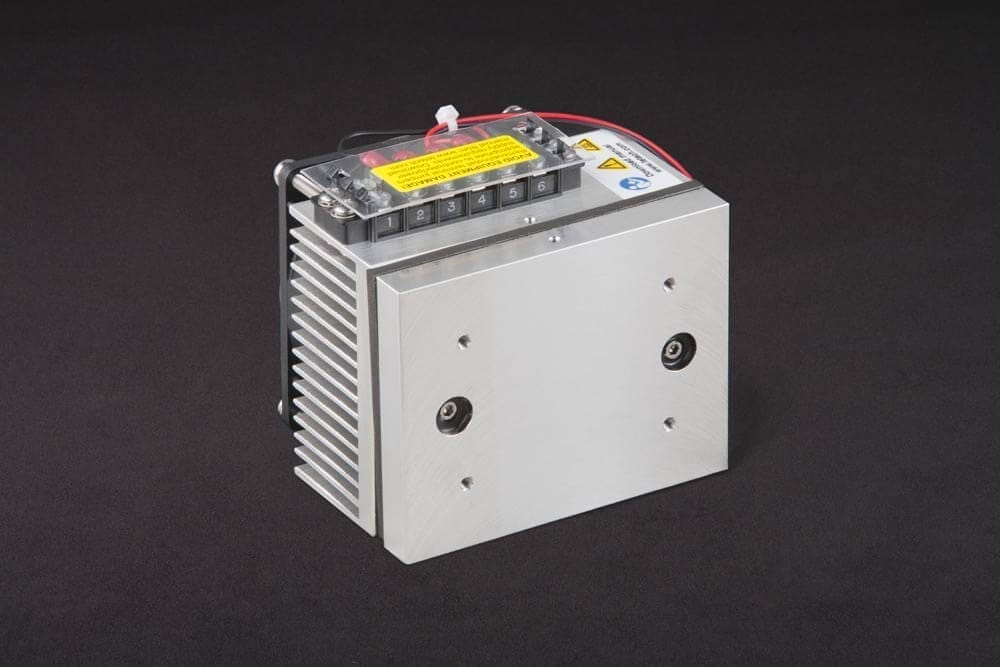

CP-031

Capacity Rating: 28 watts at a 0°C temperature difference.
Example Applications: Small laser diodes and laboratory instruments.
Features: This cold plate provides effective direct contact cooling in our lowest cost standard assembly. The lack of an extender block between the module and cold plate helps make this our smallest cold plate. The cooler is best suited for small heat loads where a large temperature difference is not needed. Can be used for heating and cooling. Powered by 12 VDC, it has the lowest power consumption of any of our standard cold plates, which makes it compatible with all of our temperature controllers.

SKU: 4070. Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $154
10 - 49 $148
50 - 99 $142
100 - 249 $137

Capacity Rating: 28 watts at a 0°C temperature difference.
Example Applications: Small laser diodes and laboratory instruments.
Features: This cold plate provides effective direct contact cooling in our lowest cost standard assembly. The lack of an extender block between the module and cold plate helps make this our smallest cold plate. The cooler is best suited for small heat loads where a large temperature difference is not needed. Can be used for heating and cooling. Powered by 12 VDC, it has the lowest power consumption of any of our standard cold plates, which makes it compatible with all of our temperature controllers.

• Effective direct cooling.
• Can be used for heating (70 °C maximum plate temperature, heat/cool “bipolar” temperature controller required).
• Compact design for space sensitive applications.
• Tapped holes in cold plate for easy attachment of object to be cooled.
• Ideal for precise temperature control applications.

This cold plate provides effective direct contact cooling in our lowest cost standard assembly. The lack of an extender block between the module and cold plate helps make this our smallest cold plate. The cooler is best suited for small heat loads where a large temperature difference is not needed. Powered by 12 VDC, it has the lowest power consumption of any of our standard cold plates, which makes it compatible with all of our temperature controllers.

Product is CE marked and is RoHS compliant.

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

CP-031 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

NOTE WHEN SAVING FILES: When downloading a solid model some browsers may change the name of the extension. You must save the file to your computer using the “Save as” option and rename the extension back to the appropriate type before using. (For example, a SolidWorks file will be saved with the .htm or .html extension, the file extension must be changed back to .sldprt before using.)

Compatible with:

  • TC-720 OEM

    $514.00

    The TC-720 OEM is a basic version of the TC-720 controller that is a component for Orginal Equipment Manufacturers (OEM’s) that want to integrate the controller in a system where the display, keypad, and box are not needed. The TC-720 is a Heat & Cool (Bipolar) control controller, and all programming and monitoring functions are accomplished via the onboard USB communications port. The conroller is shipped as the basic control circuit mounted on an aluminum panel. One standard thermistor (model MP-3193) and a software CD are included. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2013 and higher) is available upon request and a sample read and write command programmed in Python is also available for download.

    Product DetailsQuick View
  • PS-12-8.4A

    $62.50

    A 12 volt DC, fixed-voltage power supply capable of delivering up to 8.4 amps of current. The power supply features a wide input voltage range; no manual selection necessary. One North-American standard power cord is attached and power cords for the UK, EU, and Italy can be purchased separately. When ordered in conjunction TE Technology coolers and temperature controllers the interconnection cables are included free of charge.

    Product DetailsQuick View
  • TC-36-25-RS232

    $476.00

    The TC-36-25 RS232 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors.  In addition, Windows-compatible software and an RS232 cable are provided for direct communication via the serial communication port. LabVIEW-based GUI available as a download, the LabVIEW source code is available free of charge upon request, and a sample read and write command programmed in Python is also available for download. The necessary hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller.

    Product DetailsQuick View
  • TC-48-20 OEM

    $198.00

    The TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request and a sample read and write command programmed in Python is also available for download.

    Product DetailsQuick View
  • TC-720

    $629.00

    The TC-720 is a bipolar, heat and cool, thermoelectric temperature controller with USB communications. It is capable of controlling up to 36 volts and 20 amps. One standard thermistor, model MP-3193, is included. A second sensor can be attached for monitoring and alarm purposes. The controller is housed in a die-cast aluminum box and incorporates a keypad and a liquid-crystal display. The display allows the user to monitor the sensor temperature, power output level, and menu settings. The integrated keypad accesses an easy-to-use menu system, allowing the user to adjust all of the basic controller parameters such as the set temperature, tuning parameters, and alarm parameters. The controller can also be connected to a computer via USB for more advanced program control as well as data graphing and data logging using the supplied software. The software is shipped as a stand-alone program, but the LabVIEW source code for that program (version 2013 and higher) is available upon request and a sample read and write command programmed in Python is also available for download.

    Product DetailsQuick View
  • TC-24-10

    $119.00

    The TC-24-10 is a RoHS compliant proportional-integral (PI) temperature controller developed for applications requiring a low cost, basic temperature controller. Set-point and tuning adjustments are made via potentiometer. It can modulate power from 9V up to 26 V at currents up to 10 A when using a single power supply. The controller can also modulate from 0 V up to 50 V when using two power supplies, making this a good choice for controlling low-voltage modules. As with all of our controllers, a standard temperature sensor (15K thermistor) is included. When it is ordered with a thermoelectric cooling assembly and a power supply, the necessary hook-up cables are also included.

    Product DetailsQuick View
  • TC-48-20

    $314.00

    The TC-48-20 is an easy to use yet powerful cool-only or heat-only PWM temperature controller. It is housed in a die-cast aluinum box, incorporates a keypad and display, and is capable of controlling from 0 to 50 volts and up to 20 amps. Two versatile alarm outputs are included, each capable of switching up to 1 amp of current. If a true linear-output control system is desired (for applications extremely sensitive to electrical noise) the TC-48-20 can be used as the control head for high-power, variable-output linear supplies. Most control parameters can be programmed via the built-in keypad, but the controller can also be connected to a computer via an optional RS232 serial cable for more advanced program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request and a sample read and write command programmed in Python is also available for download.

    Product DetailsQuick View
  • TC-36-25-RS485

    $459.00

    The TC-36-25 RS485 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. Multiple controllers can be daisy-chained together and run off a single communication port using the optional RS485 Adapter (USB). Windows-compatible software is provided for easily programming the controller.  Hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller. The LabVIEW-based software is shipped as a stand-alone program, the LabVIEW source code (version 2011 and higher) is available free of charge upon request, and a sample read and write command programmed in Python is also available for download.

    Product DetailsQuick View
