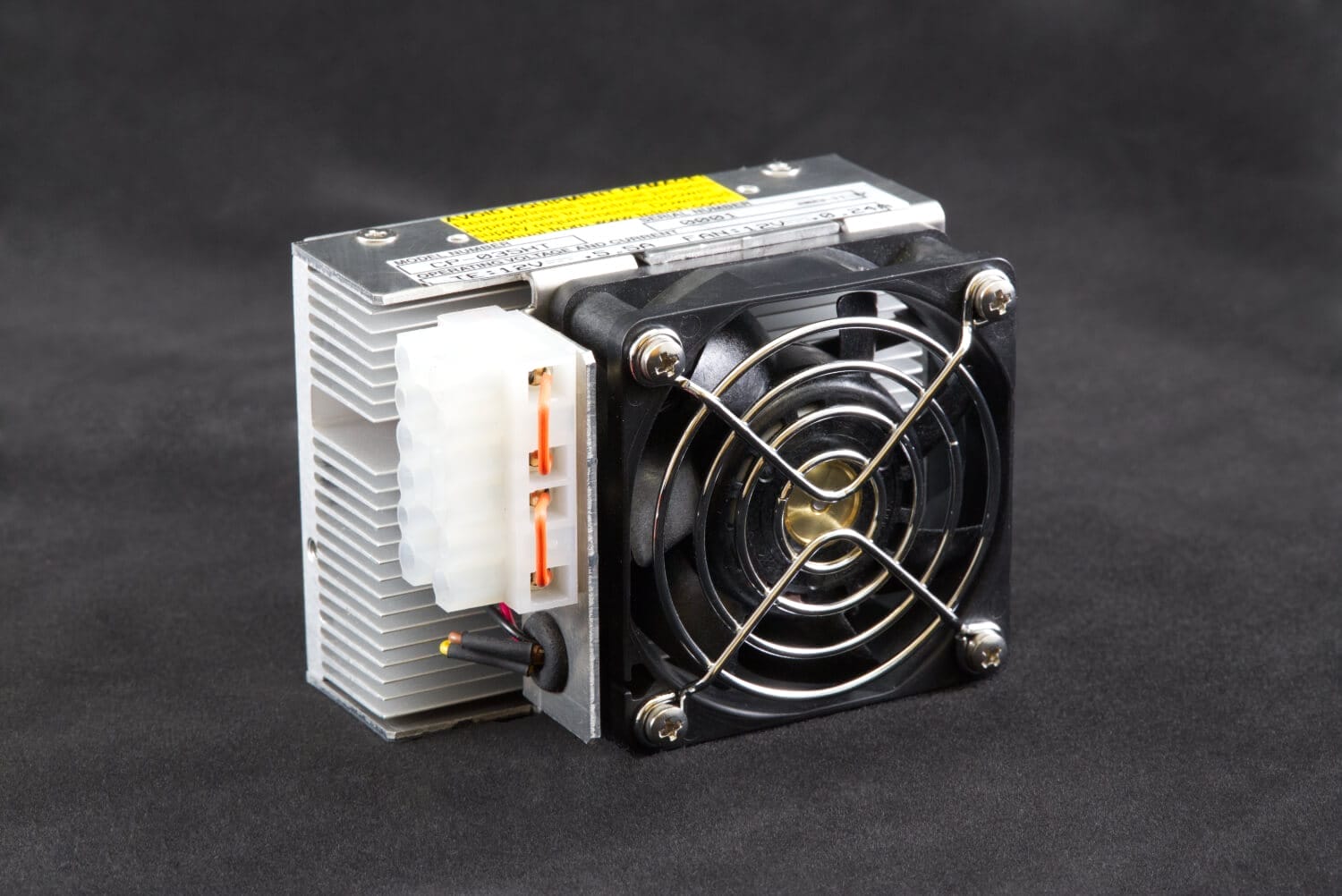

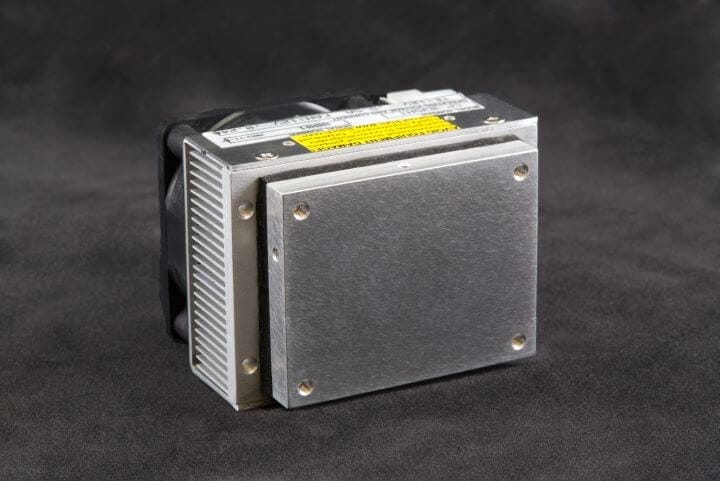

CP-035HT cold plate cooler

CP-035HT

Capacity Rating: 35 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides very good cooling capacity with a small form factor. Narrow heat sink is only 63 mm wide. Powered by 12 VDC and compatible with all of our temperature controllers. Combined with a bipolar temperature controller, it can also be used for heating up to 100 °C. An optional bracket is available for converting to bench-top use.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $199
10 - 49 $195
50 - 99 $189
Add to quote
SKU: 4081-1 Category:

Capacity Rating: 35 watts at a 0°C temperature difference.
Example Applications: Laboratory and medical instruments.
Features: Provides very good cooling capacity with a small form factor. Narrow heat sink is only 63 mm wide. Powered by 12 VDC and compatible with all of our temperature controllers. Combined with a bipolar temperature controller, it can also be used for heating up to 100 °C. An optional bracket (shown in some pictures above) is available for converting to bench-top use. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

  • Narrow 63 mm width for space-limited applications.
  • Low thermal mass reduces cool-down time.
  • Can also be used for heating (100 °C maximum plate temperature; heat/cool “bipolar” temperature controller required).
  • Effective direct-contact cooling for small heat loads at low temperatures.
  • Highly efficient heat sink for compact size and low power consumption.
  • Compatible with a wide range of temperature controllers.
  • Threaded holes in cold plate for attachment of a temperature sensor, interface plate, or object to be cooled.

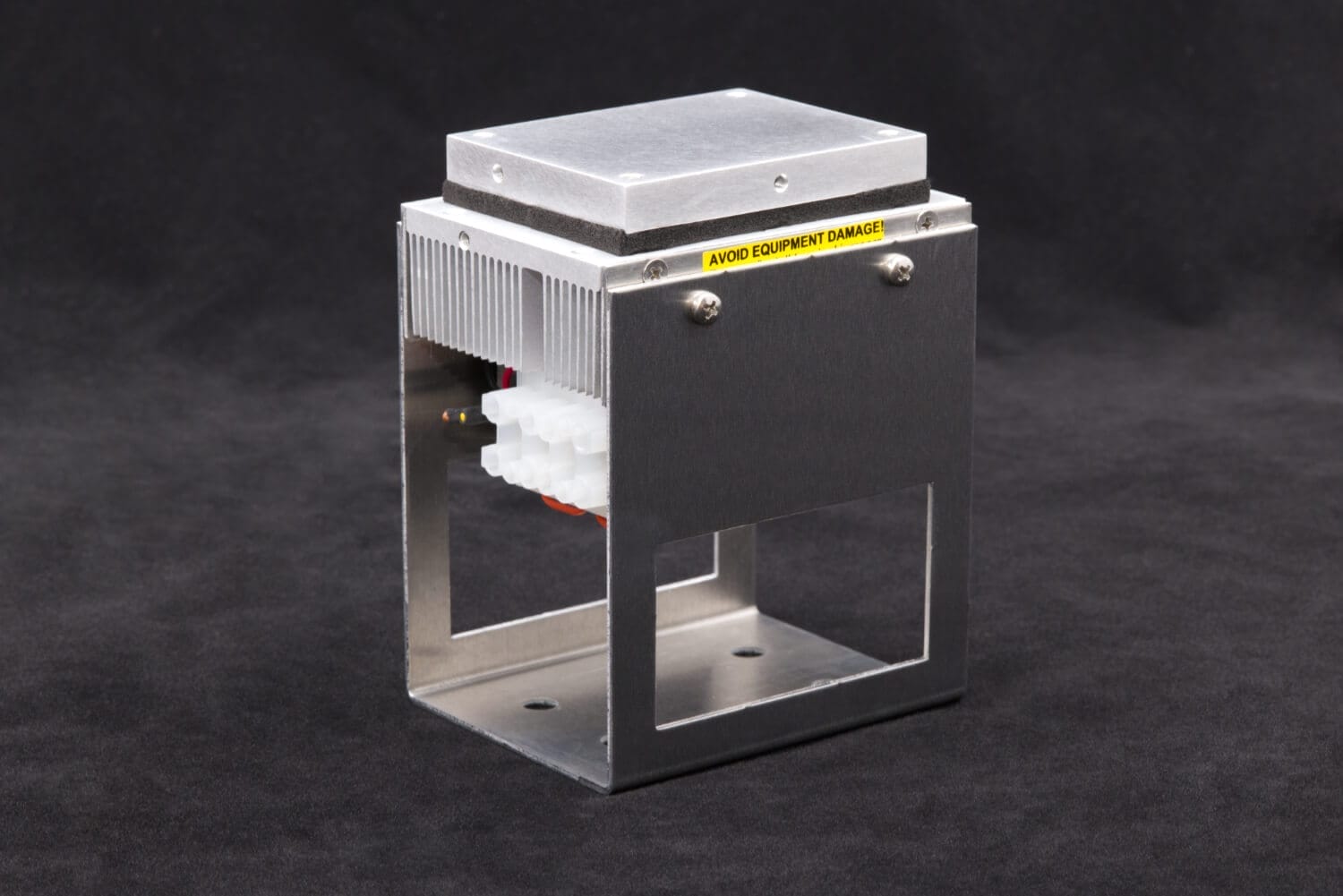

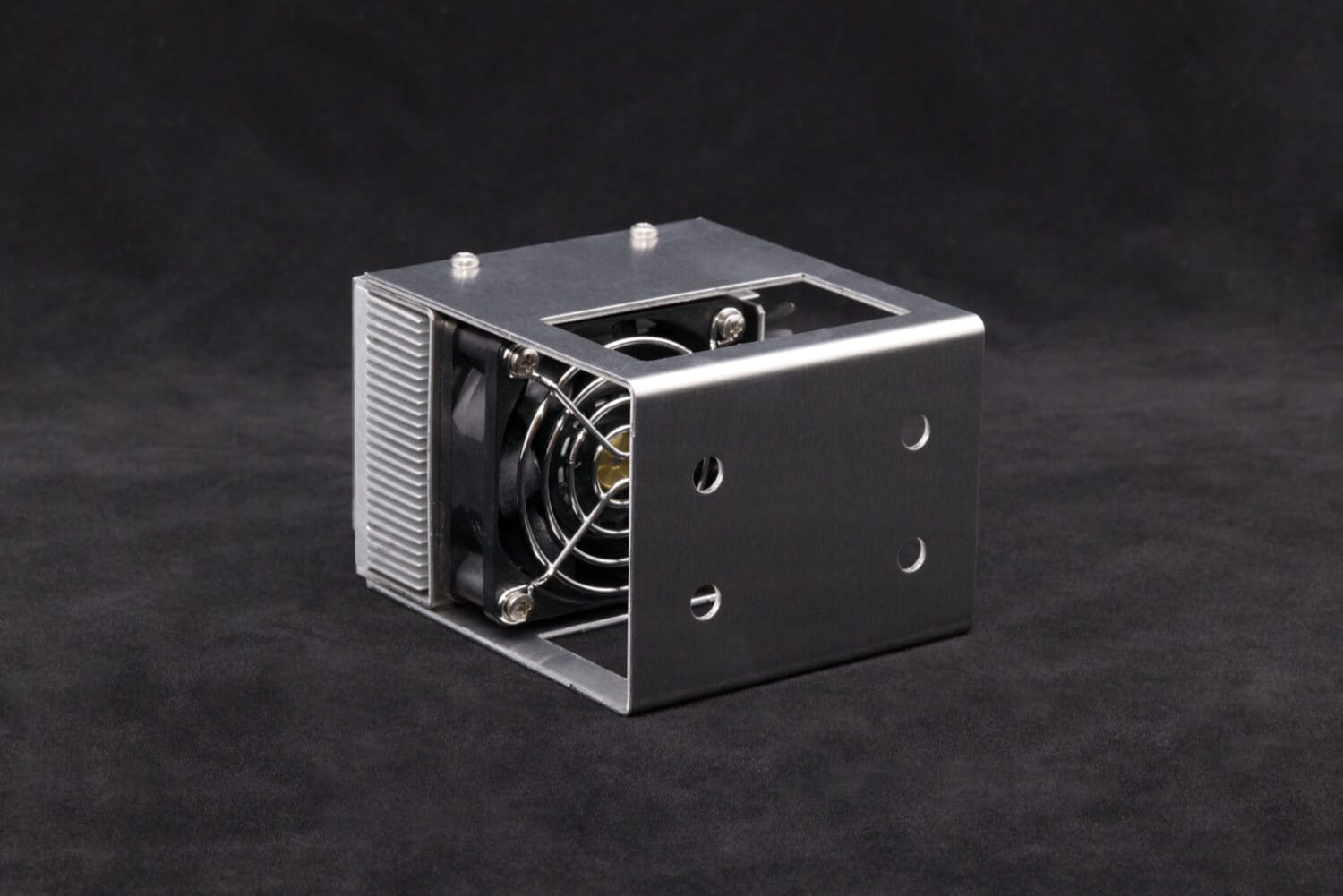

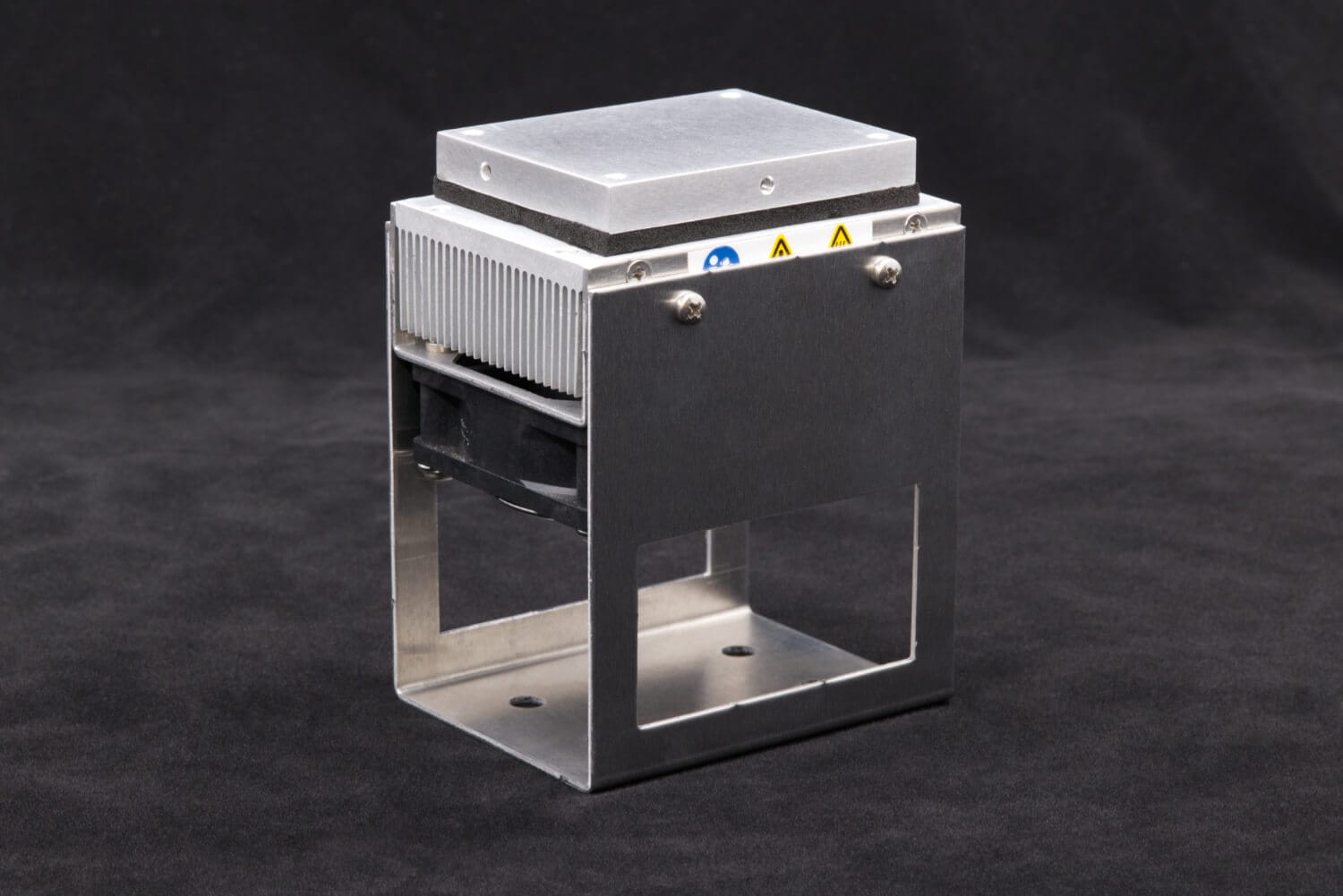

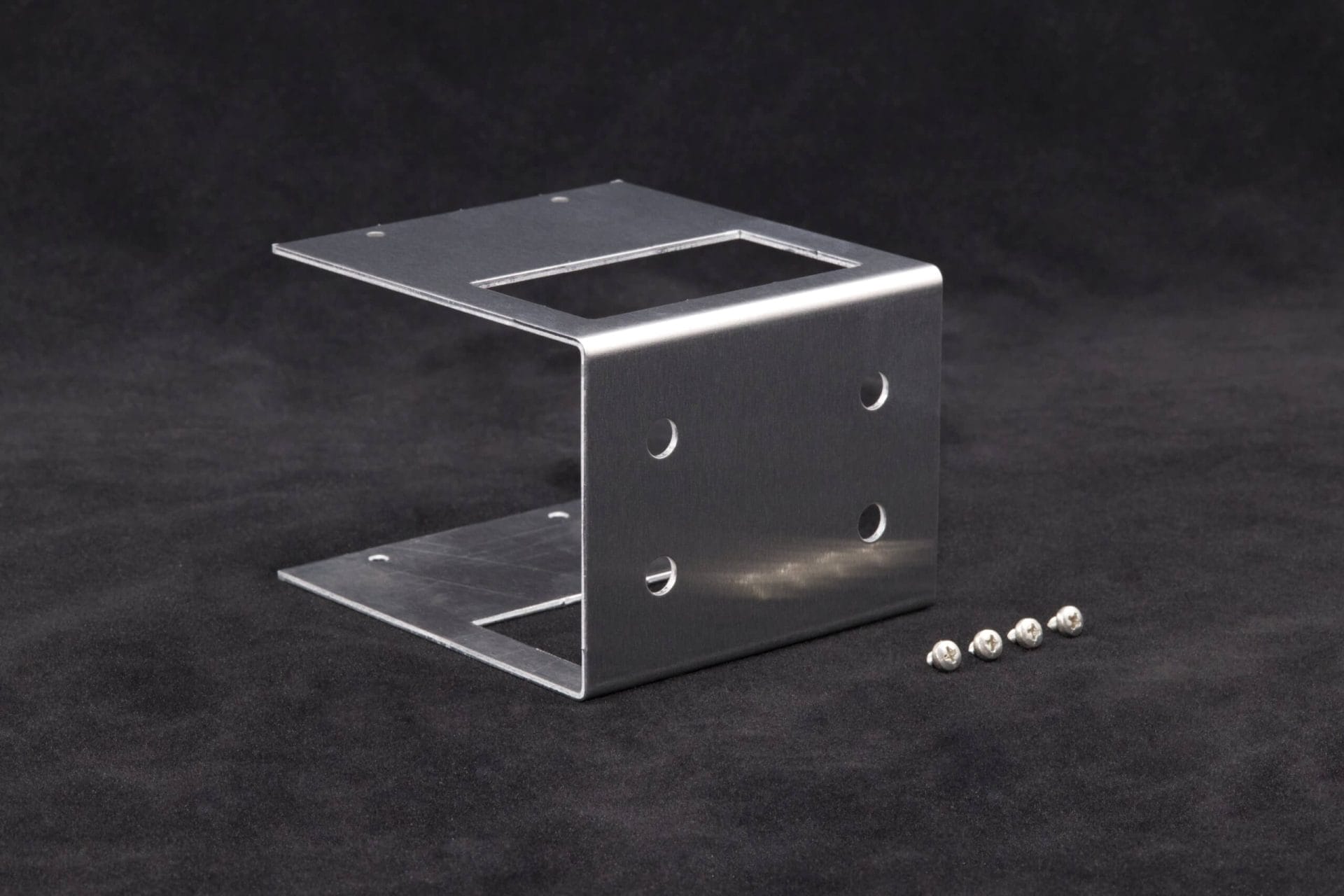

  • Available optional bracket for converting to bench-top use.
  • Mounting holes located in face of heat sink and sides provide additional options for mounting.
  • Product is CE marked and is RoHS compliant.

CP-035HT Data Sheet (PDF Format) pdf-icon

CP-035HT Data Sheet (HTML Format)

Standard Coolers and Temperature Controllers Catalog

3Dpdf-icon CP-035HT 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

3D Solid Models
Parasolid: CP-035HT.x_t (best for importing into SolidWorks)
See note below before downloading files.
STEP: CP-035HT.stp
See note below before downloading files.

NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension or open it as a text file. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t or .stp before using.
