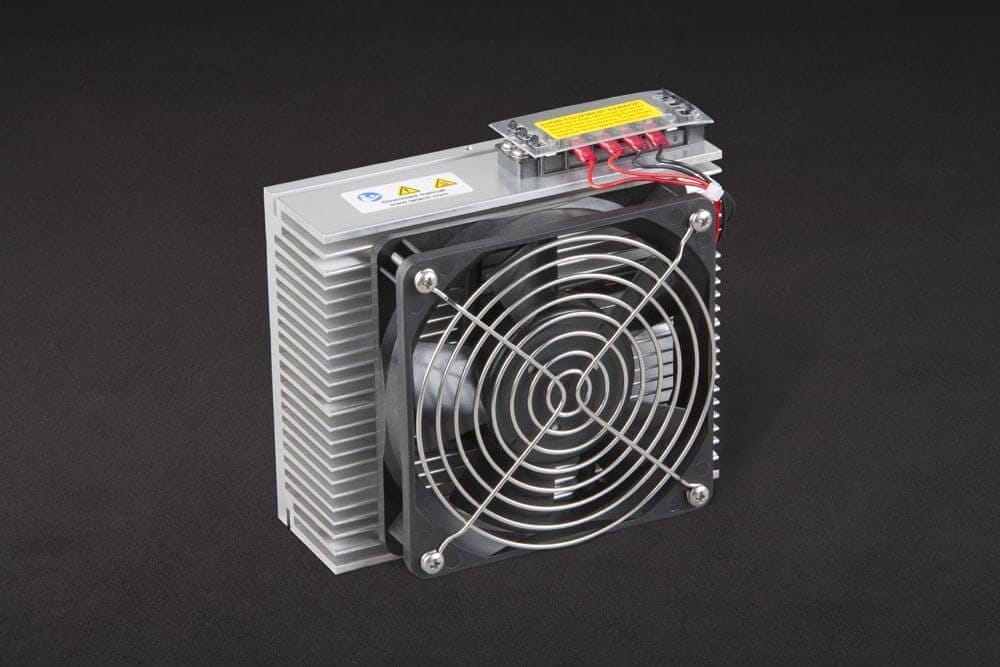

CP-036

Capacity Rating: 34 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides good cooling for small heat loads at low temperatures. This is made possible by using a large heat sink for only one thermoelectric module and an extender block that allows extra insulation between the heat sink and cold plate. Can be used for heating and cooling. Powered by 12 VDC, its low power consumption makes it compatible with all of our temperature controllers.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $244
10 - 49 $237
50 - 99 $208
100 - 249 $201
SKU: 4080 Category:

Capacity Rating: 34 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides good cooling for small heat loads at low temperatures. This is made possible by using a large heat sink for only one thermoelectric module and an extender block that allows extra insulation between the heat sink and cold plate. Can be used for heating and cooling. Powered by 12 VDC, its low power consumption makes it compatible with all of our temperature controllers. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

• Effective direct cooling.
• Can also be used for heating (70 °C maximum plate temperature, heat/cool “bipolar” temperature controller required)
• Compact design for space sensitive applications.
• Terminal block included for convenient wire attachment.
• Tapped holes in cold plate for easy attachment of object to be cooled.
• Ideal for precise temperature control applications.

Provides good cooling for small heat loads at low temperatures. This is made possible by using a large heat sink for only one thermoelectric module and an extender block that allows extra insulation between the heat sink and cold plate. Powered by 12 VDC, its low power consumption makes it compatible with all of our temperature controllers.

Product is CE marked and is RoHS compliant.

CP-036 Data Sheet (PDF Format) pdf-icon

CP-036 Data Sheet (HTML Format)

Standard Coolers and Temperature Controllers Catalog

3Dpdf-icon CP-036 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

3D Solid Models
Parasolid: CP-036.x_t (best for importing into SolidWorks)
See note below before downloading files.
STEP: CP-036.stp
See note below before downloading files.

NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension or open it as a text file. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t or .stp before using.
