CP-121HT

Capacity Rating: 126 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Four-module cold plate increases the heat-pumping capacity for cooling medium to large heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used with one LC-SSX1 liquid exchanger. Can be used for cooling and heating up to 100 °C (bi-polar controller required). This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $598
10 - 49 $583
50 - 99 $568
100 - 249 $554
SKU: 4116 Category:

Capacity Rating: 126 watts at a 0 °C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Four-module cold plate increases the heat-pumping capacity for cooling medium to large heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used with one LC-SSX1 liquid exchanger. Can be used for cooling and heating up to 100 °C with when used with a bipolar controller. This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

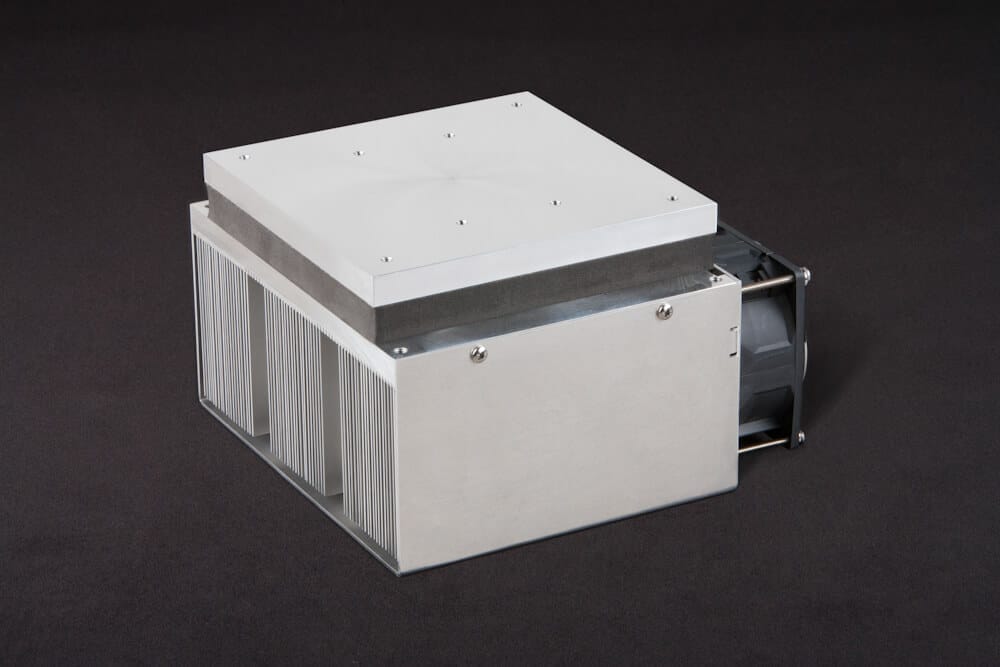

A four-module cold plate for cooling medium to large heat loads.   Provides effective direct-contact cooling or heating (up to 100 °C) which is ideal for precision temperature control.

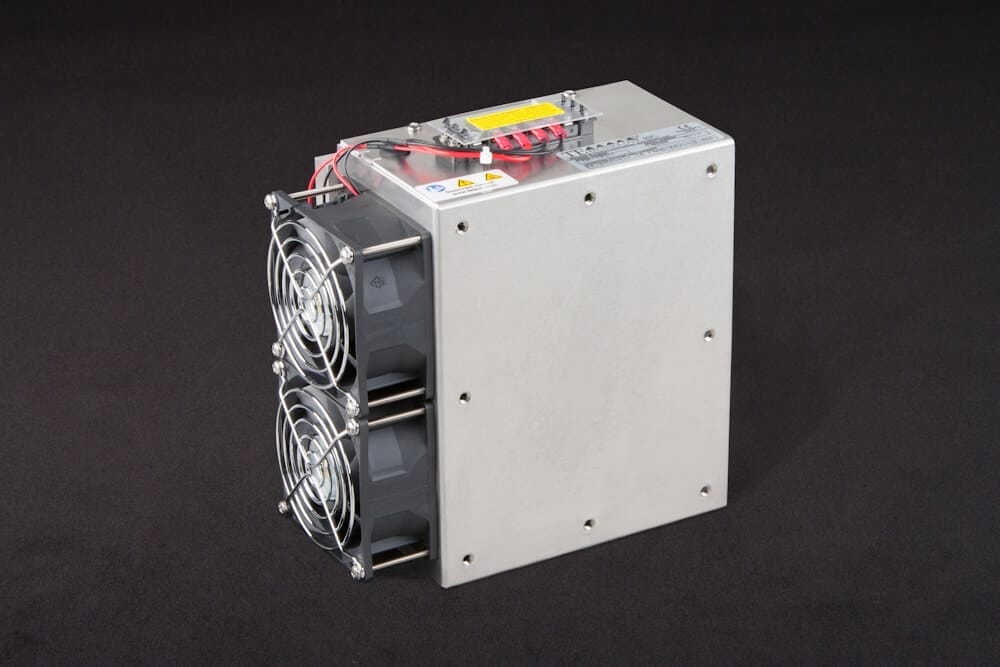

This cooler uses two fans in parallel to push air through the length of the fins. This gives a different option for routing air flow as compared to a more standard configuration where air is blown onto the top middle of the fins and is exhausted at the ends of the fins. The fan configuration also reduces stack height in the system and means the cooler can be placed directly on a bench top without restricting air flow. The fans were selected to give good performance while being as quiet as possible–good for people who have to work next to the cooler as it is operating.

Like all of our coolers, it can be easily customized for OEM users to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera.

• Heat sink air travels along the length of fins (in one end, out opposite end).
• Low fan noise is beneficial in laboratory instrumentation (two fans; each rated at 39 dBA each).

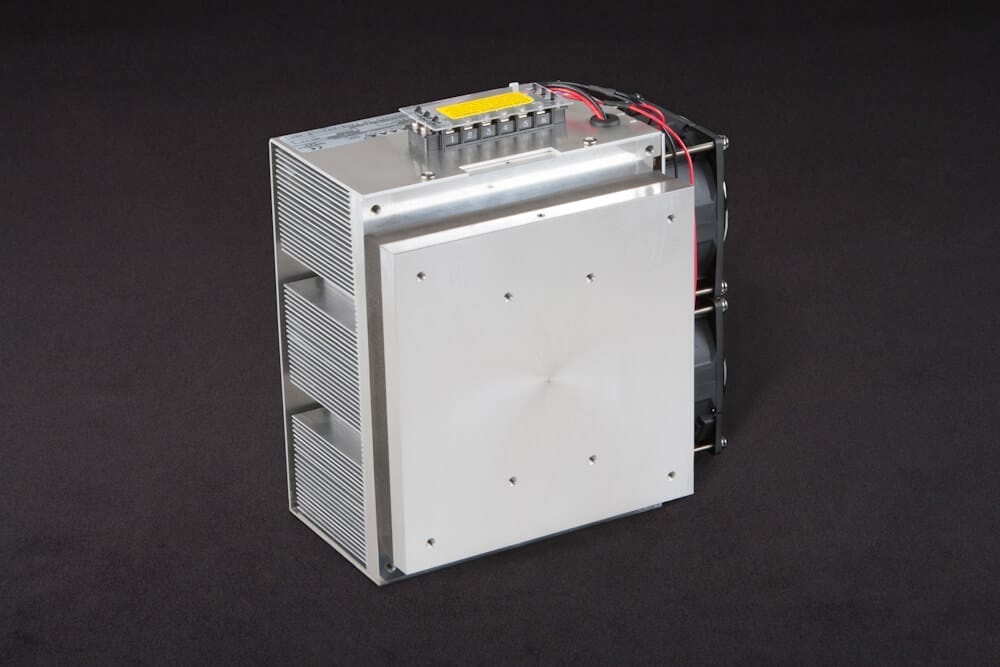

• Tapped holes in cold plate for easy attachment of object to be cooled.
• No additional modifications needed for bench-top use.
• Ideal for medium to large heat loads, such as laser diodes, thermal stabilization of electronic components, and medical/laboratory instruments.
• Provides effective direct-contact cooling which is ideal for precision temperature control.
• Can be used for heating (100 °C maximum plate temperature, heat/cool “bipolar” temperature controller required)
• Threaded holes are located in cold plate for easy attachment of a temperature sensor, interface plate, LC-SSX1 liquid exchanger, or other object.
• High-temperature versions and other customizations are available for OEM users upon request.
• CE marked, RoHS compliant

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

CP-121 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties of the product. (However, wire leads are not shown in the model.) This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

NOTE WHEN SAVING FILES: When downloading a solid model some browsers may change the name of the extension. You must save the file to your computer using the “Save as” option and rename the extension back to the appropriate type before using. (For example, a SolidWorks file will be saved with the .htm or .html extension, the file extension must be changed back to .sldprt before using.)
