A 24 volt DC, fixed-voltage power supply capable of delivering up to 13 amps of current. One North-American standard power cord is supplied attached to the power supply, and power cords for the UK, EU, and Italy can be purchased separately. The power supply features a wide input voltage range; no manual selection necessary. When ordered in conjunction with TE Technology coolers and temperature controllers interconnection cables are included free of charge.
Search Products
PS-24-13

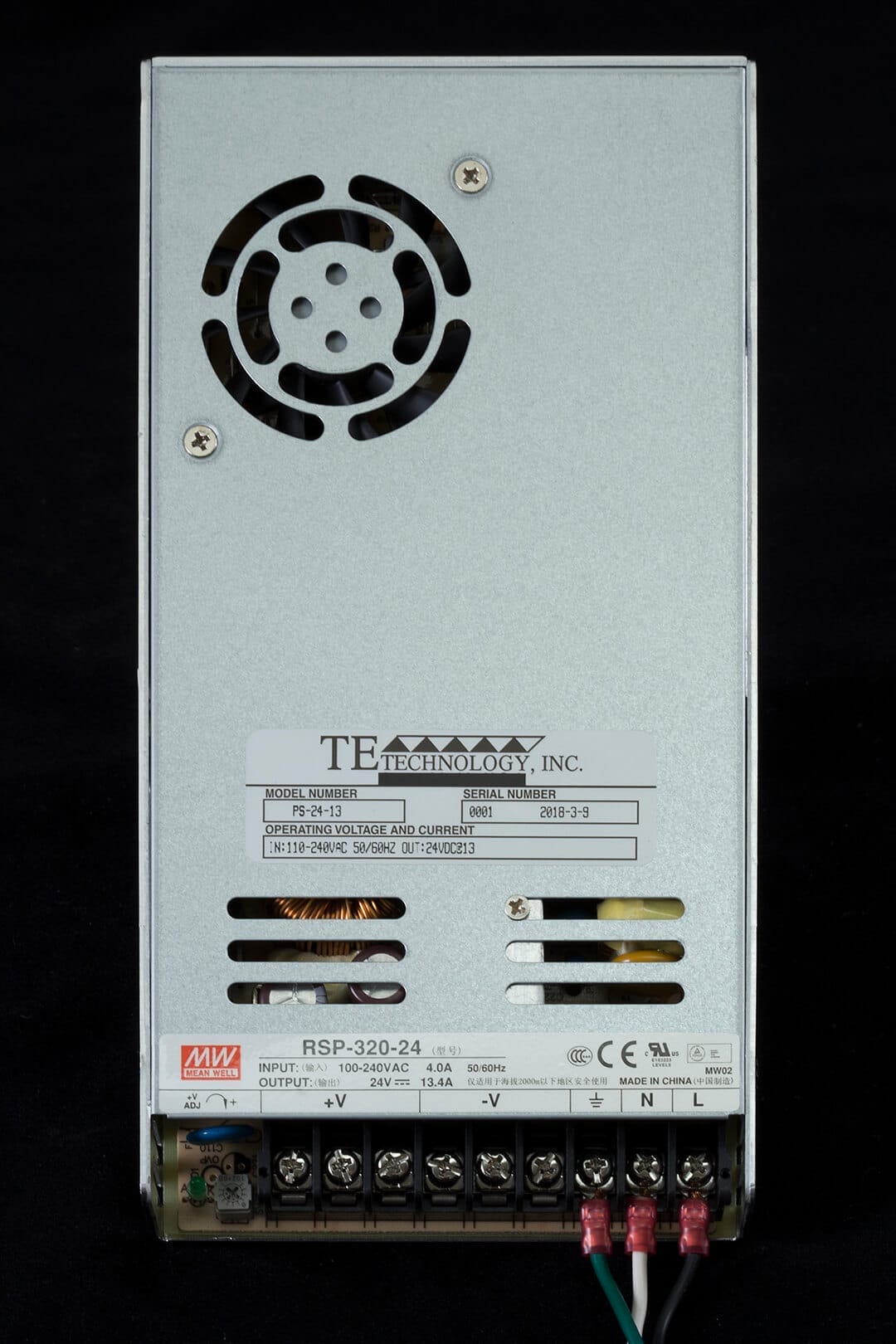

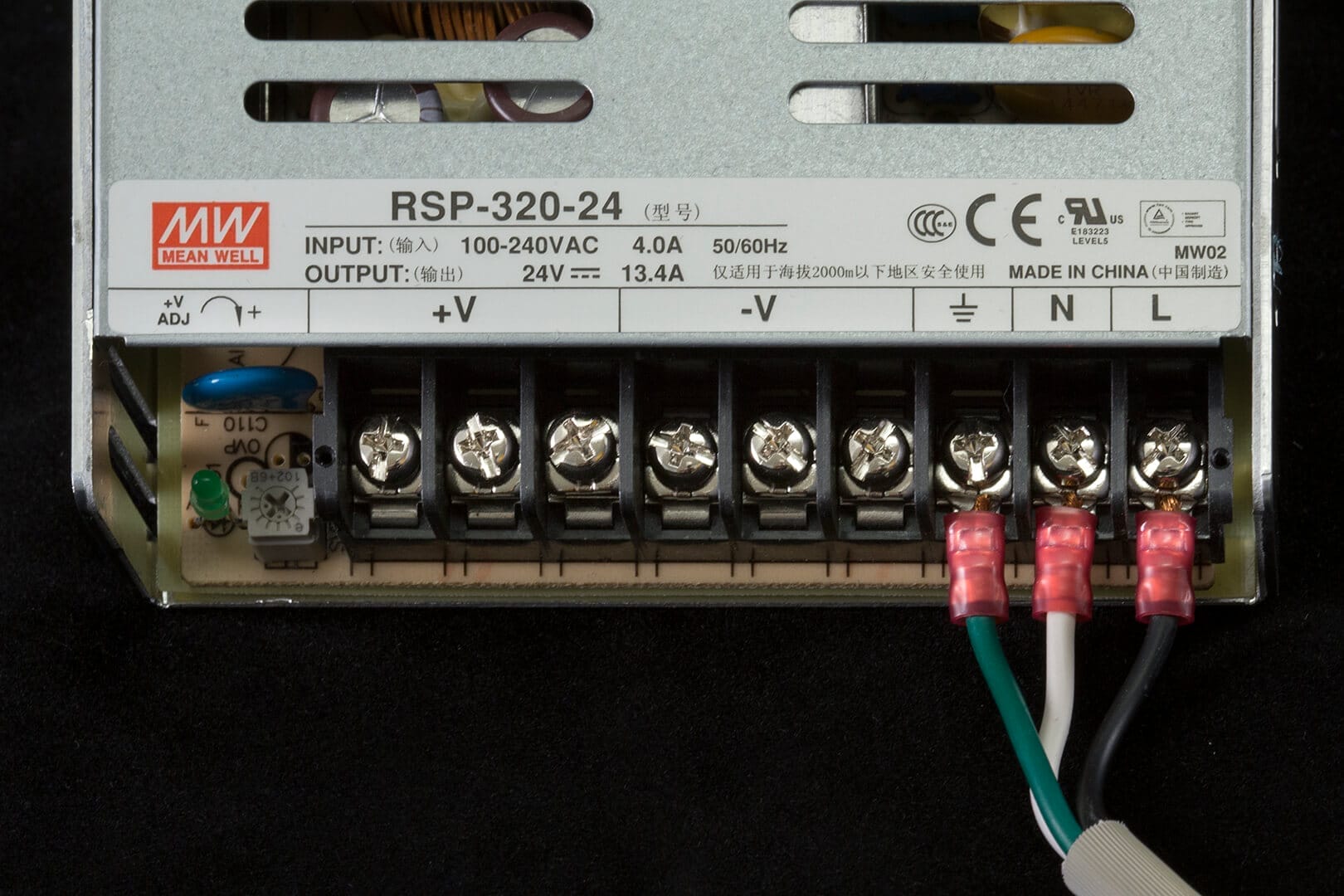

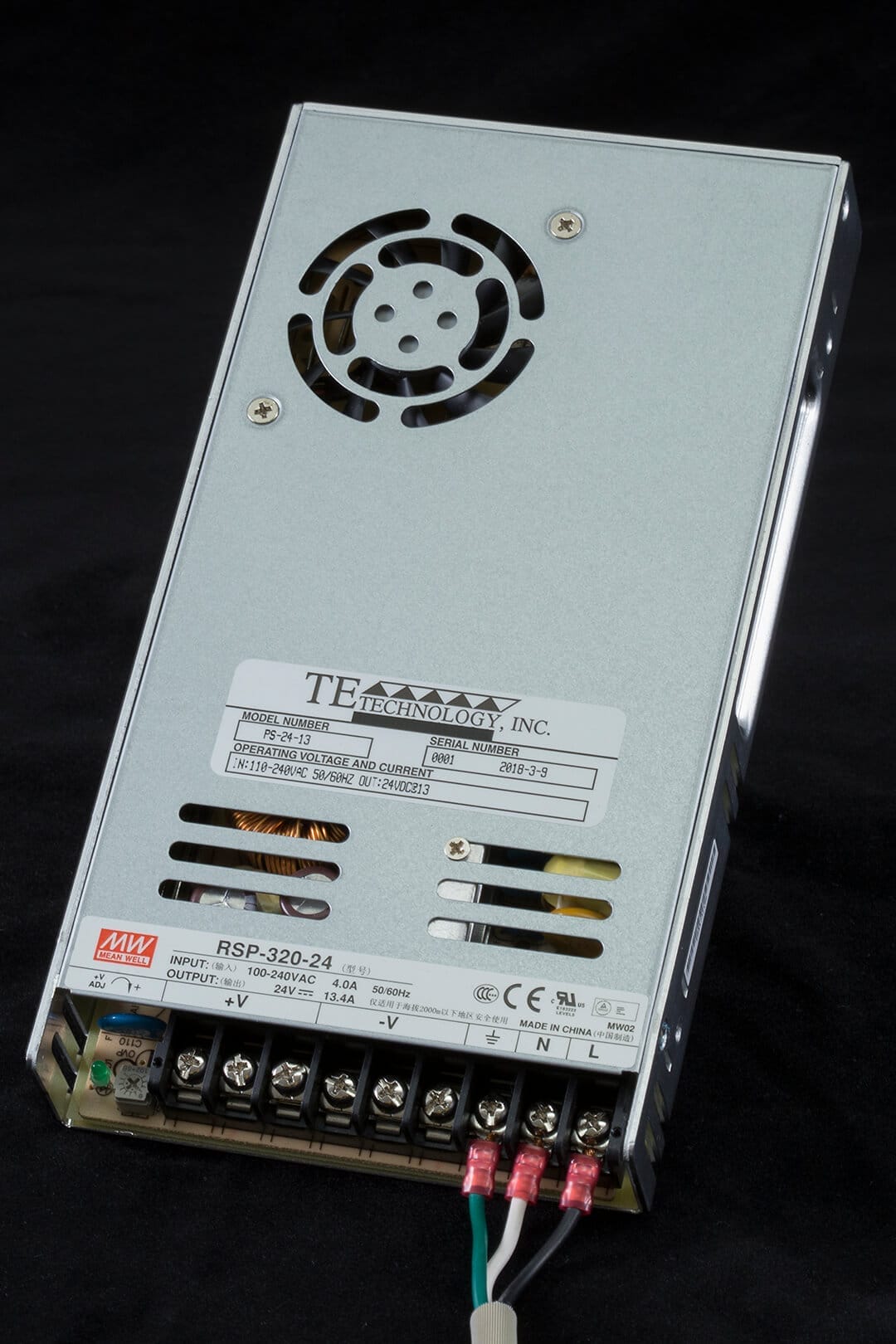

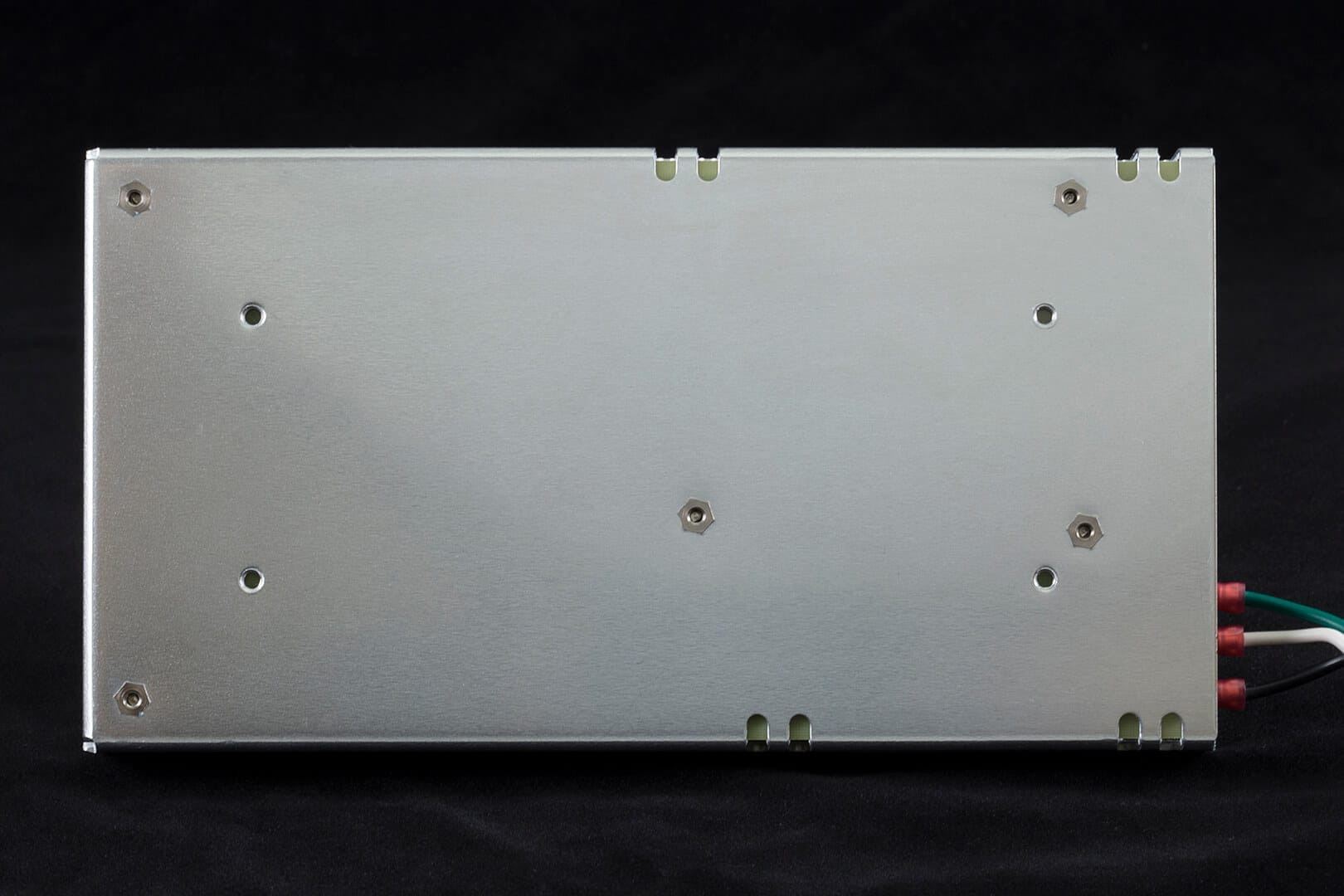

A 24 volt DC, fixed-voltage power supply capable of delivering up to 13 amps of current. Power supply is pictured with the included power cord attached. One North-American standard power cord is supplied attached to the power supply, and power cords for the UK, EU, and Italy can be purchased separately. When ordered in conjunction with TE Technology coolers and temperature controllers interconnection cables are included free of charge.
In Stock
A 24 volt DC, fixed-voltage power supply capable of delivering up to 13 amps of current. Power supply is pictured with the included power cord attached. The power supply features a wide input voltage range; no manual selection necessary. One North-American standard power cord is supplied attached to the power supply, and power cords for the UK, EU, and Italy can be purchased separately. When ordered in conjunction with TE Technology coolers and temperature controllers interconnection cables are included free of charge.
Features:
RoHS compliant.
Input Voltage: 88-264 VAC, 47-63 Hz
Input Voltage Range Selection: No selection required, continuous within range.
Power Factor Correction: Yes
Efficiency: 89% typical
Output Voltage: 24 V DC nominal, adjustable between 20 – 26.4 via potentiometer
Maximum Output Current: 13 A
Over-Current Protection: Yes, 105~135% rated output power, automatic recovery.
Dimensions: 215 x 115 x 30 mm
Cooling: Fan cooled, fan speed regulated via internal temperature sensor
Maximum ambient: 70 degrees Celsius. For ambient temperatures above 50 degrees Celsius, derate output current by 2.5% per degree Celsius (50% at 70 degrees Celsius). For operation below 100 VAC, derate by 2.09% per volt (75% maximum output at 88 VAC input).
PS-24-13 Data Sheet
(Data sheet is for base power supply only; power cord not shown.)
3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties of the product. This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.
NOTE WHEN SAVING FILES: When downloading a solid model some browsers may change the name of the extension. You must save the file to your computer using the “Save as” option and rename the extension back to the appropriate type before using. (For example, a STEP file will be saved with the .htm or .html extension, the file extension must be changed back to .stp before using.)
You may also like…
-

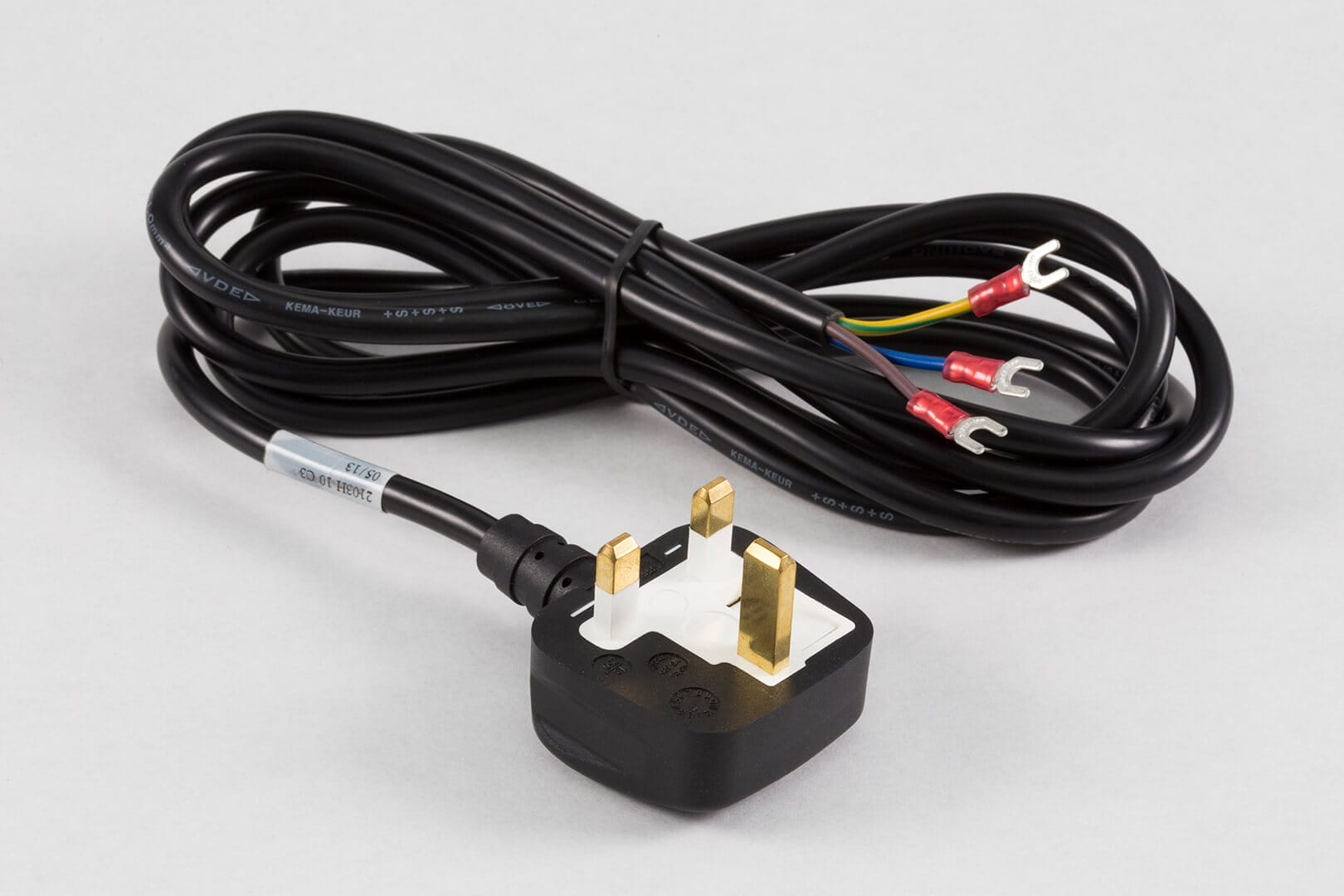

PS-AC CORD-UK
Replacement power cord for power supply, UK plug. Details and Wiring Instructions
-

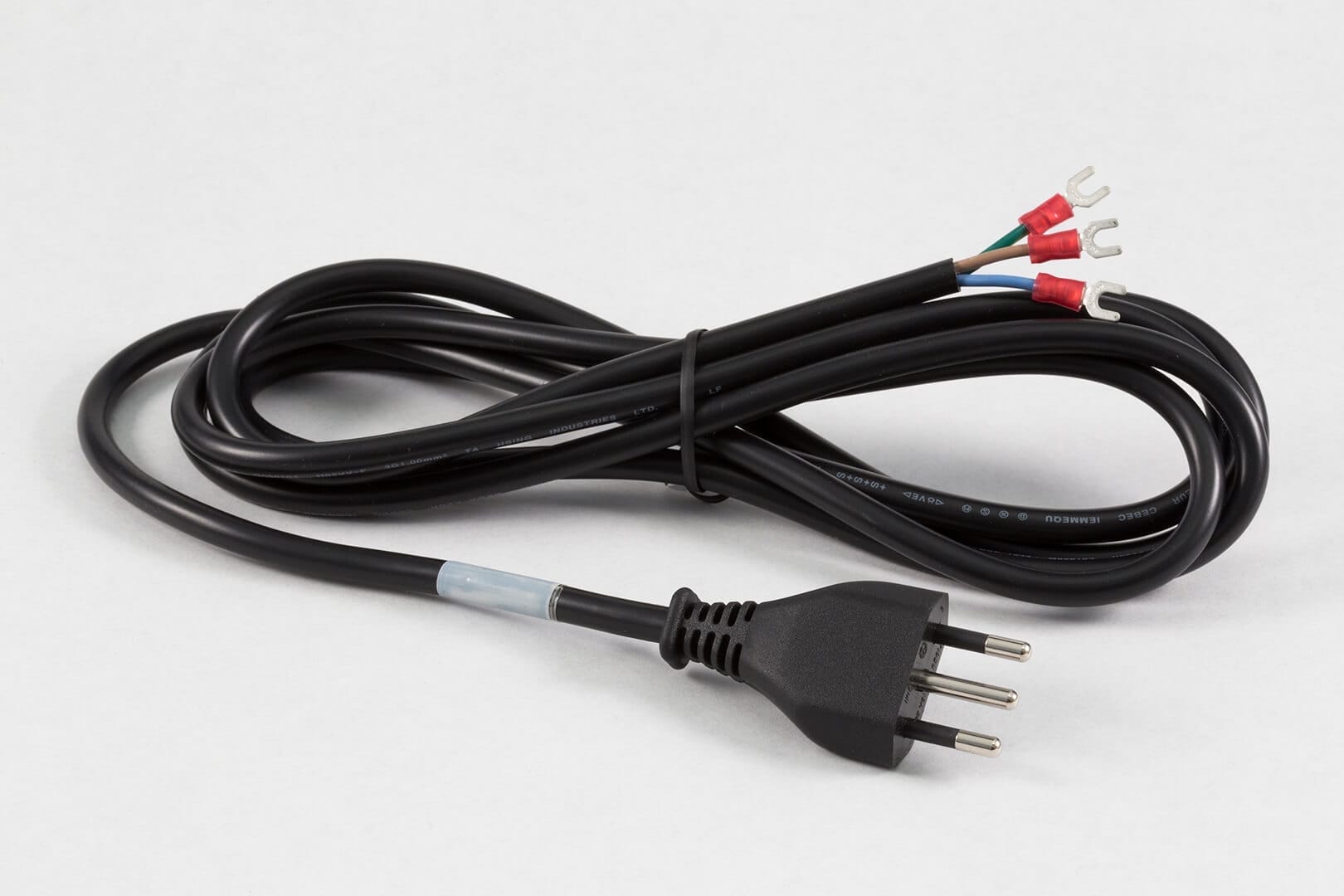

PS-AC CORD-ITALY
Replacement power cord for power supply, EU plug.
-

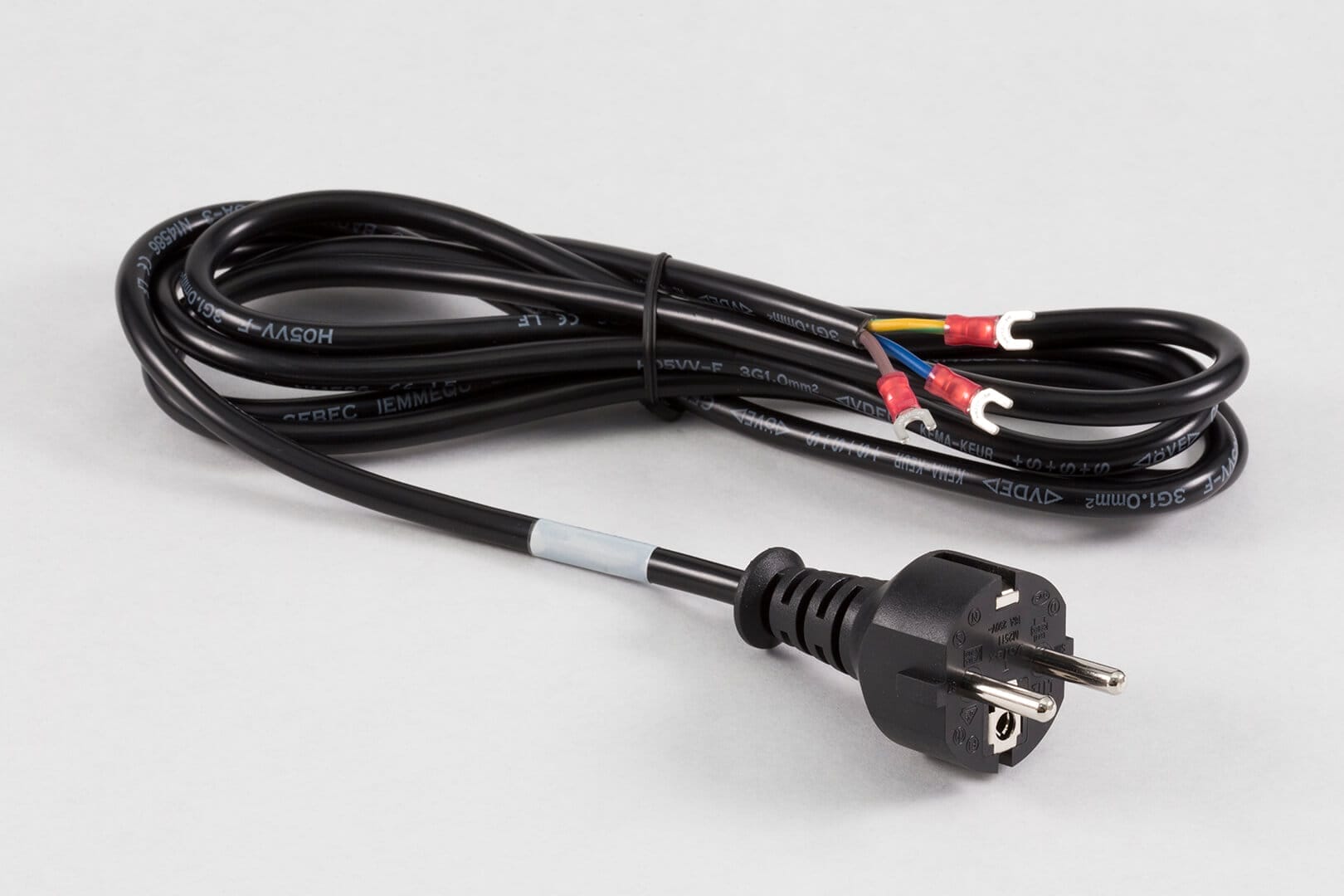

PS-AC CORD-EU
Replacement power cord for power supply, EU plug. Details and Wiring Instructions
-

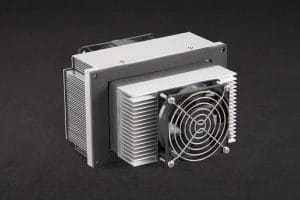

AC-073
