LC-SSX1

Typically attached to our standard cold plate coolers to make a liquid cooler with a 316 stainless steel (SS) liquid path. The LC-SSX1 is a heat sink / passive exchanger only; and the capacity of system will vary depending on the cold plate cooler to which it is attached. Used alone it has a 0.033 K/W thermal resistance at a 25 °C, 1.6 L/minute water flow rate. Useful for laboratory instruments, laser diode cooling, medical products, recirculating chillers, or temperature baths utilizing high purity or corrosive liquids.

SKU: 4300. Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $119
10 - 49 $112
50 - 99 $108
100 - 249 $98

Typically attached to our standard cold plate coolers to make a liquid cooler with a 316 stainless steel (SS) liquid path. The LC-SSX1 is a heat sink / passive exchanger only; and the capacity of system will vary depending on the cold plate cooler to which it is attached. Used alone it has a 0.033 K/W thermal resistance at a 25 °C, 1.6 L/minute water flow rate. Useful for laboratory instruments, laser diode cooling, medical products, recirculating chillers, or temperature baths utilizing high purity or corrosive liquids.

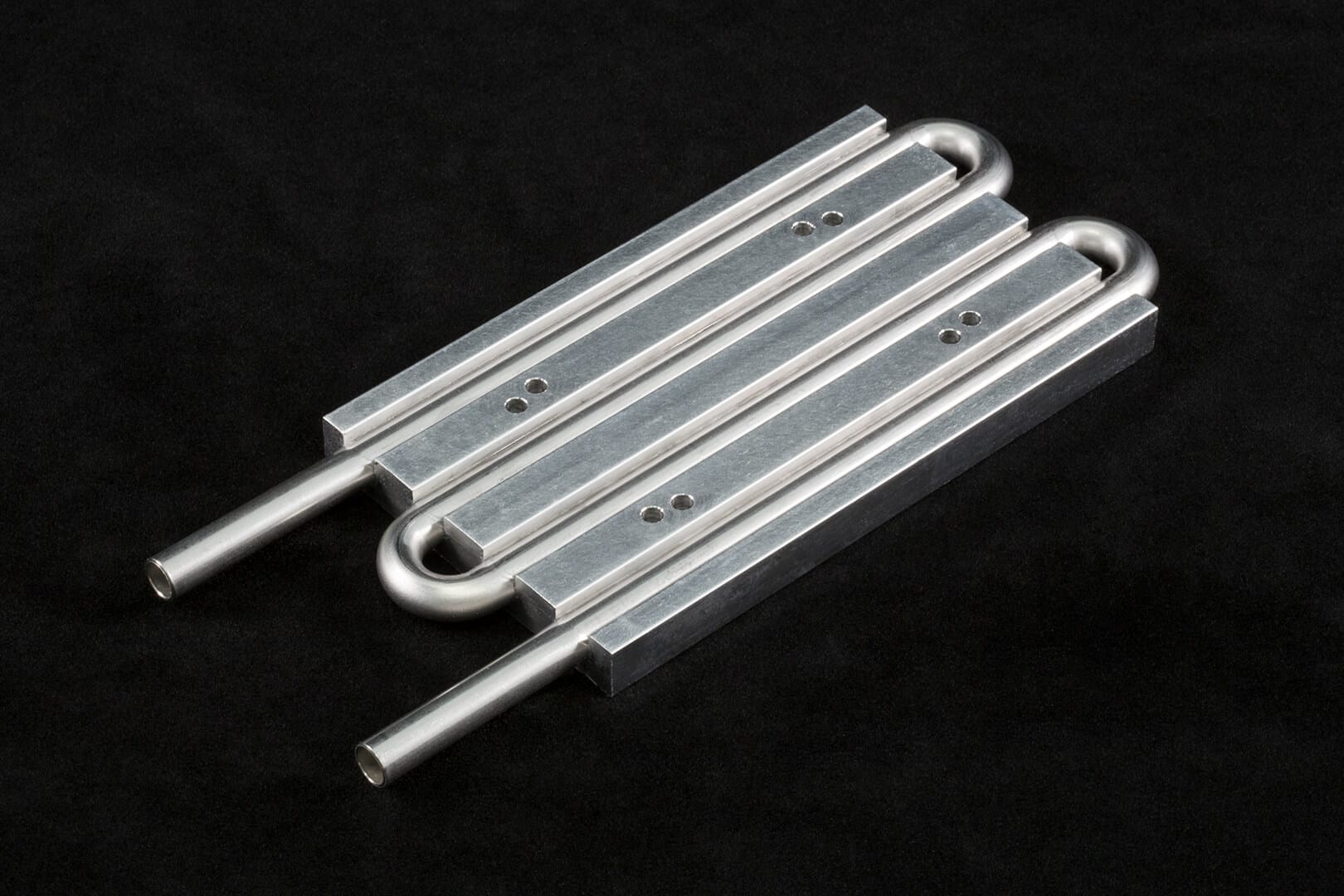

The combination of a cold plate and one or two of the LC-SSX1 exchangers makes a liquid cooler that is capable of being used with high purity or corrosive fluids.  These systems can also be used for condensing vapors from gas streams where the condensate is corrosive.  The LC-SSX1 is a single piece of stainless steel tubing looped and then embedded in an aluminum base plate.  This heat exchanger is designed to be attached to the CP-061, CP-065, CP-110, CP-121, and CP-200 series cold plate coolers.

• 316L stainless steel tubing is ideal for many types of liquids which are otherwise not compatible with anodized aluminum or copper.

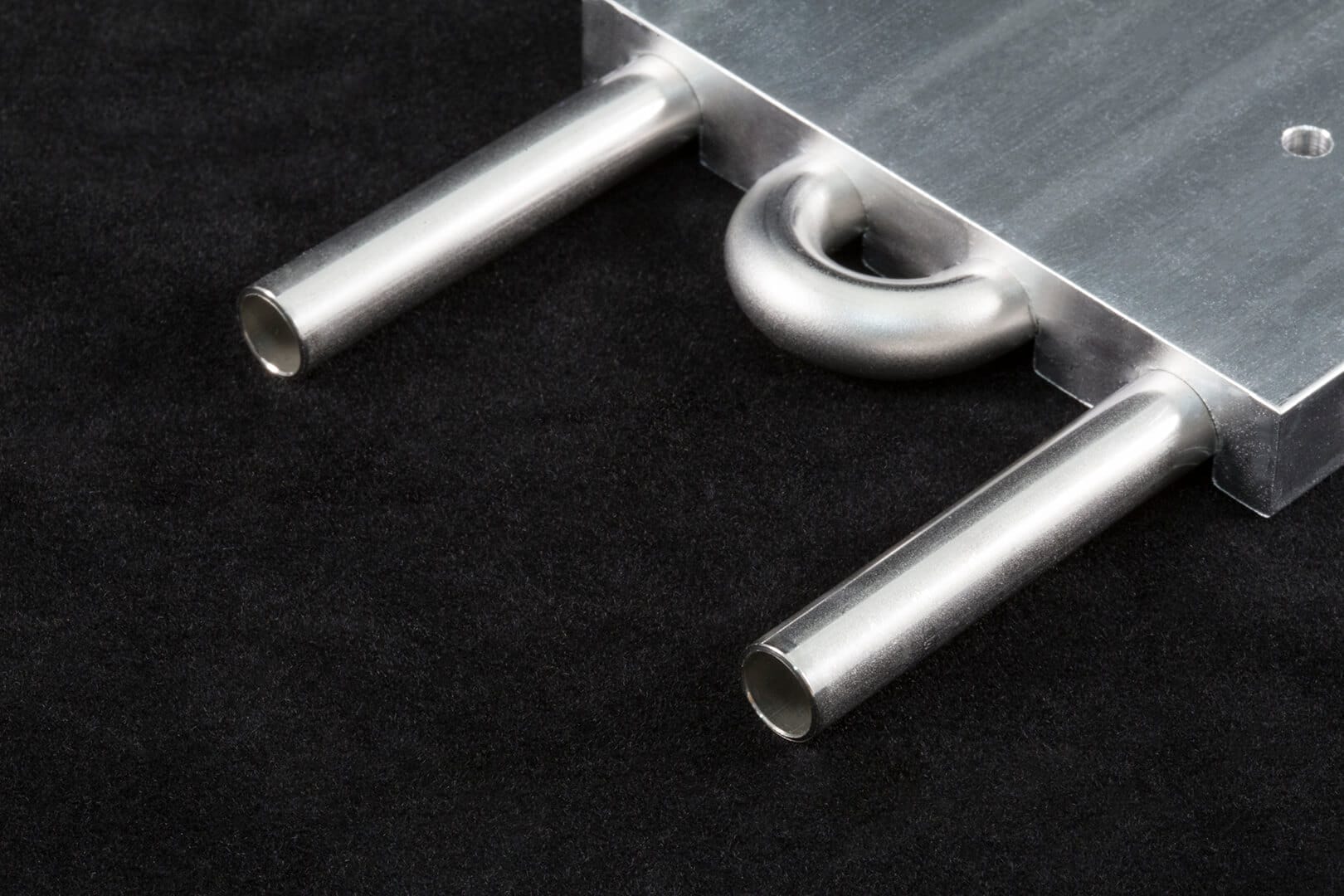

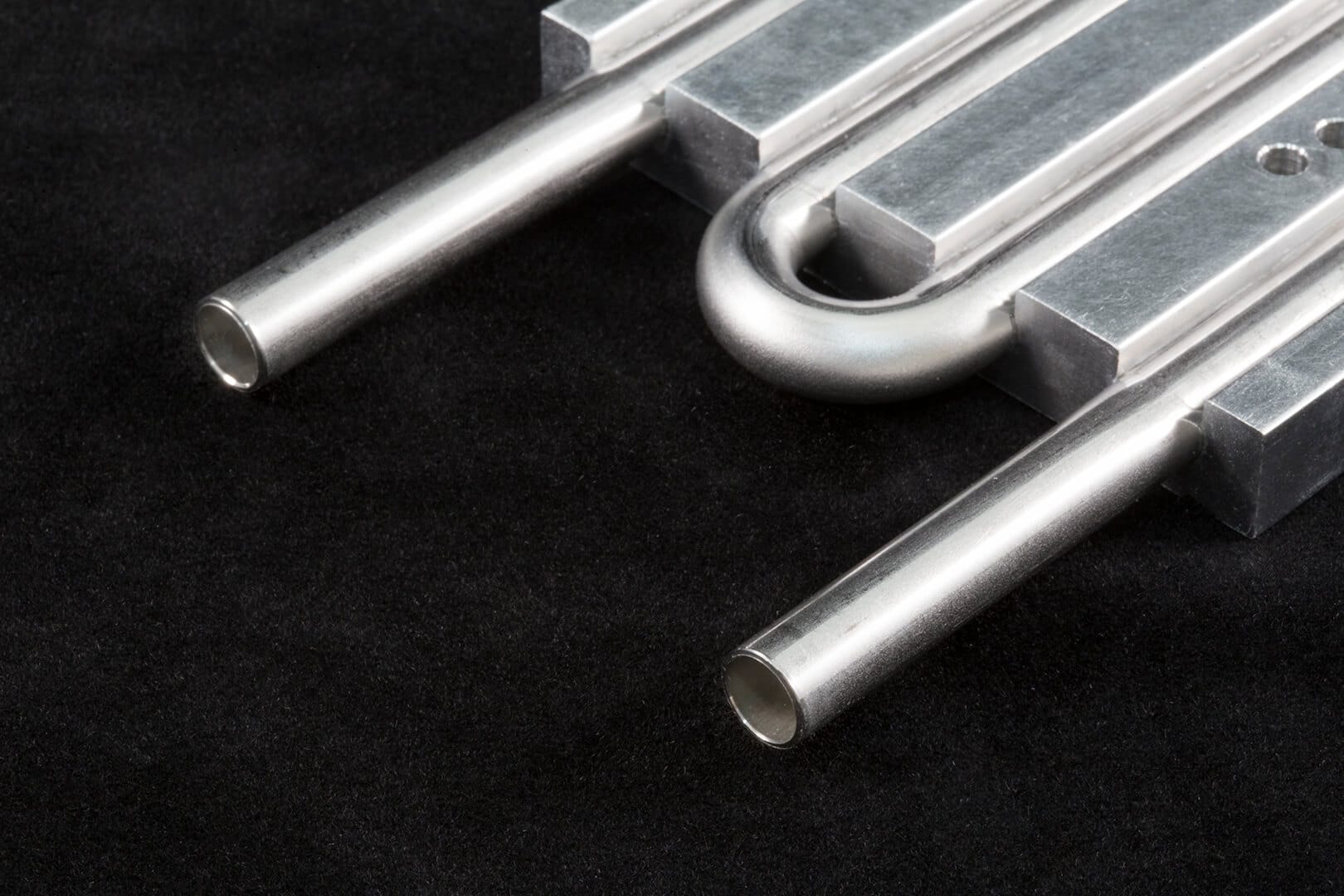

• Tube ends are straight 3/8 inch (9.5 mm) outer diameter for use with common compression fittings.

• Heat exchanger provides a four-pass liquid loop.

• Base plate has through-holes that align with mating threaded holes in many of our standard cold plates, allowing for easy attachment.

• Ideal for laser diode coolers, temperature baths, small vapor condensers, recirculating water chillers or in-process fluid cooling.

CP-200_with_two_LC-SSX1

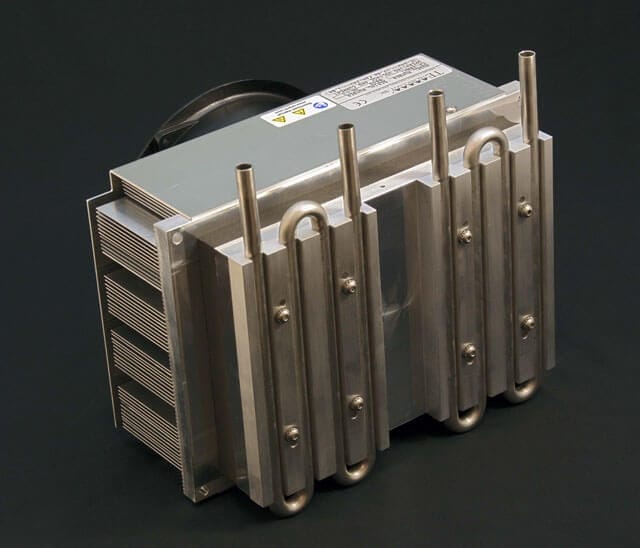

Two LC-SSX1 liquid exchangers shown mounted to a CP-200 cold plate cooler.  The cold plate coolers are sold separately  and the LC-SSX1 exchangers are sold individually.  The LC-SSX1 exchanger can be mounted to other cold plate coolers–see specification sheet for details.

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

LC-SSX1 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)
3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties of the product. (However, wire leads are not shown in the model.) This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

NOTE WHEN SAVING FILES: When downloading a solid model some browsers may change the name of the extension. You must save the file to your computer using the “Save as” option and rename the extension back to the appropriate type before using. (For example, a SolidWorks file will be saved with the .htm or .html extension, the file extension must be changed back to .sldprt before using.)

Compatible with:

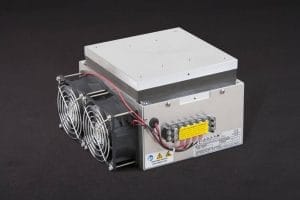

  • Three-quarter view of thermoelectric cold plate cooler/heater. Cooled aluminum plate on the front, waste heat is exhausted to fins on back. Fins are fan cooled. Contains four thermoelectric modules. Two cooling fans push air in one end of the fins where it travels the length of the fins and exhausts out the opposite side. Operates on 24 volts DC and removes 128 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improves the heat pumping capacity at larger temperature differences.

    CP-121

    $579.00

    Capacity Rating: 121 watts at a 0 °C temperature difference.
    Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
    Features: Four-module cold plate increases the heat-pumping capacity for cooling medium to large heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used with one LC-SSX1 liquid exchanger. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

    Product DetailsQuick View

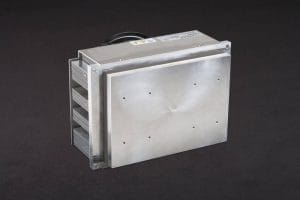

  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.

    CP-200

    $594.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: Our largest standard cold plate uses six thermoelectric modules, a bonded fin heat sink, and extender blocks for large heat loads or good cooling to low temperatures. Additionally, two stainless steel liquid exchangers can also be attached for cooling of corrosive liquids. Please inquire if you are interested in this option. Can be used for heating and cooling. All versions of this cooler are powered by 24 VDC and are compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

    Product DetailsQuick View
  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. The cooler incorporates legs which lift the fan's air inlet off of a table top, so the cooler can be operated directly on a table. It operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.

    CP-200TT

    $589.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: A table-top version of the CP-200, the unit has a shroud that encloses the fan and also has legs to stand off the fan from the table top, allowing air to enter freely into the heat sink.

    Product DetailsQuick View

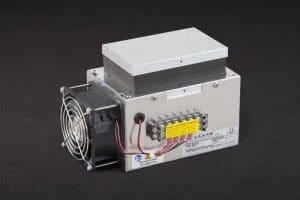

  • Three-quarter view of thermoelectric cold plate cooler/heater incorporating two thermoelectric modules. Cooled aluminum plate on the front, waste heat is exhausted to fins on back. Fins are fan cooled. The fan air enters on the one end of the fins, travels the length of the fins, and exhausts out the opposite side. Operates on 24 volts DC and removes 61 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improves the heat pumping capacity at larger temperature differences.

    CP-061

    $358.00

    Capacity Rating: 61 watts at a 0 °C temperature difference.
    Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
    Features: Two-module cold plate increases the heat-pumping capacity for cooling medium sized heat loads. Heat-sink air travels through the length of the fins (in one end, out the other) giving users a different option for locating the air inlet and outlet within their system. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-48-20 series, TC-720 series, TC-36-25 series, and TC-24-10 temperature controllers.

    Product DetailsQuick View

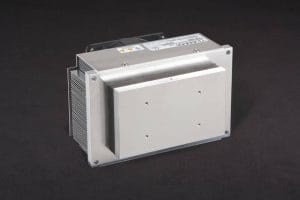

  • Three-quarter view of thermoelectric cold plate cooler/heater incorporating two large thermoelectric modules. Cooled aluminum plate on the front, waste heat is exhausted to fins on back. High density fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 105 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.

    CP-110

    $399.00

    Capacity Rating: 100 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, laser diodes, medical products, and cooling corrosive liquids with an optional stainless-steel liquid exchanger.
    Features: This cold plate uses two large thermoelectric modules for cooling medium sized heat loads. The high efficiency bonded-fin heat sink keeps the cooler small yet effective. One stainless-steel liquid exchanger can also be attached for cooling of corrosive liquids (please inquire for this option). Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-36-25, TC-48-20 and TC-720 series temperature controllers.

    Product DetailsQuick View

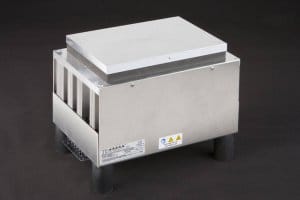

  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. The cooler incorporates legs which lift the fan's air inlet off of a table top, so the cooler can be operated directly on a table. It operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences. Can heat to 100°C without damaging the cooler.

    CP-200HT-TT

    $629.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: A table-top version of the CP-200HT, the unit additionally has a shroud that encloses the fan and also has legs which stand off the fan from the table top, allowing air to enter freely into the heat sink.

    Product DetailsQuick View
  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences. Can heat to 100°C without damaging the cooler.

    CP-200HT

    $617.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: A variant of the CP-200, this cooler adds the extra capability of heating up to 100 °C.

    Product DetailsQuick View

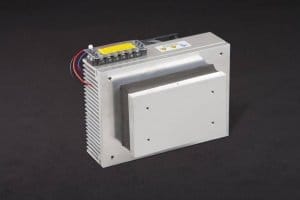

  • Three-quarter view of thermoelectric cold plate cooler/heater incorporating two thermoelectric modules. Cooled aluminum plate on the front, waste heat is exhausted to fins on back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 60 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.

    CP-065

    $245.00

    Capacity Rating: 57 watts at a 0°C temperature difference.
    Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
    Features: Another two-module cooling system with the heat sink airflow directed in a more typical configuration (in the middle and out both ends). Like all of our coolers, it can be easily customized to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.

    Product DetailsQuick View
