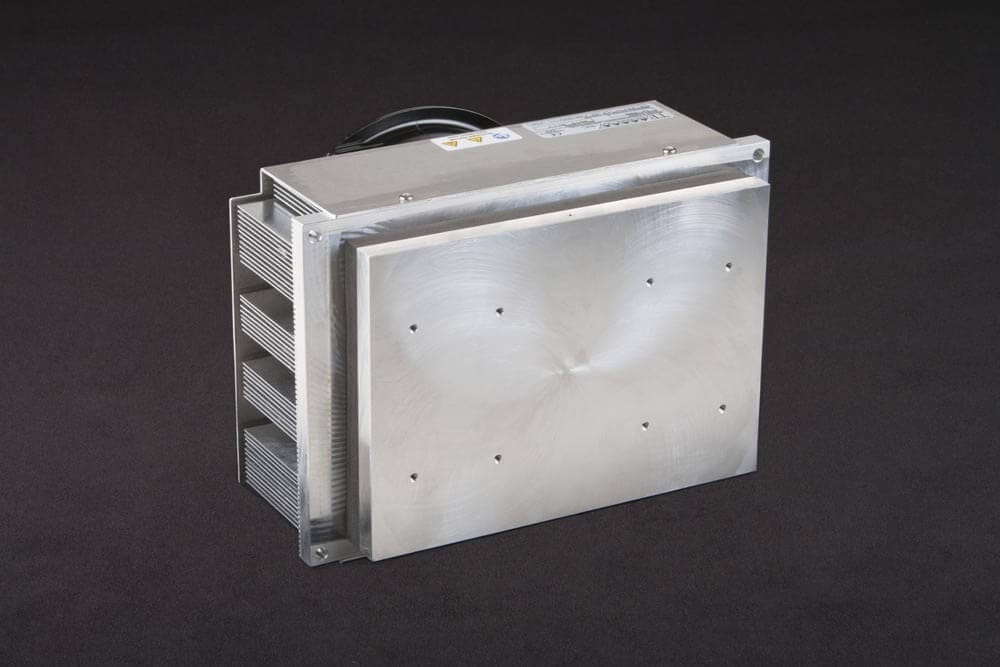

CP-200

Capacity Rating: 198 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
Features: Our largest standard cold plate uses six thermoelectric modules, a bonded fin heat sink, and extender blocks for large heat loads or good cooling to low temperatures. Additionally, two stainless steel liquid exchangers can also be attached for cooling of corrosive liquids. Please inquire if you are interested in this option. Can be used for heating and cooling. All versions of this cooler are powered by 24 VDC and are compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $594
10 - 49 $566
50 - 99 $546
100 - 249 $536
SKU: 4120 Category:

Capacity Rating: 198 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
Features: Our largest standard cold plate uses six thermoelectric modules, a bonded fin heat sink, and extender blocks for large heat loads or good cooling to low temperatures. Additionally, two stainless steel liquid exchangers can also be attached for cooling of corrosive liquids. Please inquire if you are interested in this option. Can be used for heating and cooling. All versions of this cooler are powered by 24 VDC and are compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

The CP-200 cooler has our largest cold plate surface, and of course the user can add a large adapter plate if a bigger cooling surface is needed. Additionally, the CP-200 can be made into a liquid cooler by attaching either one or two of the LC-SSX1 stainless steel tube liquid exchanger blocks. This eliminates the issues of the cooled fluid contacting the copper/epoxy/aluminum as in our other liquid coolers and works well for cooling of corrosive liquids, etc.

Features In Summary:

• 216 x 161 mm (8.5 x 6.0 inch) cold plate surface

• Effective direct contact cooling

• Can be used for heating (70 °C maximum plate temperature, heat/cool “bipolar” temperature controller required)

• Threaded holes in cold plate for easy attachment of object to be cooled

• Threaded hole in side of the cold plate for easy attachment of a temperature sensor

• Can also heat up to 70 °C

• One or Two LC-SSX1 stainless steel liquid exchangers can be attached for cooling of corrosive liquids

• RoHS compliant

• CE Marked

The cooler can be powered directly by a power supply for full-on cooling, or a temperature controller can be added to maintain a specific set temperature. When ordered with a temperature controller or power supply, the necessary hook-up cables are also included.

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

CP-200 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties of the product. (However, wire leads are not shown in the model.) This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

NOTE WHEN SAVING FILES: When downloading a solid model some browsers may change the name of the extension. You must save the file to your computer using the “Save as” option and rename the extension back to the appropriate type before using. (For example, a SolidWorks file will be saved with the .htm or .html extension, the file extension must be changed back to .sldprt before using.)

Compatible With:
