PS-24-25 Zoom

PS-24-25

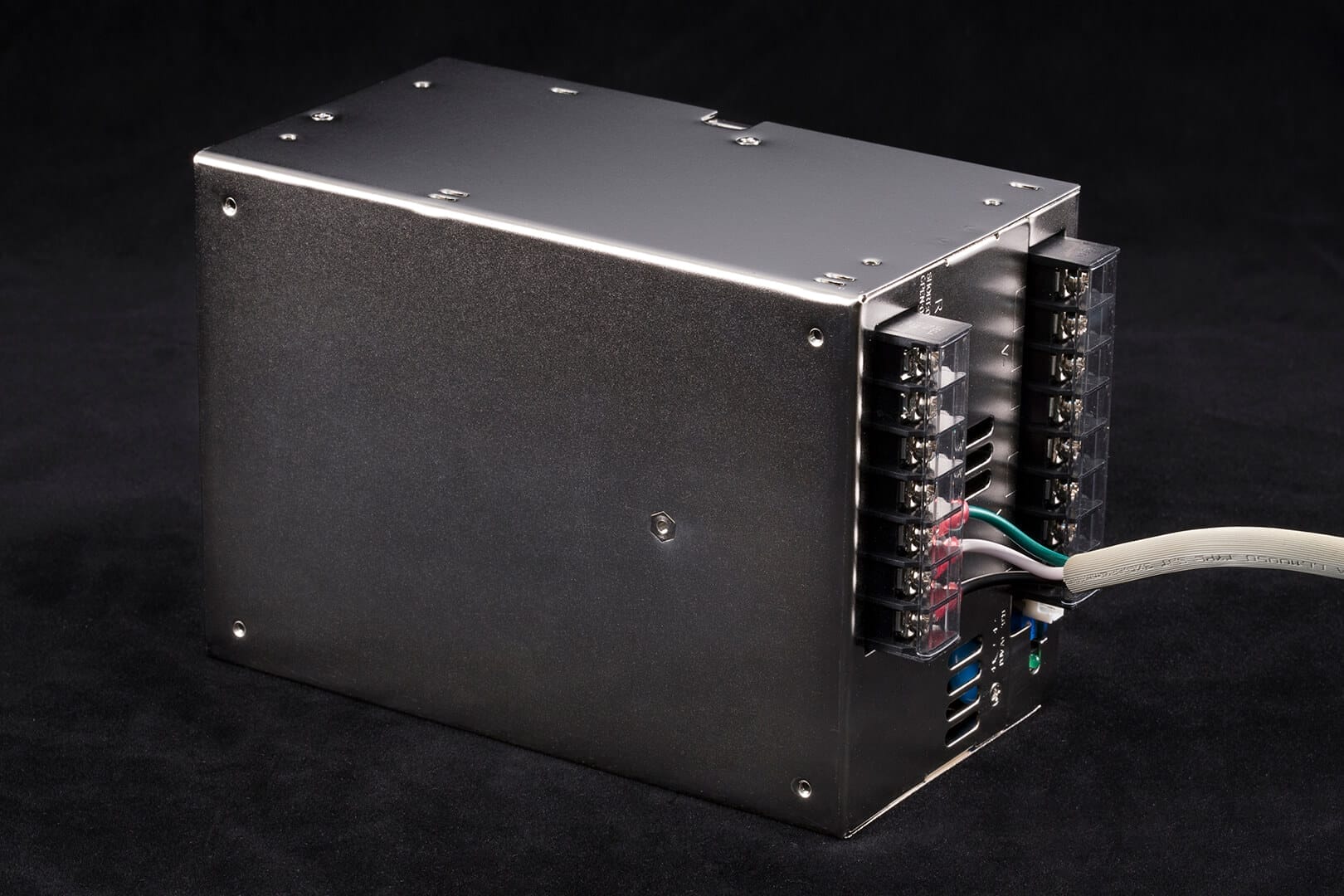

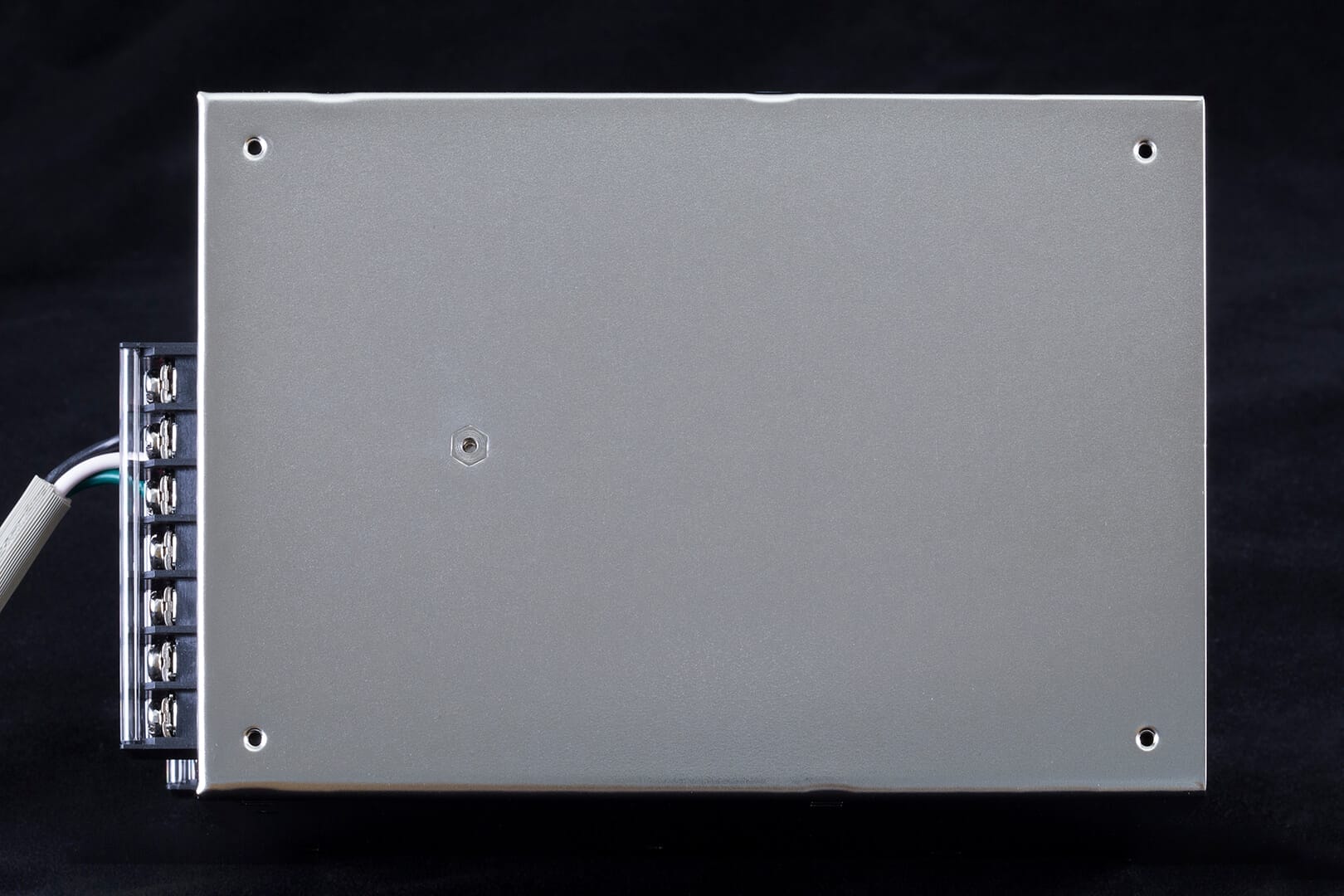

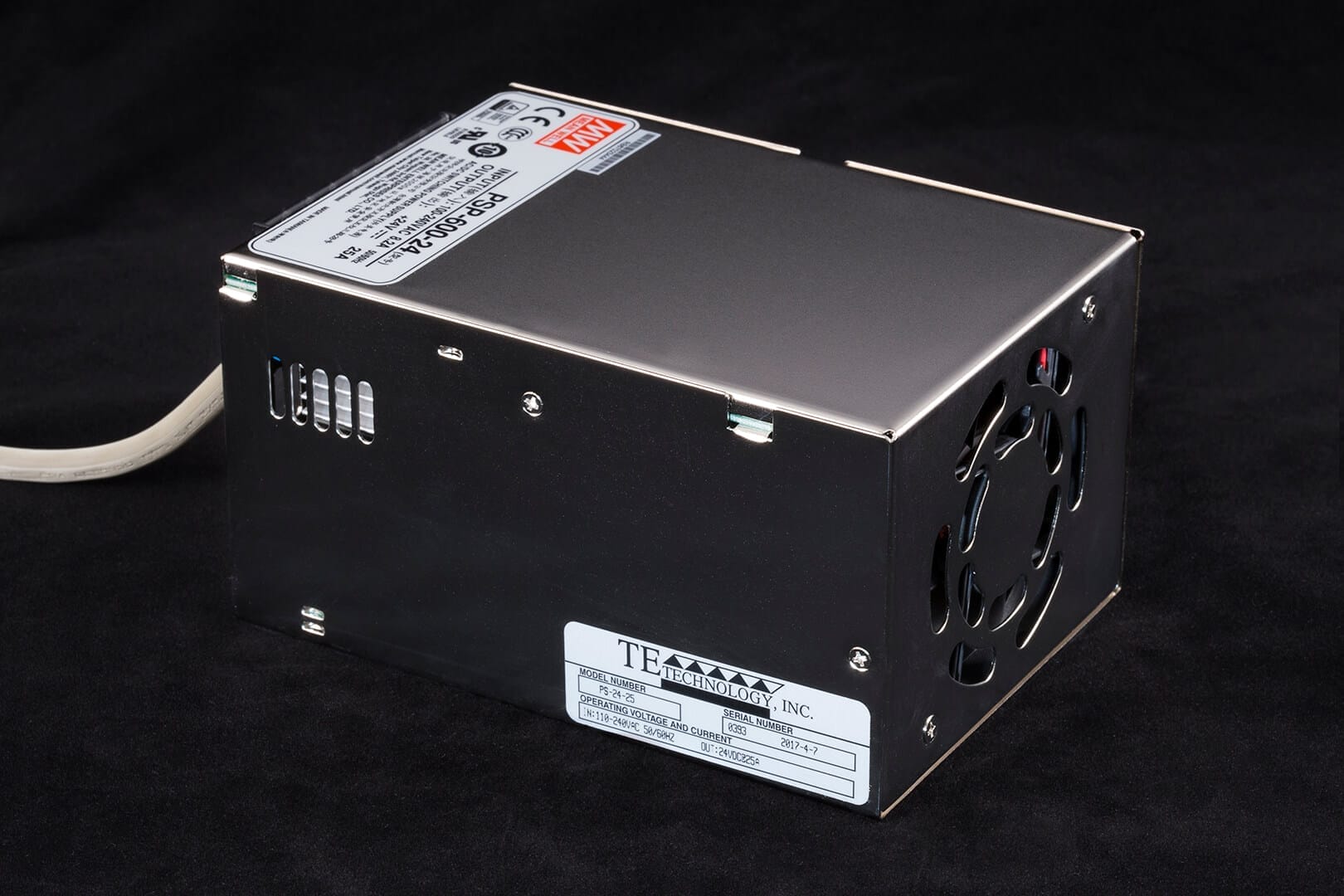

A 24 volt DC, fixed-voltage power supply capable of delivering up to 25 amps of current. The power supply features a wide input voltage range; no manual selection necessary. One North-American standard power cord is attached and power cords for the UK, EU, and Italy can be purchased separately. When ordered in conjunction TE Technology coolers and temperature controllers the interconnection cables are included free of charge.

SKU: 6031. Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $203
10 - 49 $193
50 - 99 $184
100 - 249 $175

A 24 volt DC, fixed-voltage power supply capable of delivering up to 25 amps of current. The power supply features a wide input voltage range; no manual selection necessary. One North-American standard power cord is attached and power cords for the UK, EU, and Italy can be purchased separately. When ordered in conjunction TE Technology coolers and temperature controllers the interconnection cables are included free of charge.

A 24 volt DC, fixed-voltage power supply capable of delivering up to 25 amps of current. The power supply features a wide input voltage range; no manual selection necessary. One North-American standard power cord is attached and power cords for the UK, EU, and Italy can be purchased separately. When ordered in conjunction TE Technology coolers and temperature controllers the interconnection cables are included free of charge.

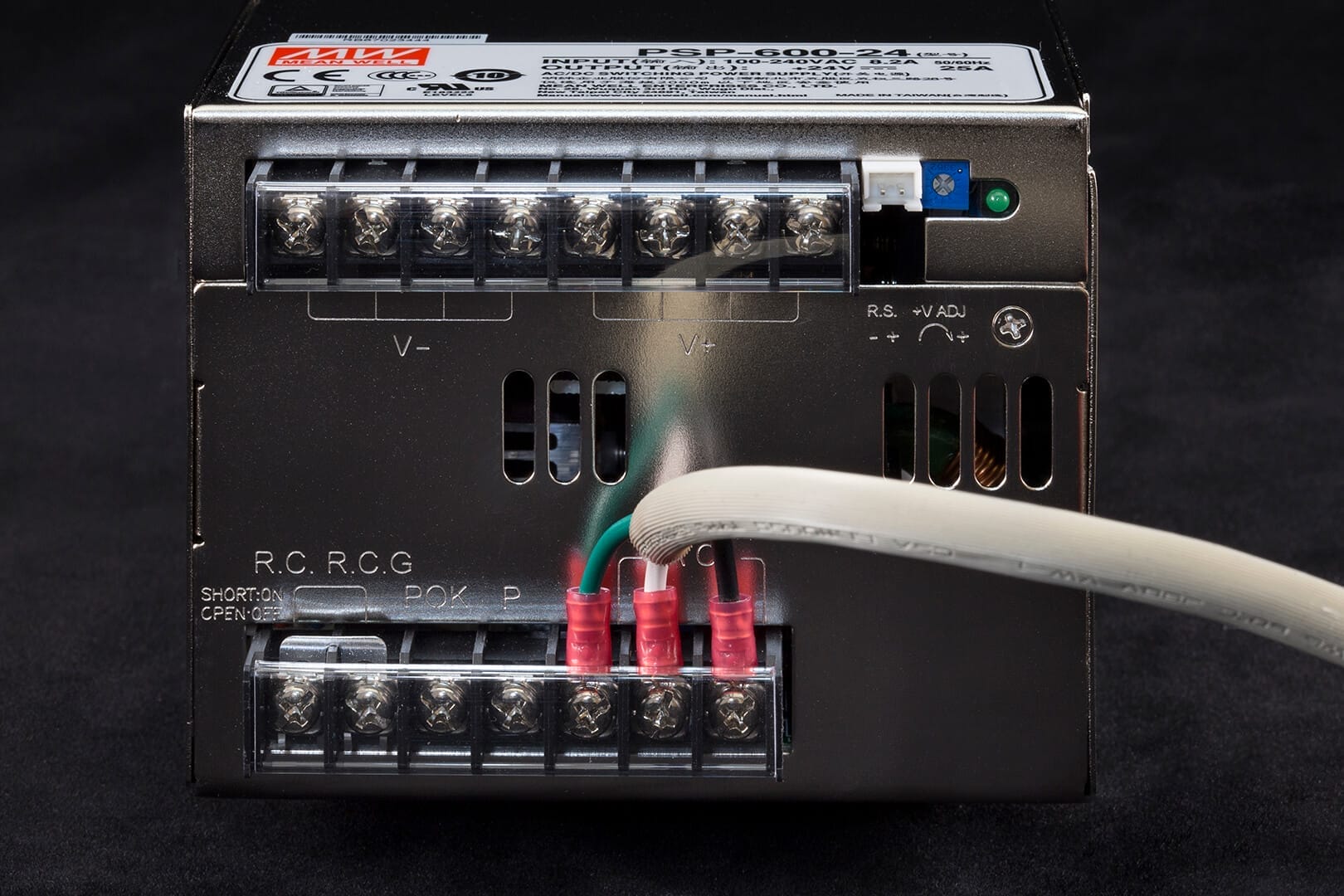

This power supply features an output enable connections on the terminal strip (R.C.G. & R.C.).  The output is “on” when the included jumper/short is in place.  If the jumper/short is removed the output is “off”.  This is a low-voltage, low-current signal that can be used to disable the power supply if the jumper is replaced with a switch or thermostat.  The thermostat should be used only as an over-temperature / under-temperature safety switch and not as a regular means of temperature control.

Features:

RoHS compliant.

Input Voltage:  88-264 VAC , 47-63 Hz

Input Voltage Range Selection:  No selection required, continuous within range.

Power Factor Correction:  Yes

Output Voltage:  24 V DC

Output Voltage Adjustment:  +/- 10% via adjustable potentiometer

Maximum Output Current:  25 A

Over-Current Protection:  Yes, 105~135% rated output power, automatic recovery.

Dimensions:  185 x 120 x 93 mm

Cooling:  Fan cooled, fan speed regulated via internal temperature sensor.

Maximum ambient:  60 degrees Celsius. For ambient temperatures above 45 degrees Celsius, derate output current by 2.7% per degree Celsius. For operation below 115 VAC, derate by 0.74% per volt.

pdf-iconPS-24-25 Data Sheet
(Data sheet is for base power supply only; power cord not shown.)

step-iconSolid Model: PS-24-25.stp
(Solid Model is for base power supply only; power cord not shown.)

Compatible with:

  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. The cooler incorporates legs which lift the fan's air inlet off of a table top, so the cooler can be operated directly on a table. It operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.

    CP-200TT

    $589.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: A table-top version of the CP-200, the unit has a shroud that encloses the fan and also has legs to stand off the fan from the table top, allowing air to enter freely into the heat sink.

    Product Details Add to cart
    Product DetailsQuick View
  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. The cooler incorporates legs which lift the fan's air inlet off of a table top, so the cooler can be operated directly on a table. It operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences. Can heat to 100°C without damaging the cooler.

    CP-200HT-TT

    $629.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: A table-top version of the CP-200HT, the unit additionally has a shroud that encloses the fan and also has legs which stand off the fan from the table top, allowing air to enter freely into the heat sink.

    Product Details Add to cart
    Product DetailsQuick View
  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences. Can heat to 100°C without damaging the cooler.

    CP-200HT

    $617.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: A variant of the CP-200, this cooler adds the extra capability of heating up to 100 °C.

    Product Details Add to cart
    Product DetailsQuick View

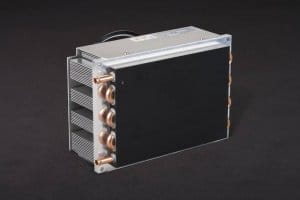

  • LC-200

    $634.00

    Capacity Rating: 184 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, laser diode cooling, medical products, recirculating chillers, temperature baths.
    Features: High-density bonded-fin heat sink, an eight-pass liquid loop, and six thermoelectric modules for high capacity in a compact size. As with all of our liquid coolers it can be customized with swirl inserts in the liquid loop to improve efficiency at low flow rates. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

    Product Details Add to cart
    Product DetailsQuick View

  • PS-AC CORD-UK

    $17.00

    Replacement power cord for power supply, UK plug. Details and Wiring Instructions

    Product Details Add to cart
    Product DetailsQuick View

  • PS-AC CORD-EU

    $17.00

    Replacement power cord for power supply, EU plug. Details and Wiring Instructions

    Product Details Add to cart
    Product DetailsQuick View
  • Three-quarter view of large thermoelectric cold plate cooler/heater incorporating six thermoelectric modules. The cooled aluminum plate on the front and waste heat is exhausted to high-density fins on the back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 204 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.

    CP-200

    $594.00

    Capacity Rating: 198 watts at a 0°C temperature difference.
    Example Applications: Laboratory instruments, component test benches, high-power laser diodes, and cooling corrosive liquids with optional stainless-steel liquid exchangers.
    Features: Our largest standard cold plate uses six thermoelectric modules, a bonded fin heat sink, and extender blocks for large heat loads or good cooling to low temperatures. Additionally, two stainless steel liquid exchangers can also be attached for cooling of corrosive liquids. Please inquire if you are interested in this option. Can be used for heating and cooling. All versions of this cooler are powered by 24 VDC and are compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

    Product Details Add to cart
    Product DetailsQuick View

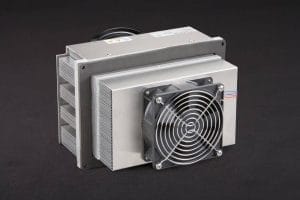

  • AC-162
