Liquid Coolers

Liquid coolers excel at delivering cooling to concentrated heat sources such as laser diodes and for delivering cooled fluid into remote or compact locations where the cooling assembly itself cannot be located. The basic operation is simple: fluid flows in one tube, it is cooled, and then it flows out the other tube. An external pump is required, and typically small DC magnetic-drive pumps are used to minimize the amount of pump power (heat) that is imparted to the fluid.

Product Image Model Number Length (mm) Width (mm) Height (mm) Operating Voltage (VDC) Operating Current (Amps), Typical Capacity (ΔT=0), 35 °C Inlet Water Temperature Liquid Loop (Materials) Data Sheet Solid Models Price Stock Status Product Page
LC-066SS 178 99 88 24 4.4 68 Stainless Steel Data Sheet Solid Models $575.00 Info/Buy
LC-102SS 178 99 88 24 8.1 102 Stainless Steel Data Sheet Solid Models $599.00 Info/Buy
LC-200 254 176 155 24 14.1 192 Hard Coat anodized aluminum and copper with epoxy bonding Data Sheet Solid Models $945.00 Info/Buy

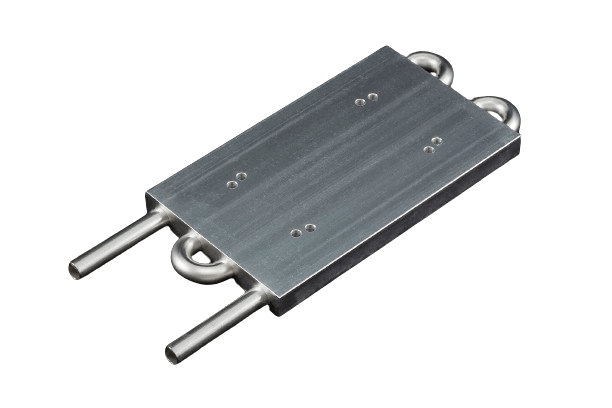

LC-SSX1 221 89 13 N/A N/A N/A Stainless Steel Data Sheet Solid Models $199.00 Info/Buy
CP-061HT 198 194 139 24 4.6 62 Stainless Steel Data Sheet Solid Models $442.50 Info/Buy
LC-SSX1 221 89 13 N/A N/A N/A Stainless Steel Data Sheet Solid Models $199.00 Info/Buy
CP-065HT 178 127 127 24 4.5 57 Stainless Steel Data Sheet Solid Models $295.50 Info/Buy
LC-SSX1 221 89 13 N/A N/A N/A Stainless Steel Data Sheet Solid Models $199.00 Info/Buy
CP-110HT 203 130 153 24 9.0 99 Stainless Steel Data Sheet Solid Models $466.50 Info/Buy
LC-SSX1 221 89 13 N/A N/A N/A Stainless Steel Data Sheet Solid Models $199.00 Info/Buy
CP-121HT 198 188 136 24 9.2 118 Stainless Steel Data Sheet Solid Models $760.50 Info/Buy
LC-SSX1 221 89 13 N/A N/A N/A Stainless Steel Data Sheet Solid Models $199.00 Info/Buy
CP-200HT 254 176 178 24 14.1 182 Stainless Steel Data Sheet Solid Models $853.00 Info/Buy
LC-SSX1 221 89 13 N/A N/A N/A Stainless Steel Data Sheet Solid Models $199.00 Info/Buy
CP-200HT 254 176 178 24 14.1 194 Stainless Steel Data Sheet Solid Models $853.00 Info/Buy
LC-SSX1 221 89 13 N/A N/A N/A Stainless Steel Data Sheet Solid Models $199.00 Info/Buy

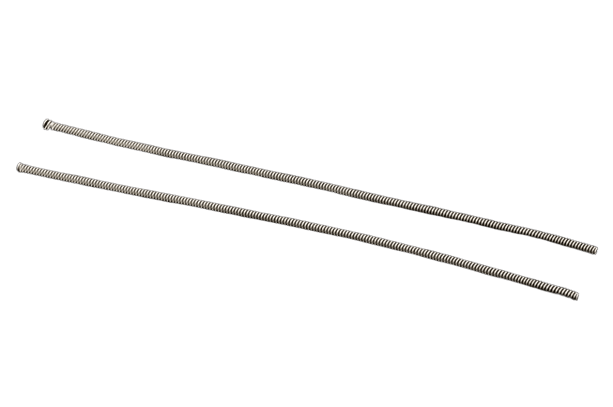

MP-3874 350 6 6 N/A N/A N/A Stainless Steel Data Sheet Solid Models $19.00 Info/Buy
