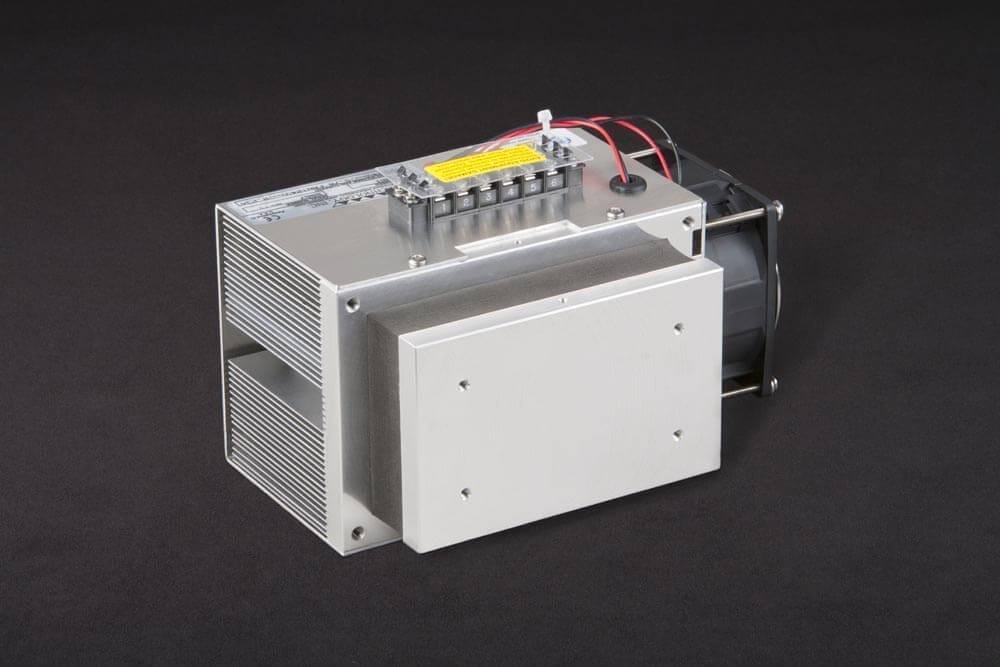

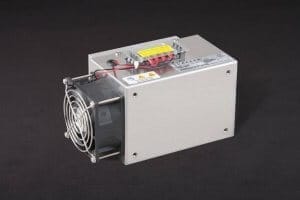

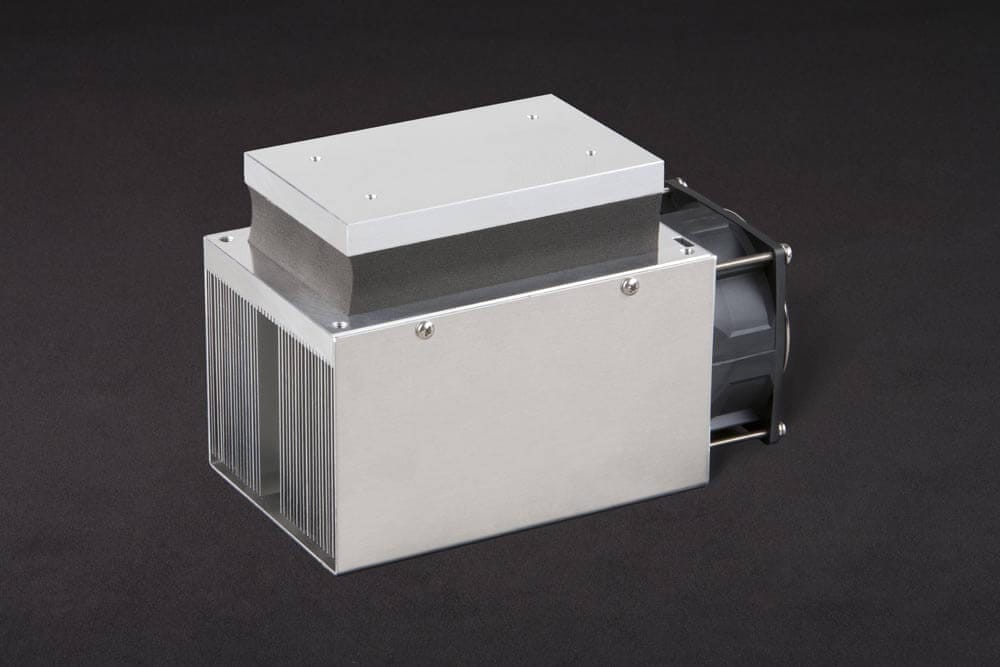

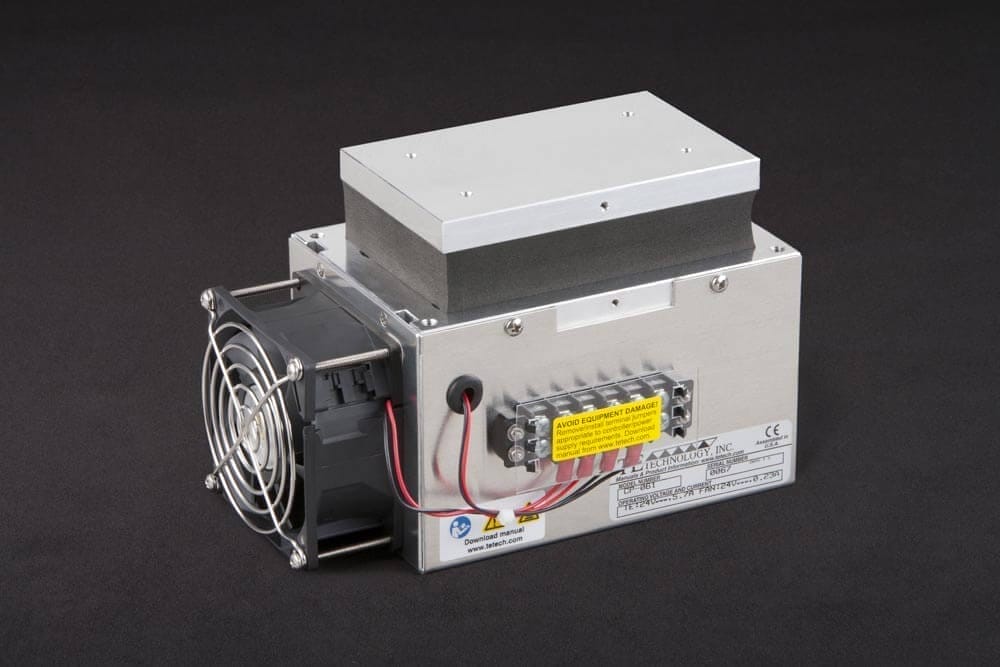

LC-061

Capacity Rating: 54 watts at a 0°C temperature difference.
Example Applications: Recirculating water chillers, cooling in-process fluid, and gas drying in analytical instruments.
Features: A four-pass liquid loop provides a very good thermal link between the fluid and the two thermoelectric modules. The aluminum portions of the liquid path are hard-coat anodized to prevent corrosion. For stainless steel liquid paths select a cold-plate style cooler and add an optional LC-SSX1 stainless steel liquid plate. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $297
10 - 49 $283
50 - 99 $269
100 - 249 $255
SKU: 4180 Category:

Capacity Rating: 54 watts at a 0°C temperature difference.
Example Applications: Recirculating water chillers, cooling in-process fluid, and gas drying in analytical instruments.
Features: A four-pass liquid loop provides a very good thermal link between the fluid and the two thermoelectric modules. The aluminum portions of the liquid path are hard-coat anodized to prevent corrosion. For stainless steel liquid paths select a cold-plate style cooler and add an optional LC-SSX1 stainless steel liquid plate. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.

• Ideal for recirculating water chillers or in-process fluid cooling.
• Can be used for heating and cooling (requires heat/cool controller).
• Corrosion resistant hard-coat anodizing on aluminum portions of cold sink.
• Terminal block included for convenient wire attachment.
• Easy mounting of the cooler with an extruded thread boss.
• CE marked and RoHS compliant

A four-pass liquid loop provides a very good thermal link between the fluid and the two thermoelectric modules.  The aluminum portions of the liquid path are hard-coat anodized to prevent corrosion.  For stainless steel liquid paths select a cold-plate style cooler such as the CP-065 and add an optional LC-SSX1 stainless steel liquid plate.  This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

LC-061 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties ofthe product. (However, wire leads are not shown in the model.) This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

NOTE WHEN SAVING FILES: When downloading a solid model some browsers may change the name of the extension. You must save the file to your computer using the “Save as” option and rename the extension back to the appropriate type before using. (For example, a SolidWorks file will be saved with the .htm or .html extension, the file extension must be changed back to .sldprt before using.)

Compatible With:
