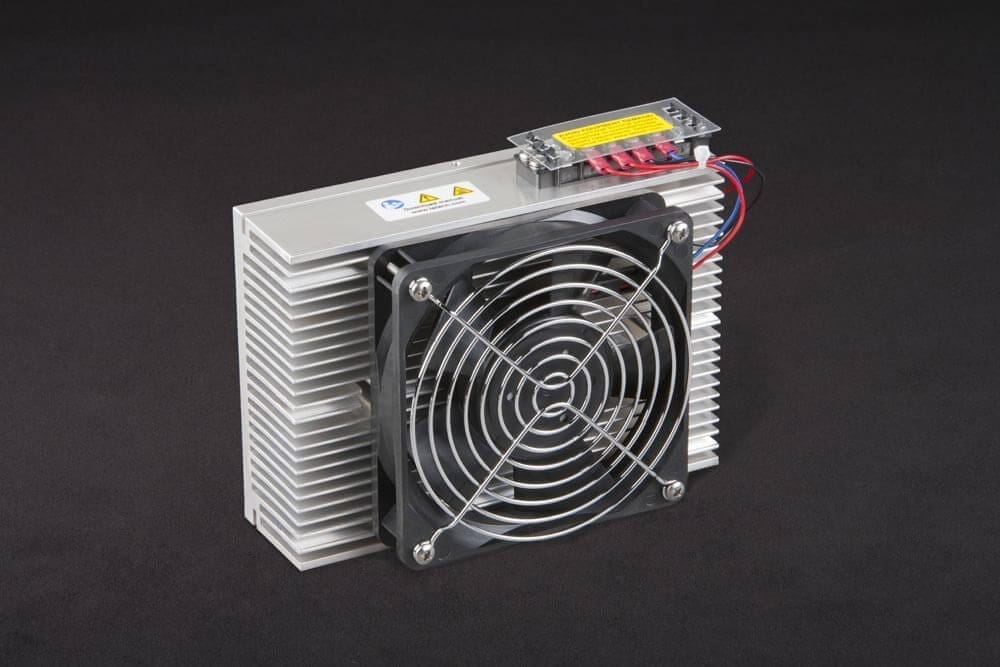

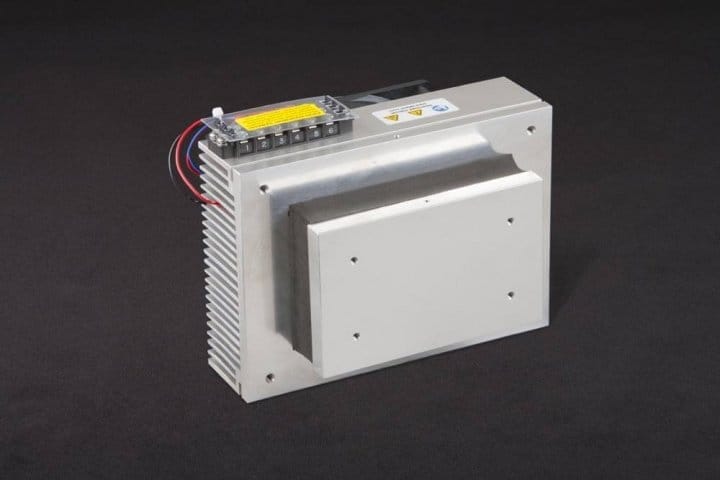

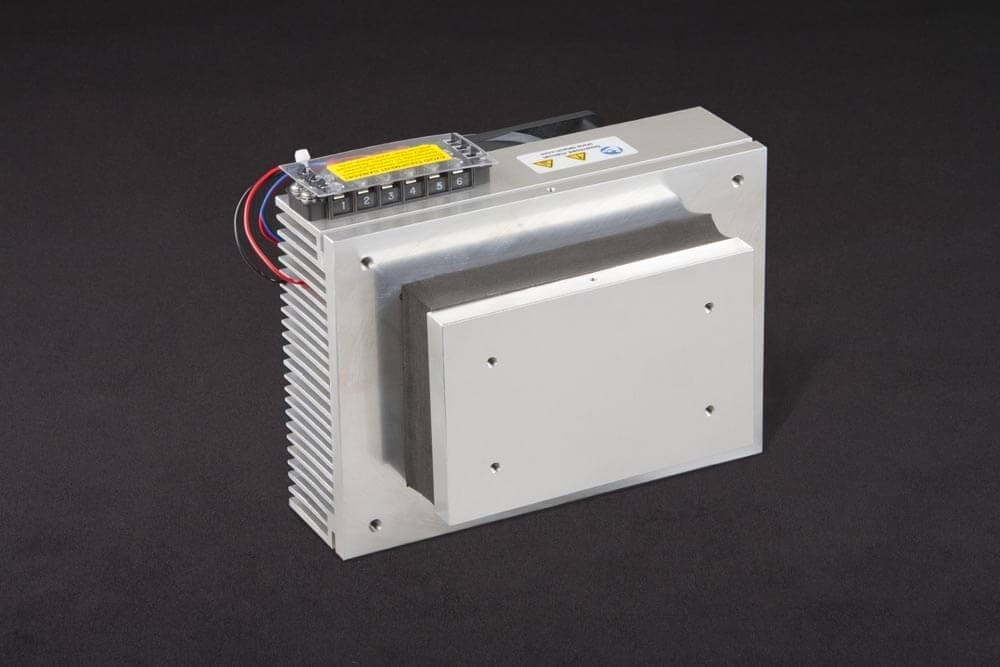

Three-quarter view of thermoelectric cold plate cooler/heater incorporating two thermoelectric modules. Cooled aluminum plate on the front, waste heat is exhausted to fins on back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 60 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.
Three-quarter view of thermoelectric cold plate cooler/heater incorporating two thermoelectric modules. Cooled aluminum plate on the front, waste heat is exhausted to fins on back. Fins are fan cooled. The fan air enters on the middle back and exhausts on sides. Operates on 24 volts DC and removes 60 watts of heat at a 0°C temperature difference relative to ambient. Internal extender blocks improve the heat pumping capacity at larger temperature differences.
CP-065
CP-065

CP-065

Capacity Rating: 65 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Another two-module cooling system with the heat sink airflow directed in a more typical configuration (in the middle and out both ends). Like all of our coolers, it can be easily customized to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $295.50
10 - 49 $282.50
50 - 99 $266.50
Add to quote
SKU: 4100 Category:

Capacity Rating: 65 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments, thermal stabilization of electronic components, and laser diodes.
Features: Another two-module cooling system with the heat sink airflow directed in a more typical configuration (in the middle and out both ends). Like all of our coolers, it can be easily customized to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera. Can be used for heating and cooling. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

• Effective direct contact cooling.
• Can be used for heating (70 °C maximum plate temperature, heat/cool “bipolar” temperature controller required).
• Compact design for space sensitive applications.
• Terminal block included for convenient wire attachment.
• Tapped holes in cold plate for easy attachment of object to be cooled.
• Ideal for precise temperature control applications.

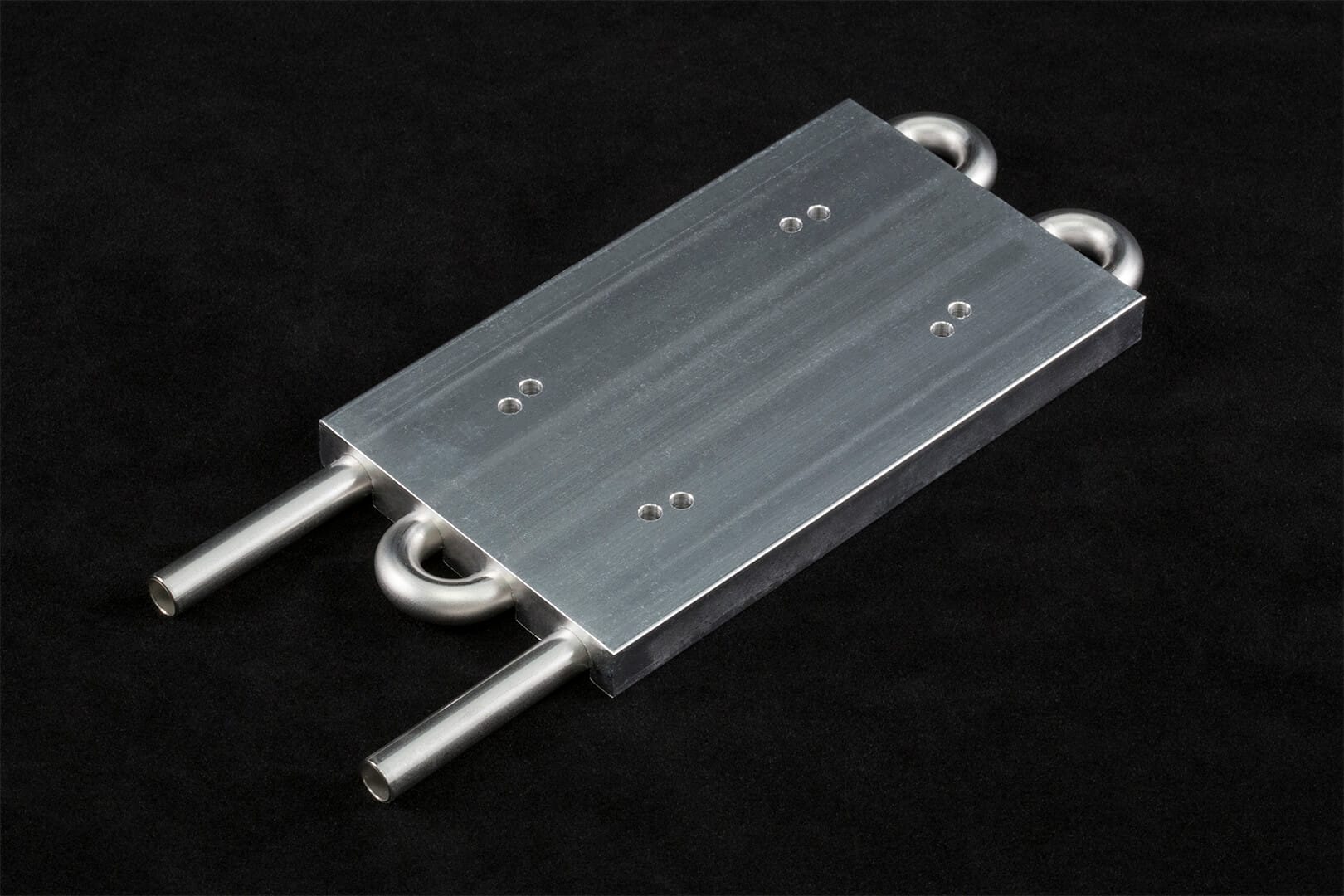

• One or two LC-SSX1 stainless steel liquid exchanger can be attached for cooling of corrosive liquids.

This is a two-module cold plate increases the heat-pumping capacity for cooling medium sized heat loads.  Like all of our coolers, it can be easily customized to meet your production requirements: special cold plates, smaller heat sinks, different operating voltages, lower power consumption, et cetera. This cooler is powered by 24 VDC and is compatible with all of our temperature controllers.

The CP-065 is CE marked and is RoHS compliant.

CP-065 Data Sheet (PDF Format) pdf-icon

CP-065 Data Sheet (HTML Format)

Standard Coolers and Temperature Controllers Catalog

3Dpdf-icon CP-065 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

3D Solid Models
Parasolid: CP-065.x_t (best for importing into SolidWorks)
See note below before downloading files.
STEP: CP-065.stp
See note below before downloading files.

NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension or open it as a text file. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t or .stp before using.

Compatible With:
