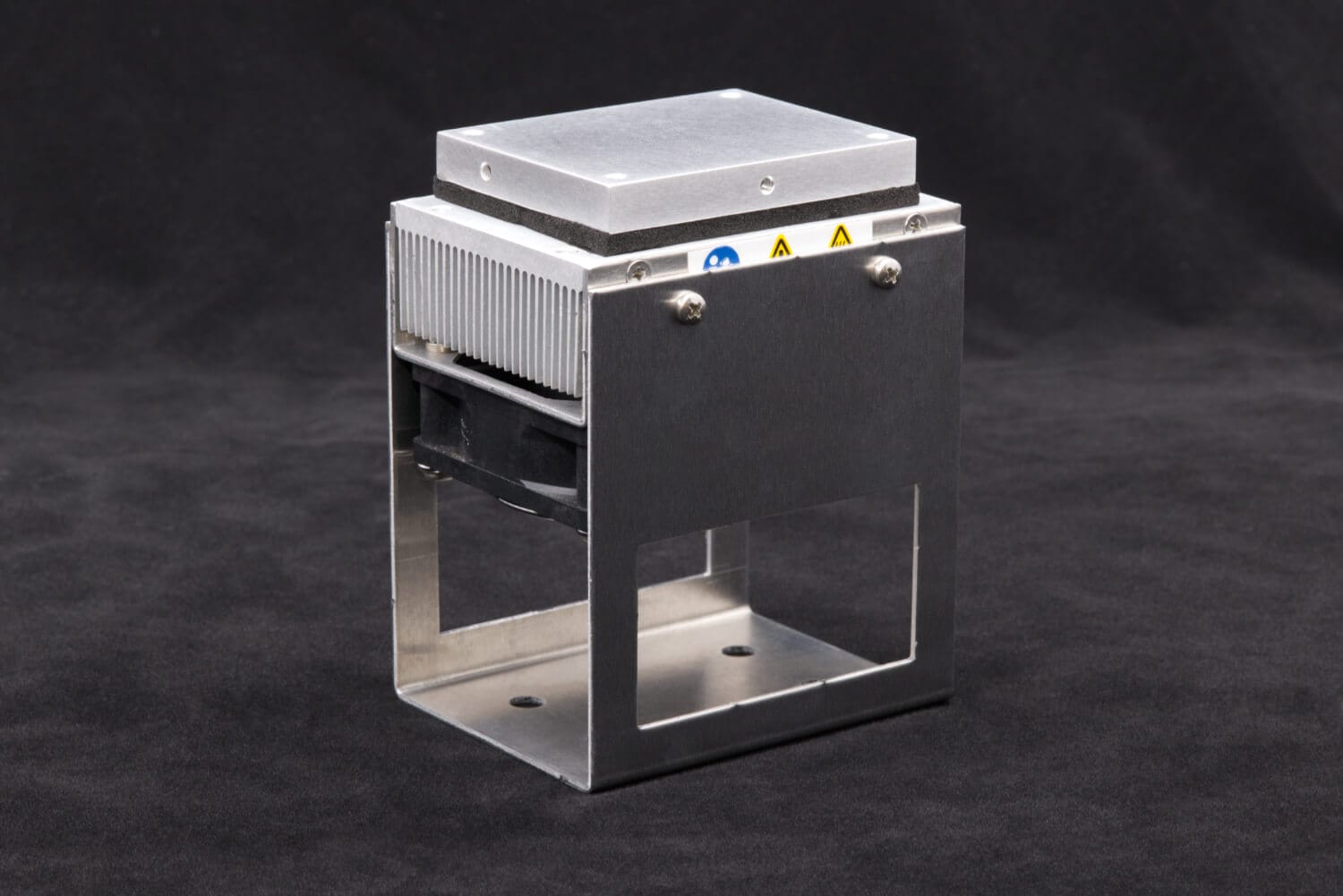

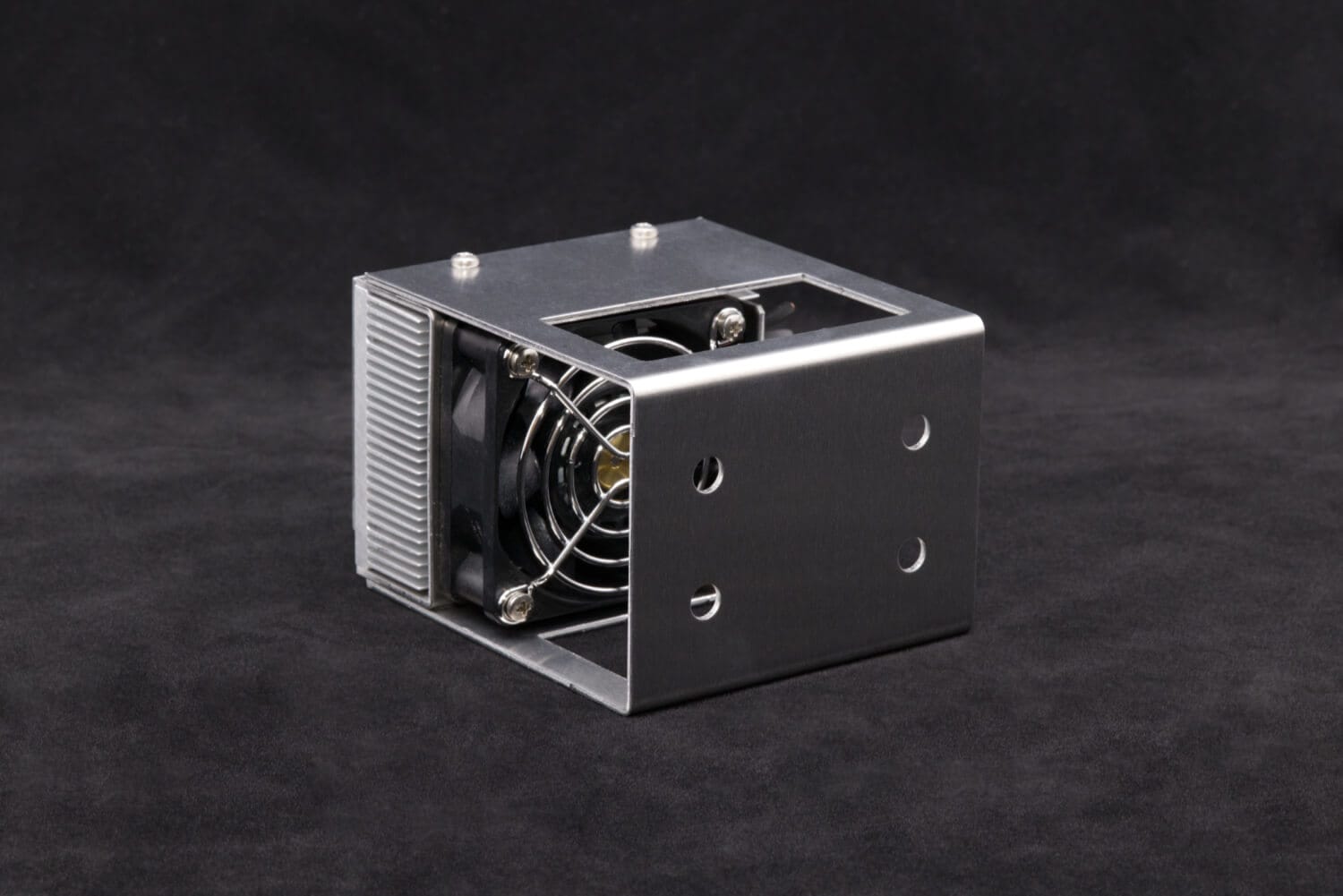

CP-035HT Mounting Bracket
Mounting bracket converts the CP-035HT into a bench-top cooler.
In Stock
- Converts the CP-035HT into a bench-top ready cooler.
- Mounting holes are spaced to mount to common optical tables and breadboards.
- CP-035HT has pre-drilled, tapped holes in sides of heat sink for attaching the bracket
with the supplied M3 screws. - RoHS compliant
CP-035HT with optional brakcet 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)
3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.
| 3D Solid Models |
| Parasolid: CP-035HT-with-optional-bracket.x_t (best for importing into SolidWorks) See note below before downloading files. |
| STEP: CP-035HT-with-optional-bracket.stp See note below before downloading files. |
NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t, .sldprt or .stp before using.
Compatible With:
-
CP-035HT
$199.50 Add to cart Product DetailsCapacity Rating: 35 watts at a 0°C temperature difference.
Example Applications: Medical and laboratory instruments.
Features: Provides very good cooling capacity with a small form factor. Narrow heat sink is only 63 mm wide. Powered by 12 VDC and compatible with all of our temperature controllers. Combined with a bipolar temperature controller, it can also be used for heating up to 100 °C. An optional bracket is available for converting to bench-top use.
