Capacity Rating: 51 watts at a 0°C temperature difference.
Example Applications: Biomedical equipment and small-to-medium sized electronics enclosures.
Features: This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. The external heat-sink fan blows down the length of the heat sink, perpendicular to the direction of air flow of the internal fins. This provides unique options for routing air flow in instrument cabinets. Can be used for heating and cooling. It can be used with the TC-24-10, TC-720 series, TC-36-25 series, and the TC-48-20 series temperature controllers. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.
Search Products
AC-053
Capacity Rating: 51 watts at a 0°C temperature difference.
Example Applications: Biomedical equipment and small-to-medium sized electronics enclosures.
Features: This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. The external heat-sink fan blows down the length of the heat sink, perpendicular to the direction of air flow of the internal fins. This provides unique options for routing air flow in instrument cabinets. Can be used for heating and cooling. It can be used with the TC-24-10, TC-720 series, TC-36-25 series, and the TC-48-20 series temperature controllers.
In Stock
• No load cooling to 46 °C below ambient.
• Compact, high-fin density heat sink and cold sink for high performance in a small space.
• Can be used for heating and cooling (requires heat/cool controller).
• Low maintenance with no moving parts, except the fans.
• External heat sink fan blows down the length of the heat sink providing for a different option of easy routing of air flow.
• CE marked, RoHS compliant

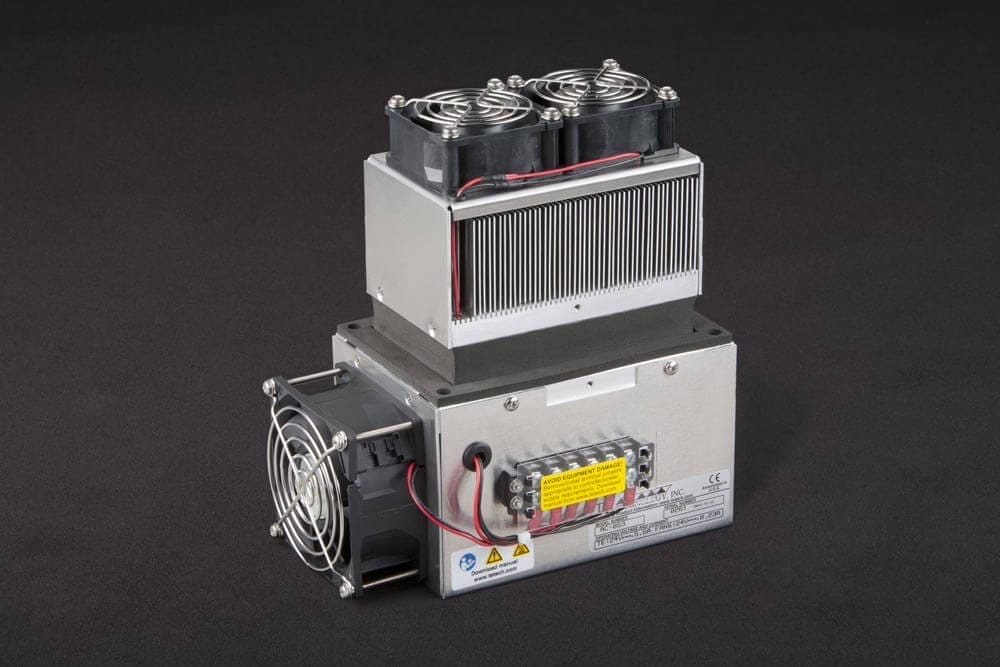

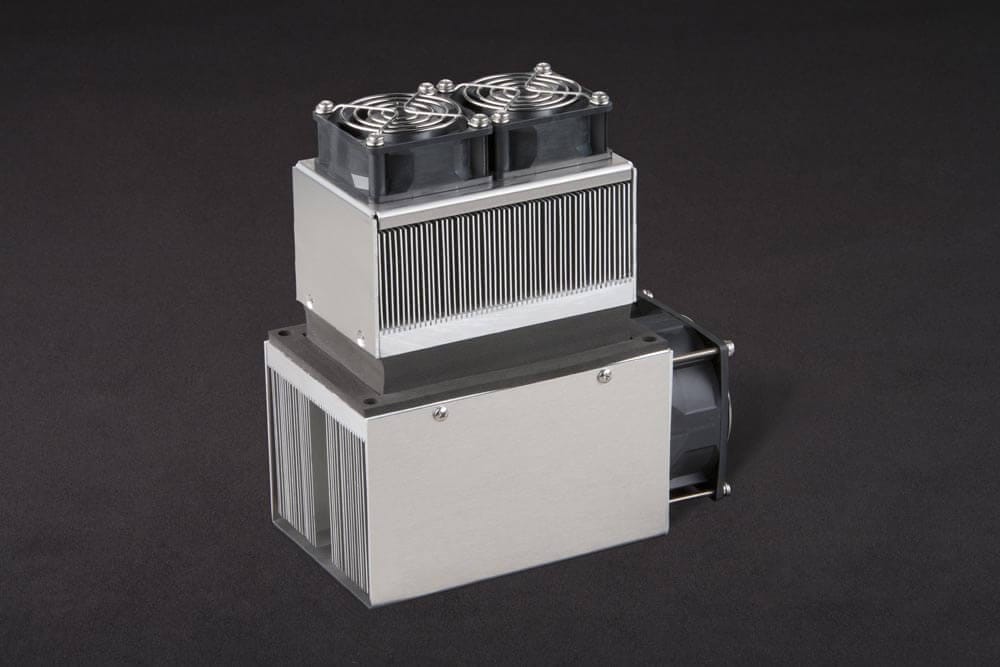

The AC-053 air uses two thermoelectric modules and high-density bonded-fin heat sinks on both sides of the exchanger to yield a high performance in a small space. The low thermal resistance of the internal heat sink keeps the temperature difference between the internal air and the fins at a minimum. This helps prevent frost when cooling to near freezing temperatures. The low fan noise of the external fan (39 dBA) makes this cooler ideal for laboratory instrumentation where quiet operation is desirable.
The heat sinks (fins) are configured to allow unique options for mounting the cooler and routing air flow within equipment. Outside the enclosure air enters the fan end of the heat sink, is forced through the fins, and exits at the opposite side. Inside the enclosure air is pulled in by the two the fans, blown down onto the fins, and then exits both sides. The internal air flow is perpendicular to that of the external air flow, which makes it easier to mount the cooler on the side of some enclosures. One of the air exit paths inside the enclosure can even be restricted/blocked–typically the impact on performance is minimal.
The AC-053 is powered by 24 VDC, it has a NEMA 12 rating, and can be customized to achieve NEMA 4. The low power consumption makes this cooler compatible with all of our temperature controllers. Like all of our coolers, it can be easily customized to meet your production requirements: special wiring configurations, smaller heat sinks, different operating voltages, lower power consumption, etc.
AC-053 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)
3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.
3D Solid Models |
Parasolid: AC-053.x_t (best for importing into SolidWorks) See note below before downloading files. |
STEP: AC-053.stp See note below before downloading files. |
NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t or .stp before using.
Compatible With:
-
PS-24-6.5A
A 24 volt DC, fixed-voltage power supply capable of delivering up to 6.5 amps of current. The input voltage is auto-ranging. One North-American standard power cord is supplied attached to the power supply, and power cords for the UK, EU, and Italy can be purchased separately.
-
TC-36-25-RS232-UL
The TC-36-25-RS232-UL has the same features as the TC-36-25 RS232, including bi-polar (heat and cool) proportional-integral-derivative control that can modulate input voltages of up to 36 V at currents of up to 25 A. This version is CE marked and is MET-Labs listed, conforming to UL 60730-1. Due to listing requirements the controller does not come with a temperature sensor (thermistor) or RS232 cable, but these can be ordered separately. Windows-compatible, LabVIEW-based GUI software is available as a download, the LabVIEW source code is available free of charge upon request, and a sample read and write command programmed in Python is also available for download.
-
TC-36-25-RS485
The TC-36-25 RS485 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. Multiple controllers can be daisy-chained together and run off a single communication port using the optional RS485 Adapter (USB). Windows-compatible software is provided for easily programming the controller. The LabVIEW-based software is shipped as a stand-alone program, the LabVIEW source code (version 2011 and higher) is available free of charge upon request, and a sample read and write command programmed in Python is also available for download.
-
TC-36-25-RS232
The TC-36-25 RS232 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. In addition, Windows-compatible software and an RS232 cable are provided for direct communication via the serial communication port. LabVIEW-based GUI available as a download, the LabVIEW source code is available free of charge upon request, and a sample read and write command programmed in Python is also available for download.
-
TC-720 OEM
The TC-720 OEM is a basic version of the TC-720 controller that is a component for Original Equipment Manufacturers (OEM’s) that want to integrate the controller in a system where the display, keypad, and box are not needed. The TC-720 is a Heat & Cool (Bipolar) control controller, and all programming and monitoring functions are accomplished via the on-board USB communications port. The controller is shipped as the basic control circuit mounted on an aluminum panel. One standard thermistor (model MP-3193) and a software CD are included. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2018 and higher) is available upon request and a sample read and write command programmed in Python is also available for download.
-
TC-48-20 OEM
The TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request and a sample read and write command programmed in Python is also available for download.
-
TC-48-20
The TC-48-20 is an easy to use yet powerful cool-only or heat-only PWM temperature controller. It is housed in a die-cast aluminum box, incorporates a keypad and display, and is capable of controlling from 0 to 50 volts and up to 20 amps. Two versatile alarm outputs are included, each capable of switching up to 1 amp of current. If a true linear-output control system is desired (for applications extremely sensitive to electrical noise) the TC-48-20 can be used as the control head for high-power, variable-output linear supplies. Most control parameters can be programmed via the built-in keypad, but the controller can also be connected to a computer via an optional RS232 serial cable for more advanced program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request and a sample read and write command programmed in Python is also available for download.
-
TC-720
The TC-720 is a bipolar, heat and cool, thermoelectric temperature controller with USB communications. It is capable of controlling up to 36 volts and 20 amps. One standard thermistor, model MP-3193, is included. A second sensor can be attached for monitoring and alarm purposes. The controller is housed in a die-cast aluminum box and incorporates a keypad and a liquid-crystal display. The display allows the user to monitor the sensor temperature, power output level, and menu settings. The integrated keypad accesses an easy-to-use menu system, allowing the user to adjust all of the basic controller parameters such as the set temperature, tuning parameters, and alarm parameters. The controller can also be connected to a computer via USB for more advanced program control as well as data graphing and data logging using the supplied software. The software is shipped as a stand-alone program, but the LabVIEW source code for that program (version 2018 and higher) is available upon request and a sample read and write command programmed in Python is also available for download.
-
TC-24-10
The TC-24-10 is a RoHS compliant proportional-integral (PI) temperature controller developed for applications requiring a low cost, basic temperature controller. Set-point and tuning adjustments are made via potentiometer. It can modulate power from 9V up to 26 V at currents up to 10 A when using a single power supply. The controller can also modulate from 0 V up to 50 V when using two power supplies, making this a good choice for controlling low-voltage modules. As with all of our controllers, a standard temperature sensor (15K thermistor) is included.
