Capacity Rating: 189 watts at a 0 °C temperature difference.
Example Applications: Ideal for electronics enclosures, telecommunications equipment, battery boxes and refrigerators.
Features: This cooler is powered by 48 VDC and is rated to maintain the enclosure’s NEMA 4 rating. The hot-side fan is sealed against moisture, and the heat sink uses marine-grade anodizing to prevent corrosion. Finger guards and mounting hardware are stainless steel. The input wires are routed on the cold side of the cooler, making it easy to power via wiring from inside the enclosure although care should be taken so that condensation is not allowed to form on the cold sink. Can be used for heating and cooling. It is compatible with the TC-48-20 series temperature controllers. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.
Search Products

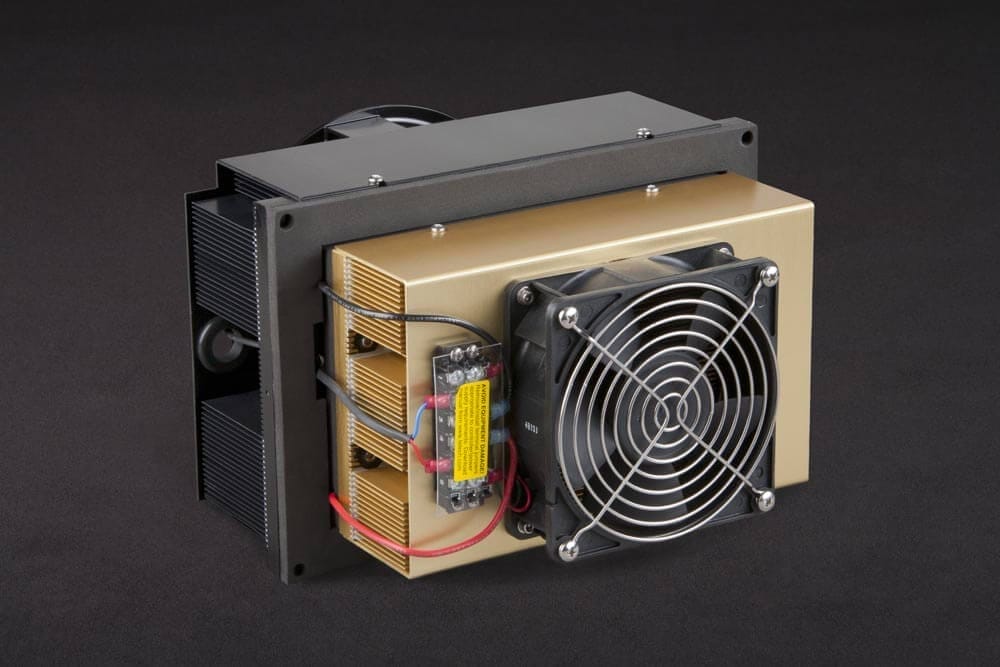

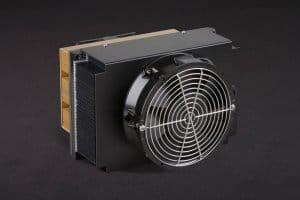

AC-194
Capacity Rating: 189 watts at a 0 °C temperature difference.
Example Applications: Ideal for electronics enclosures, telecommunications equipment, battery boxes and refrigerators.
Features: This cooler is powered by 48 VDC and is rated to maintain the enclosure’s NEMA 4 rating. The hot-side fan is sealed against moisture, and the heat sink uses marine-grade anodizing to prevent corrosion. The finger guards and mounting hardware are stainless steel. The input wires are routed on the cold side of the cooler, making it easy to power via wiring from inside the enclosure although care should be taken so that condensation is not allowed to form on the cold sink. Can be used for heating and cooling. It is compatible with the TC-48-20 series temperature controllers.
In Stock
• Meets NEMA 4 and IP68 (fan) specifications.
• Protected against harsh environments.
• Stainless steel mounting hardware and finger guards.
• All wiring is accessible from inside the enclosure.
• Can be used for heating and cooling (requires heat/cool controller).
• Cools 45 °C below ambient in a 25 °C environment.
• Compact, bonded-fin heat sink and cold sink for minimum size and maximum cooling.
• CE marked and RoHS compliant.
This cooler is powered by 48 VDC and is rated to maintain the enclosure’s NEMA 4 rating. The hot-side fan is sealed against moisture, and the heat sink uses marine-grade anodizing to prevent corrosion. The input wires are routed on the cold side of the cooler, making it easy to power via wiring from inside the enclosure although care should be taken so that condensation is not allowed to form on the cold sink. Compatible with the TC-48-20 series controllers.
AC-194 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)
3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.
| 3D Solid Models |
| Parasolid: AC-194.x_t (best for importing into SolidWorks) See note below before downloading files. |
| STEP: AC-194.stp See note below before downloading files. |
NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the extension back to .x_t or .stp before using.
Compatible With:
-
TC-48-20 OEM
$311.00 Add to cart Product DetailsThe TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request and a sample read and write command programmed in Python is also available for download.
-

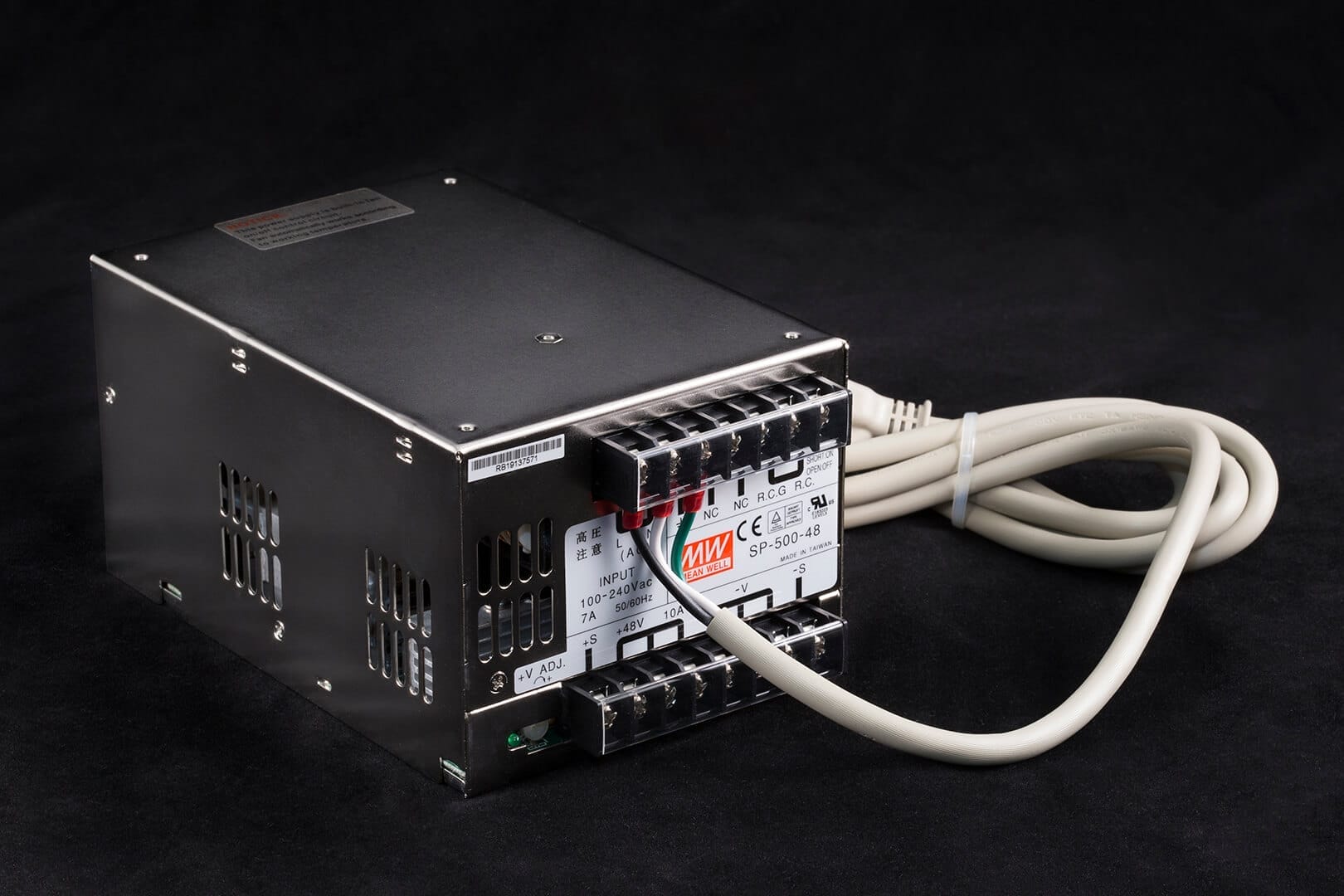

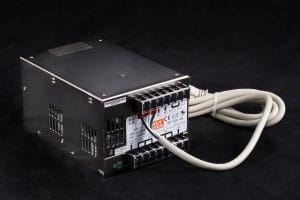

PS-48-10
$237.00 Add to cart Product DetailsA 48 volt DC, fixed-voltage power supply capable of delivering up to 10 amps of current. Power supply is pictured with the included power cord attached. One North-American standard power cord is supplied attached to the power supply. Power cords for the UK, EU, and Italy can be purchased separately.
-
TC-48-20
$506.00 Add to cart Product DetailsThe TC-48-20 is an easy to use yet powerful cool-only or heat-only PWM temperature controller. It is housed in a die-cast aluminum box, incorporates a keypad and display, and is capable of controlling from 0 to 50 volts and up to 20 amps. Two versatile alarm outputs are included, each capable of switching up to 1 amp of current. If a true linear-output control system is desired (for applications extremely sensitive to electrical noise) the TC-48-20 can be used as the control head for high-power, variable-output linear supplies. Most control parameters can be programmed via the built-in keypad, but the controller can also be connected to a computer via an optional RS232 serial cable for more advanced program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request and a sample read and write command programmed in Python is also available for download.
