A 48 volt DC, fixed-voltage power supply capable of delivering up to 10 amps of current. The power supply features a wide input voltage range; no manual selection necessary. One North-American standard power cord is attached and power cords for the UK, EU, and Italy can be purchased separately. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

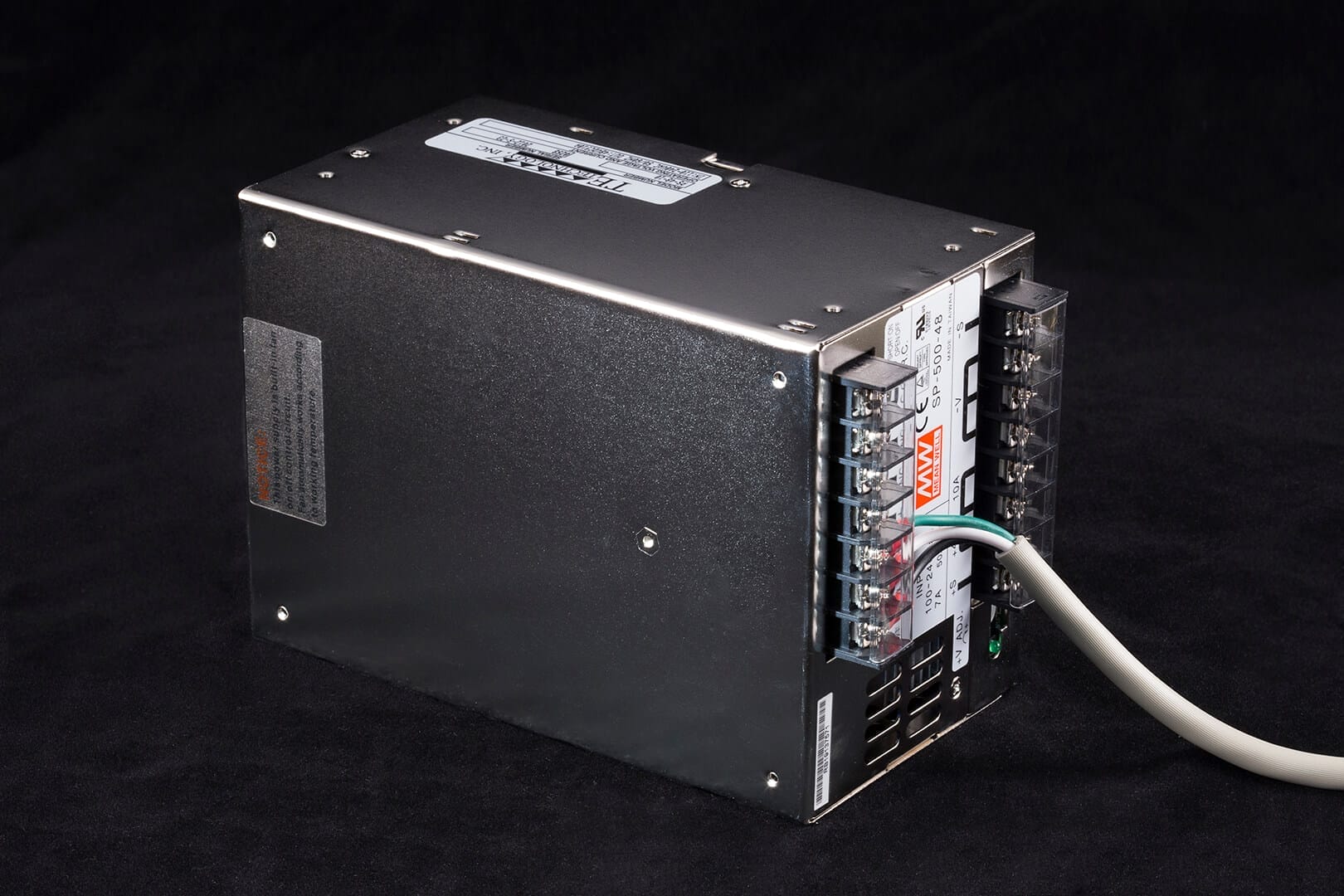

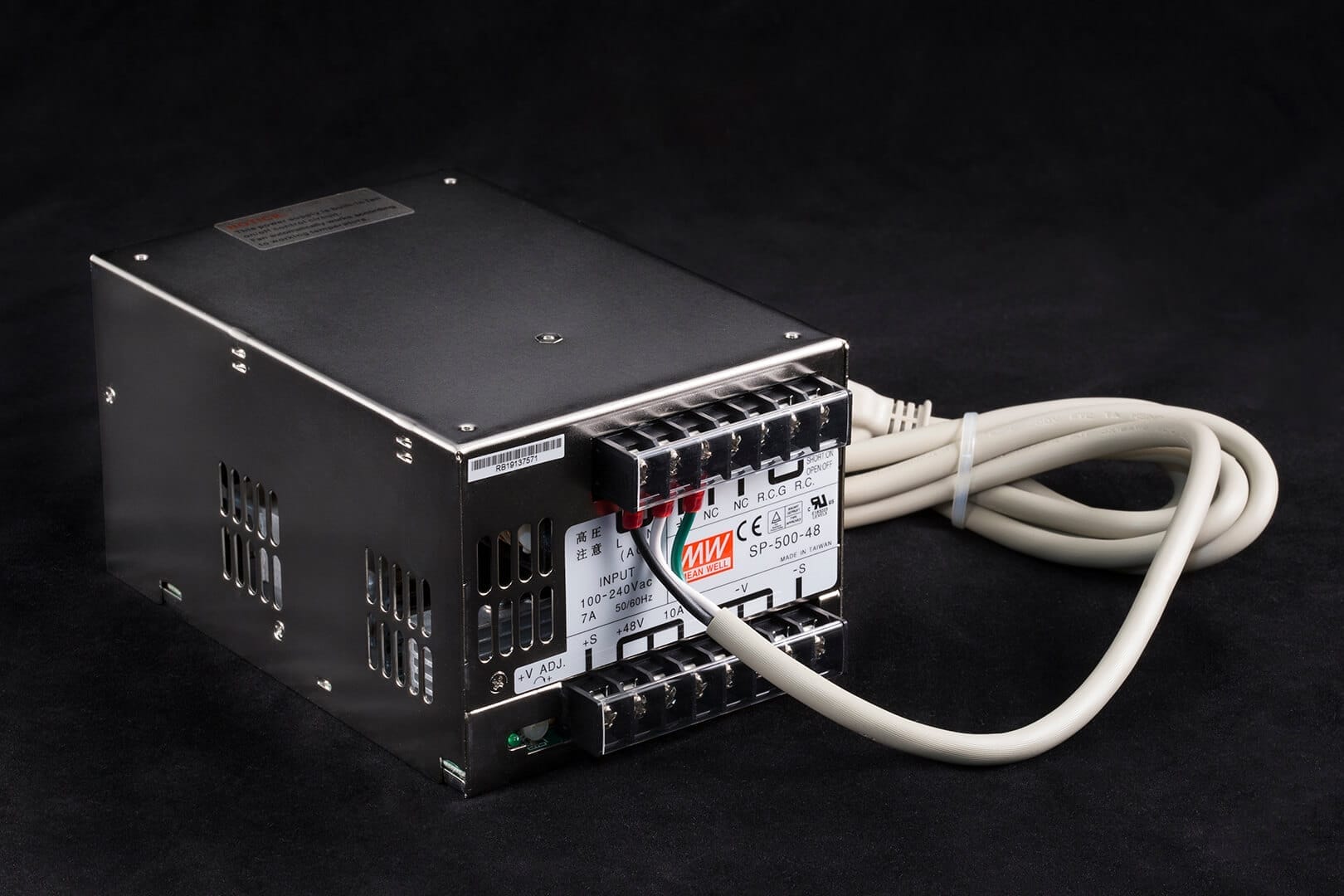

A 48 volt DC, fixed-voltage power supply capable of delivering up to 10 amps of current. Power supply is pictured with the included power cord attached. One North-American standard power cord is supplied attached to the power supply. Power cords for the UK, EU, and Italy can be purchased separately.
A 48 volt DC, fixed-voltage power supply capable of delivering up to 10 amps of current. The power supply features a wide input voltage range; no manual selection necessary. One North-American standard power cord is attached and power cords for the UK, EU, and Italy can be purchased separately.

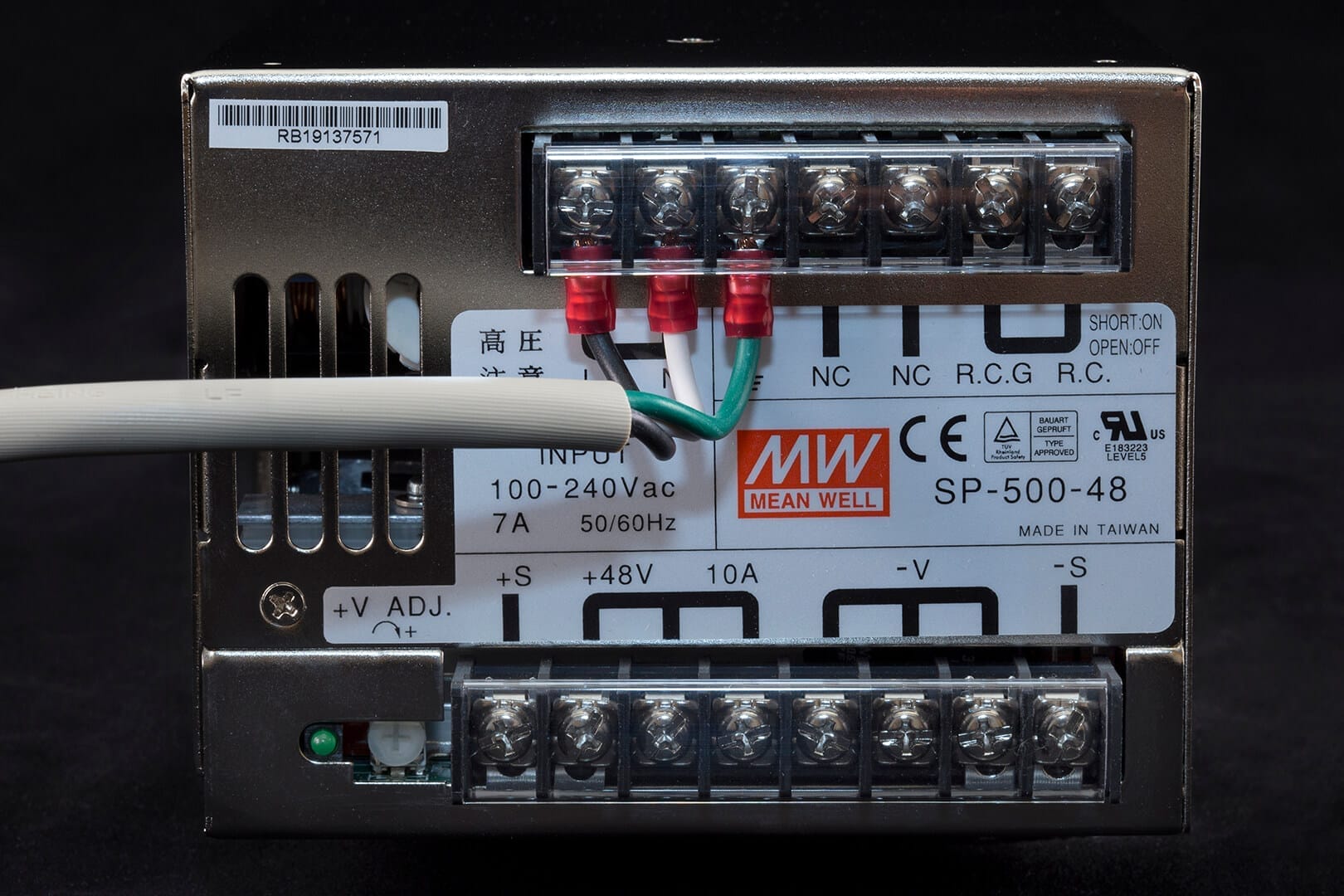

This power supply features an output enable connections on the terminal strip (R.C.G. & R.C.). The output is “on” when the included jumper/short is in place. If the jumper/short is removed the output is “off”. This is a low-voltage, low-current signal that can be used to disable the power supply if the jumper is replaced with a switch or thermostat. The thermostat should be used only as an over-temperature / under-temperature safety switch and not as a regular means of temperature control.
Input Voltage: 88-264 VAC , 47-63 Hz
Input Voltage Range Selection: No selection required, continuous within range.
Power Factor Correction: Yes
Output Voltage: 48 V DC
Output Voltage Adjustment: 41-56 volts via adjustable potentiometer
Maximum Output Current: 10 A
Over-Current Protection: Yes, 105~135% rated output power, automatic recovery.
Dimensions: 184 x 120 x 93 mm

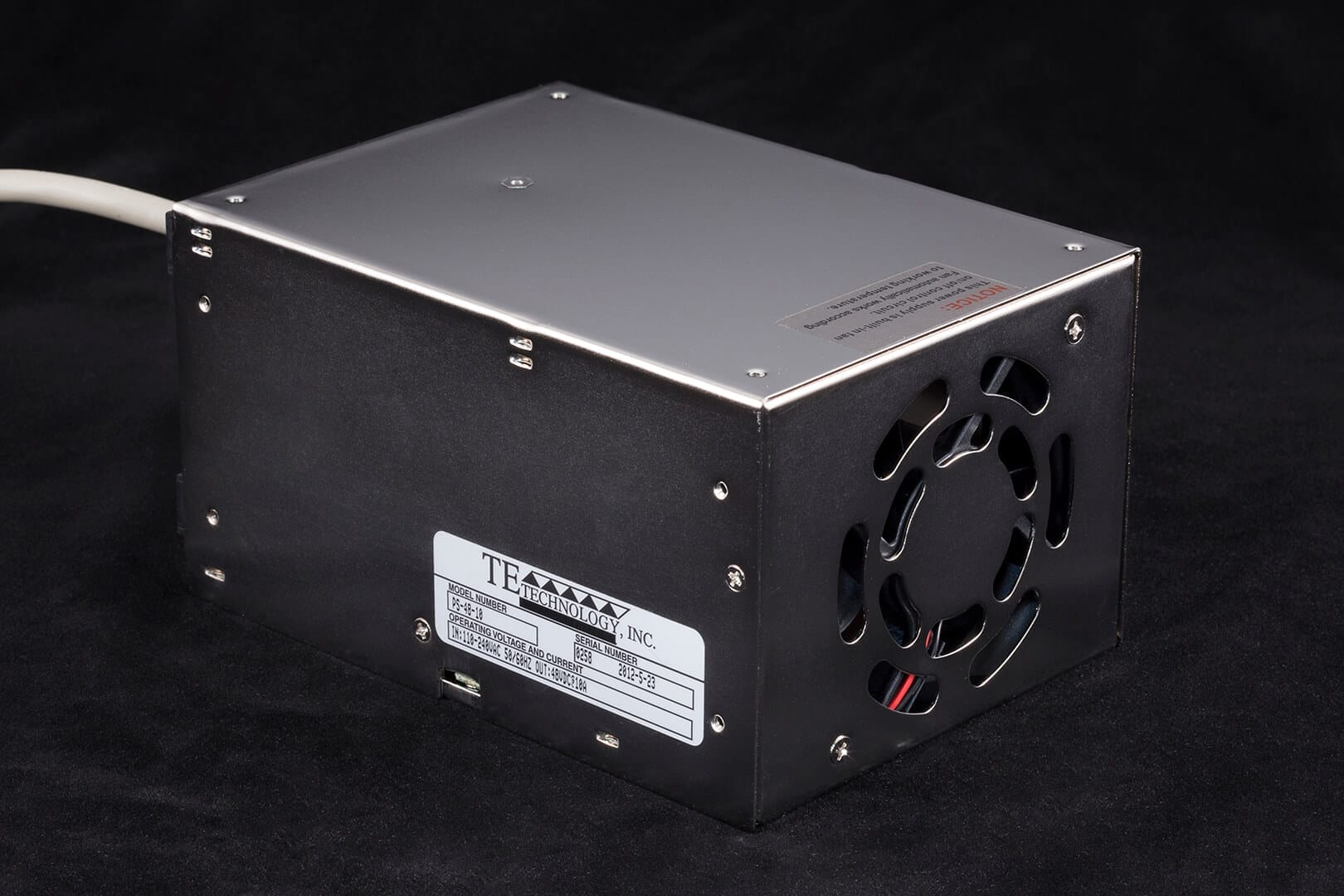

Cooling: Fan cooled, fan speed regulated via internal temperature sensor
Maximum ambient: 50 degrees Celsius. For ambient temperatures above 40 degrees Celsius, derate output current by 4% per degree Celsius (60% at 50 degrees Celsius). For operation below 155 VAC, derate by 0.30% per volt.
PS-48-10 Data Sheet
(Data sheet is for base power supply only; power cord not shown.)
Solid Model: PS-48-10.stp
See note below before downloading files.
NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .sldprt or .stp before using.
