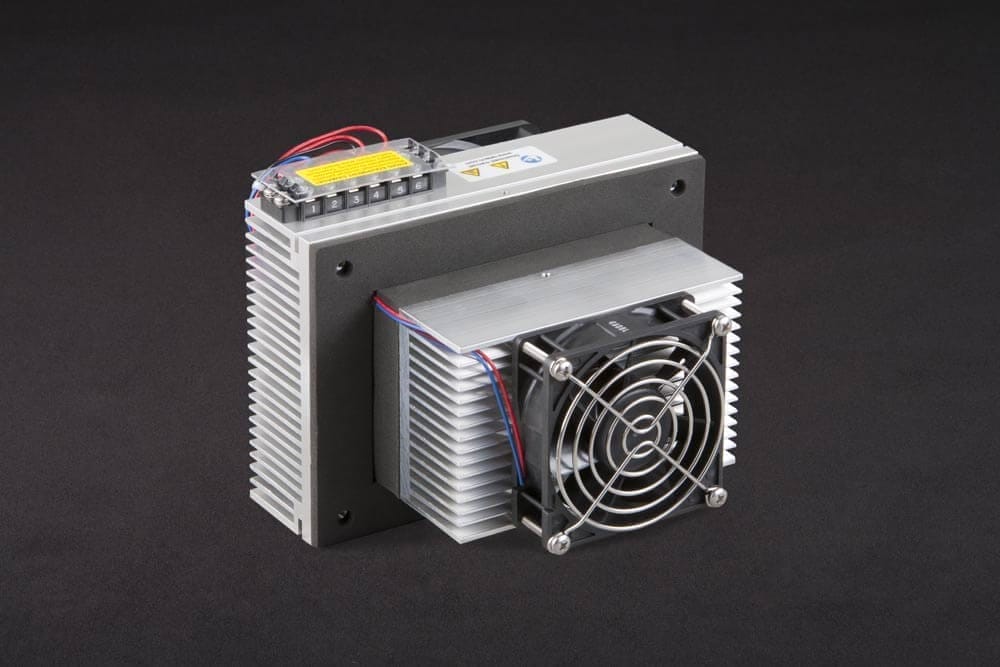

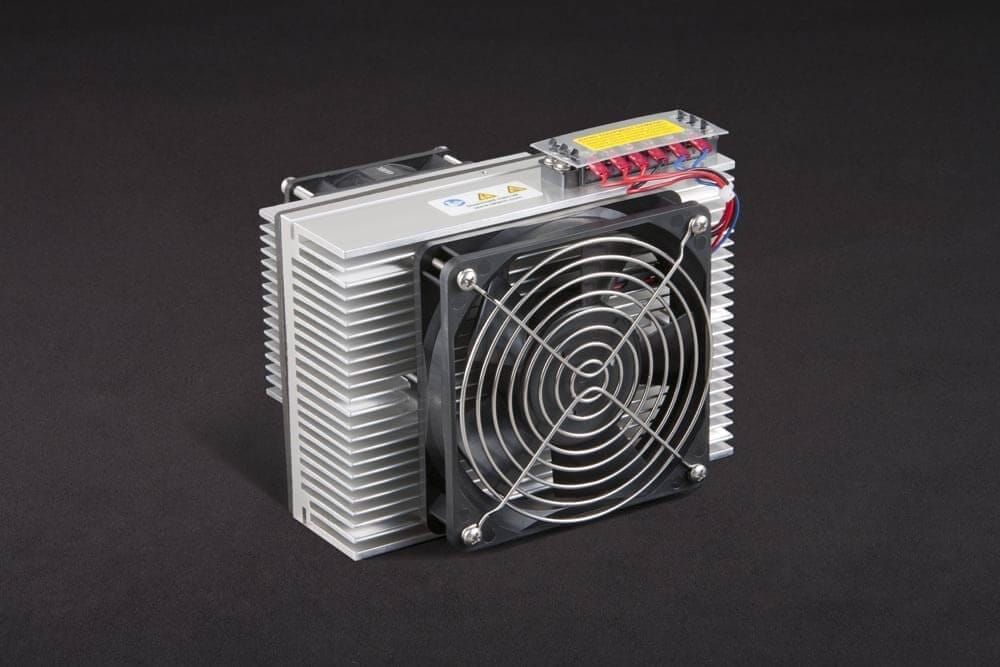

AC-046
AC-046
AC-046
AC-046

AC-046

Capacity Rating: 42 watts at a 0°C temperature difference.
Example Applications: Ideal for small to medium-sized electronic enclosures, refrigerators, and reagent coolers in biomedical equipment.
Features: This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. It uses two thermoelectric modules and our proprietary high-density extruded heat sinks to yield a good combination of performance and low cost. The low power consumption makes this cooler compatible with all of our temperature controllers. Can be used for heating and cooling. Like all of our coolers, it can be easily customized to meet your production requirements: special wiring configurations, smaller heat sinks, different operating voltages, lower power consumption, etcetera.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $375
10 - 49 $364
50 - 99 $353
Add to quote
SKU: 4020 Category:

Capacity Rating: 42 watts at a 0°C temperature difference.
Example Applications: Ideal for small to medium-sized electronic enclosures, refrigerators, and reagent coolers in biomedical equipment.
Features: This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. It uses two thermoelectric modules and our proprietary high-density extruded heat sinks to yield a good combination of performance and low cost. The low power consumption makes this cooler compatible with all of our temperature controllers. Can be used for heating and cooling. Like all of our coolers, it can be easily customized to meet your production requirements: special wiring configurations, smaller heat sinks, different operating voltages, lower power consumption, etcetera. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

• No load cooling to 40°C below ambient.
• Compact, extruded heat sink and cold sink for high performance at low cost.
• Can be used for heating and cooling (requires heat/cool controller).
• Low maintenance with no moving parts, except the fans.
• Operates in any position with minimum noise and vibration.
• CE marked and RoHS compliant.

This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4.  It uses two thermoelectric modules and our proprietary high-density extruded heat sinks to yield a good combination of performance and low cost.  The low power consumption makes this cooler compatible with all of our temperature controllers.  Like all of our coolers, it can be easily customized to meet your production requirements: special wiring configurations, smaller heat sinks, different operating voltages, lower power consumption, etc.

AC-046 Data Sheet (PDF Format)pdf-icon

AC-046 Data Sheet (HTML Format)

Standard Coolers and Temperature Controllers Catalog

AC-046 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

3D Solid Models
Parasolid: AC-046.x_t (best for importing into SolidWorks)
See note below before downloading files.
STEP: AC-046.stp
See note below before downloading files.

NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t or .stp before using.
