The TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request and a sample read and write command programmed in Python is also available for download.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $311
10 - 49 $302
50 - 99 $284
Add to quote
SKU: 3011 Category:

The TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request. A sample read and write command programmed in Python (2.7) is also available for download from the SOFTWARE tab on this web page. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

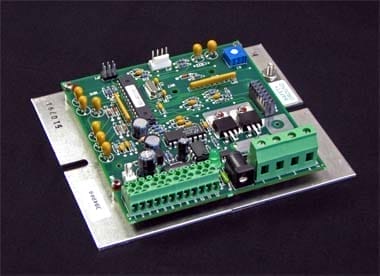

The TC-48-20 OEM is a basic version of the TC-48-20 controller that is a component for Original Equipment Manufacturers (OEM’s) that want to integrate the controller in a system where the display, keypad, and box cover are not needed. The controller is shipped as the basic control circuit mounted on an aluminum panel. One standard thermistor (model MP-3193) and a software CD are included.

FEATURES

  • Single or dual power supply configurations allow a wide range of output voltages
  • Single power supply configuration: ≥9 VDC, <50 VDC input, powering both controller and TE device
  • Dual power supply configuration: ≥9 VDC, <50 VDC at 150 mA minimum for controller circuitry ≥0 VDC, <50 VDC for TE device
  • Maximum output current: 20 A combined TE device and alarm current (Note: controller does not have current limiting capability or internal fuse protection)
  • Cool-only or heat-only control modes, menu selectable via software
  • Temperature control range: -20 C to +100 C using the MP-3193 thermistor supplied with the controller, or -20 C to +85 C using a thermistor equivalent to 10 k-ohm, curve “B” from YSI Temperature, Inc.
  • Optional secondary thermistor input for sensing alarm conditions
  • Two available alarm outputs, capable of sinking up to 1 A each, for triggering alarms based on the primary (control) sensor and/or secondary sensor
  • Best-case control stability 0.1 C (when controlling a cold plate)
  • Proportional (P) bandwidth adjustment: 0.5 C to 100.0 C
  • Integral gain (I) adjustment: 0.00 to 10.00 repeats per minute
  • Derivative gain (D) adjustment: 0.00 to 10.00 cycles per minute
    • Output: square wave, 337 Hz, pulse-width modulated, with soft start
  • Analog proportional output signal for controlling programmable linear power supplies
  • Operating temperature range (non-condensing, total combined alarm and load current): Minimum: 0 C, Maximum: 48 C in horizontal orientation, 20 A output; 55 C vertical orientation, 20 A output; 53 C horizontal orientation, 17 A output; 59 C vertical orientation, 17 A output.
  • Computer programmable via RS 232 communication (An optional RS-232 cable, part number MP-3023, is required)
  • RoHS compliant

APPLICATION
The TC-48-20 OEM, like the standard TC-48-20, is a cool-only or heat-only thermoelectric temperature controller capable of controlling up to 50 volts and 20 amps. The controller uses one thermistor for temperature feedback, and a second thermistor can be attached for monitoring and alarm purposes. (One standard thermistors is included; additional thermistors can be purchased separately.) The controller is mounted to an aluminum plate, but is otherwise un-enclosed. All controller settings are communicated via RS232.

The available software allows the user to quickly program the controller and provides data graphing and data logging as well. The software and manual are not included with the product, but they can be down-loaded from the links below.

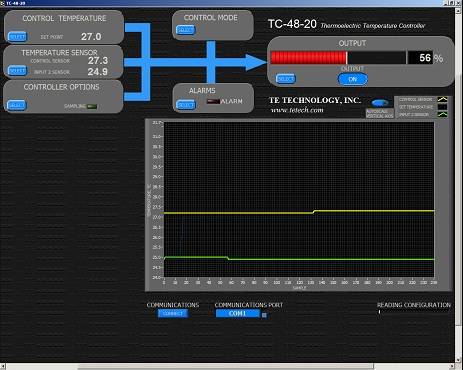

TC-48-20software

All of the controller parameters can be adjusted using this software. (The MP-3023 RS-232 cable is optional and can be purchased separately; the software is always included.) The command set for the controller is also provided to allow the creation of custom software applications with other computers, such as National Instruments LabVIEW, for example. The GUI’s LabVIEW source code (version 2011 and higher) is also available upon request. A sample read and write command programmed in Python (2.7) is also available for download from the SOFTWARE tab on this web page.

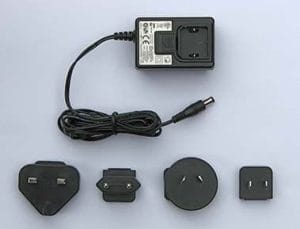

The TC-48-20 OEM controller regulates the output power to the TE device (or DC heater) using pulse-width modulation (PWM). By choosing the appropriate external power supply(s), the controller can control loads from 0 to <50 VDC via pulse-width modulation with the onboard power transistors. (When controlling voltages of less than 9 volts, a small additional power supply (PS-15-0.4) must be used to power the controller’s microprocessor.) Two alarm outputs, each capable of controlling up to 1 A, can be used to control other loads such as pump, fans and resistive heaters, further enhancing the controller’s capabilities.

If a true linear-output control system is desired, the TC-48-20 OEM can be used as the control head for controlling high-power, linear-output supplies. Some of these linear output supplies are available as basic switching power supplies, allowing the user to create a relatively low cost linear control system which generates much less waste heat when compared to a typical linear system. The linear output eliminates the PWM switching and is useful for Photo Multiplier Tube (PMT) coolers and other applications that are highly sensitive to electronic noise.

Download TC-48-20 Manual
pdf-icon

Download Temperature Sensor Attachment Manual
pdf-icon

Standard Coolers and Temperature Controllers Catalog

Download TC-48-20 OEM Software (See also Software License Agreement)

Download TC-48-20-Python.py Python code example (simple read and write command)

TC-48-20 OEM 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties ofthe product. (However, wire leads are not shown in the model.) This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

3D Solid Models
Parasolid: TC-48-20_OEM.x_t (best for importing into SolidWorks)
See note below before downloading files.
STEP: TC-48-20_OEM.stp
See note below before downloading files.

NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t or .stp before using.
