Description: Our smallest, high-accuracy thermistor with a 0.9 mm diameter sensor heat and 34 gauge nickel wire. Nominal 15K ohms resistance at 25 °C, provides a control range from -20 °C to +100 °C. It offers a +/-0.1 °C tolerance within 0 °C to +70 °C. Thermistor can be mounted in a hole or on a surface. The wire leads can be extended with standard copper wire of any gauge recommended for the controllers (no special alloy necessary).
Search Products
MP-4067
Description: Our smallest thermistor with a 0.9 mm diameter sensor heat and 34 gauge nickel wire. High accuracy tolerance of +/-0.1 °C within 0 °C to +70 °C range. Nominal 15K ohms resistance at 25 °C, provides a typical control range from -20 °C to +100 °C. The thermistor can be mounted in a hole or on a surface. The wire leads can be extended with standard copper wire of any gauge recommended for the controllers (no special alloy necessary).
Out of Stock
MP-4067 Precision Temperature Sensor
The MP-4067 is a high-precision, small-form-factor temperature sensor designed for accuracy and versatility. Compatible with all our temperature controllers, this 15K ohm thermistor is ideal for both surface-mount and embedded applications.
Key Specifications:
- Precision Accuracy: +/- 0.1 C (within the 0 C to 70 C range)
- Operating Range: -20 C to +100 C

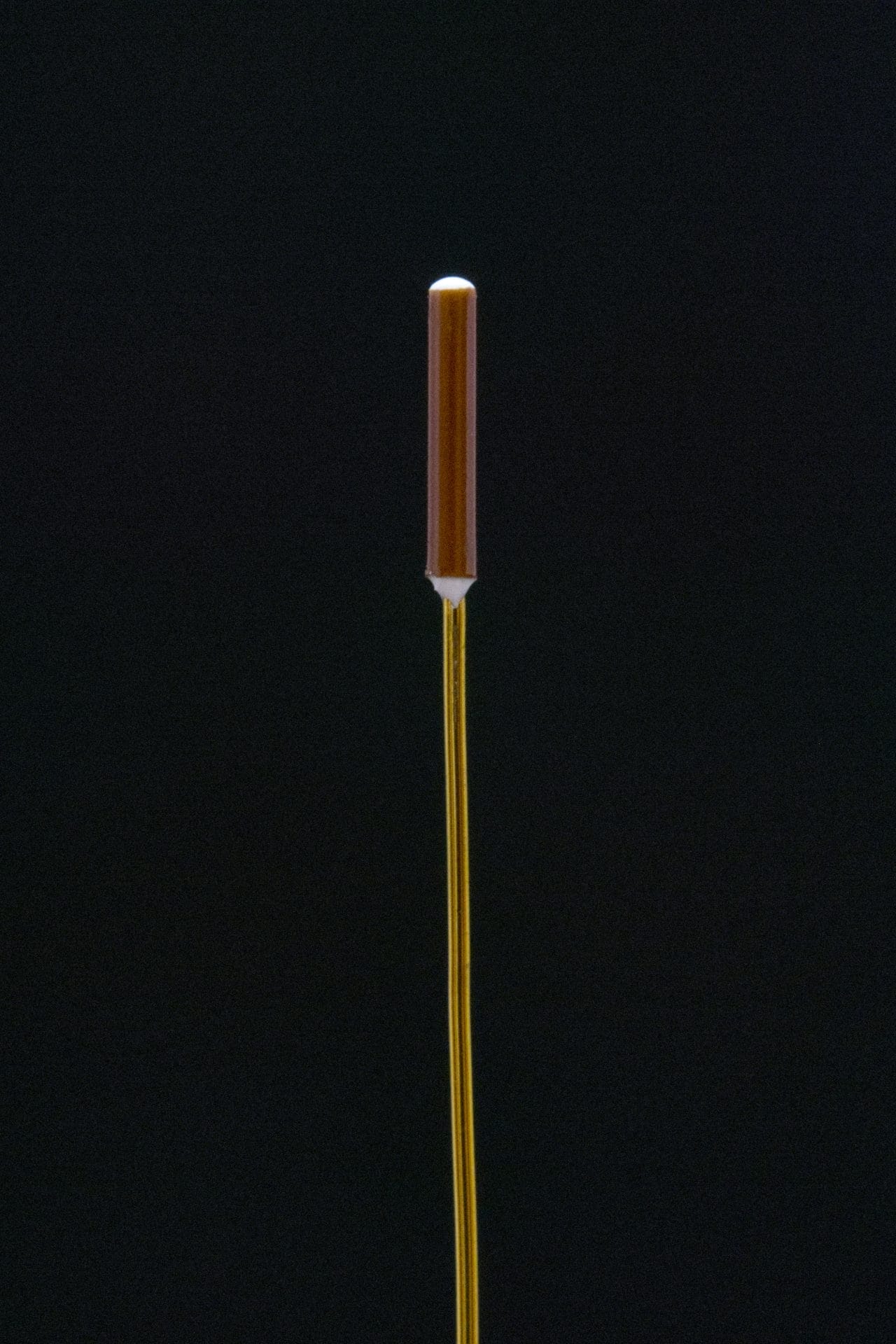

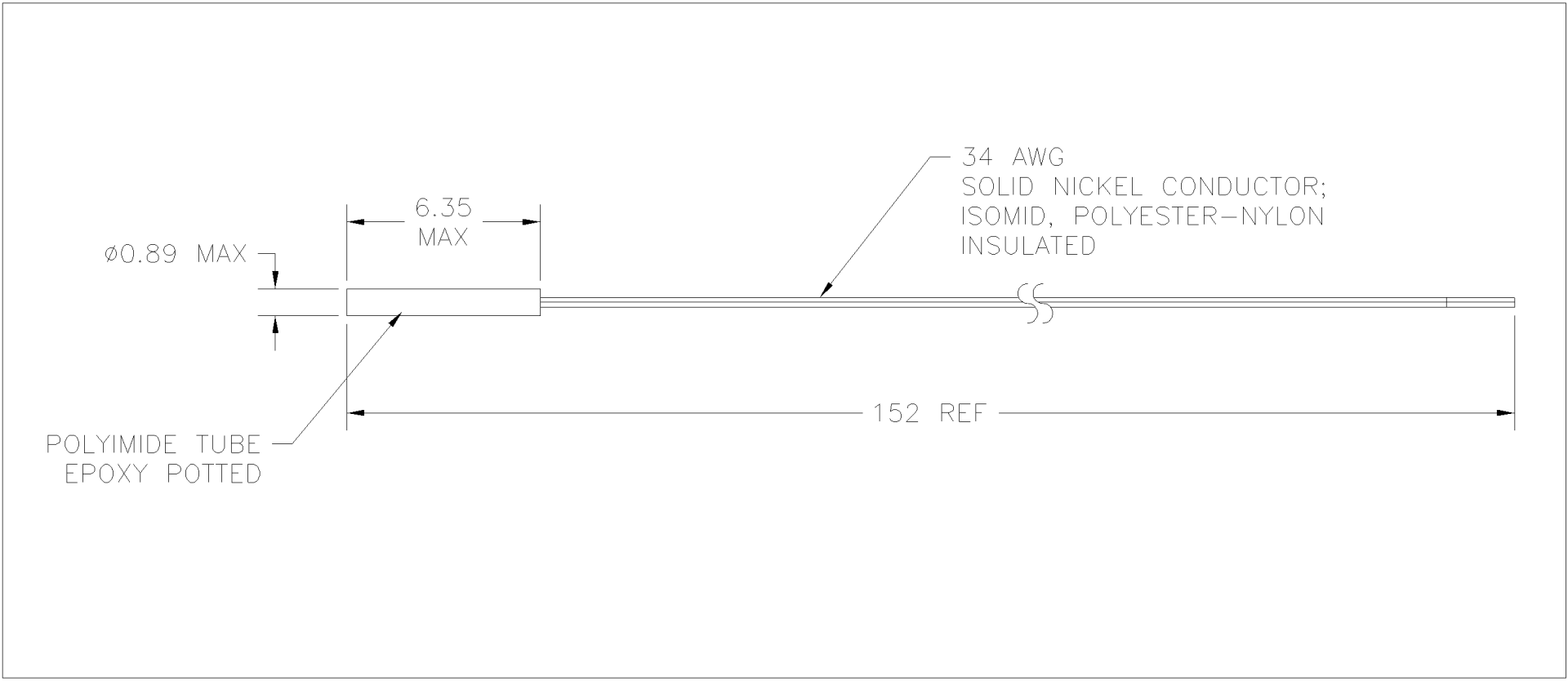

- Sensor Head Dimensions: 0.9 mm diameter x 6.35 mm length
- Resistance: 15K ohms at 25 C (TS-67/15K-1 curve in TE Technology temperature controllers)
- Lead Wires: 152 mm length, 34 AWG (0.16 mm diameter), solid nickel
Thermal Performance:
The sensor utilizes thin, solid nickel wire leads rather than copper. Because nickel has lower thermal conductivity, it minimizes heat transfer (thermal shunting) through the wires. This helps ensure the measurement head remains at the true temperature of the target, resulting in superior accuracy.
Installation & Protection:
- Mounting: Can be inserted into drilled holes or mounted directly to surfaces. When mounting in a hole, use a thermally conductive gap filler such as epoxy or thermal paste.
- Wire Care: The wire insulation is delicate. If routing leads over sharp metal edges, we recommend applying heat shrink or epoxy to the wires, or rounding off the edges to prevent electrical shorts.
- Extensions: For longer distances, you can extend the leads using standard copper wire of any gauge suitable for use with TE Technology Temperature Controllers. No special alloys are required for extensions.
Connection Note:
This sensor features unterminated leads (no connectors). To use this with the TC-24-10 controller, you must add your own wire extensions and “fast-on” spade connectors.
MP-4067 Thermistor 15K @ 25 °C Nickel Wires
