MP-2986 Display + Keypad
The MP-2986 display and keypad is a optional accessory used on the TC-36-25-RS232 or TC-36-25-RS485 controller.
In Stock
The MP-2986 display and keypad is a optional accessory used on the TC-36-25- RS232 or the TC-36-25-RS485 controller. It provides a convenient way of showing and adjusting the temperature set point or showing the actual temperature being sensed when the TC-36-25-RS232/TC-36-25-RS485 is operating as a stand-alone controller.

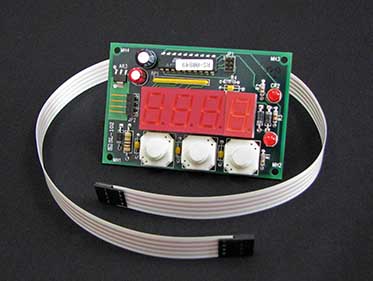

Three buttons are located on the circuit board. One toggles the display between the actual temperature and the set temperature. The other two buttons are used to adjust the set temperature up or down when the set temperature is being displayed.
For a heat/cool controller with display and keypad integrated into an aluminum enclosure see the TC-720.
SPECIFICATIONS
-
4-digit display allows user to read both the actual and the set temperature
-
Set temperature can be adjusted up or down
-
0.01 C Resolution
-
83 mm x 56 mm footprint
-
45 cm cable length
-
Manual is included on CD ROM
-
Power is supplied by the TC-36-25-RS232/TC-36-25-RS485 controller
-
RoHS Compliant
MP-2986 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)
3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties of the product. (However, wire leads are not shown in the model.) This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.
3D Solid Models |
NOT YET AVAILABLE See note below before downloading files. |
NOT YET AVAILABLE See note below before downloading files. |
NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .igs, .sldprt or .stp before using.
Compatible With:
-
TC-36-25-RS232
The TC-36-25 RS232 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. In addition, Windows-compatible software and an RS232 cable are provided for direct communication via the serial communication port. LabVIEW-based GUI available as a download, the LabVIEW source code is available free of charge upon request, and a sample read and write command programmed in Python is also available for download.
-
TC-36-25-RS485
The TC-36-25 RS485 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. Multiple controllers can be daisy-chained together and run off a single communication port using the optional RS485 Adapter (USB). Windows-compatible software is provided for easily programming the controller. The LabVIEW-based software is shipped as a stand-alone program, the LabVIEW source code (version 2011 and higher) is available free of charge upon request, and a sample read and write command programmed in Python is also available for download.
