Description: A larger epoxy bead thermistor with 24 gauge wire and terminated ends. 15K ohms at 25 °C, for measuring from -20 °C to +100 °C. “Fast-On” terminations make this thermistor compatible with the TC-24-10 temperature controller and can be cut off when using with other controllers.
Description: A larger epoxy bead thermistor with 24 gauge wire and terminated ends. 15K ohms at 25 °C, for measuring from -20 °C to +100 °C. “Fast-On” terminations make this compatible with the TC-24-10; the terminations can be cut off when using with other controllers.

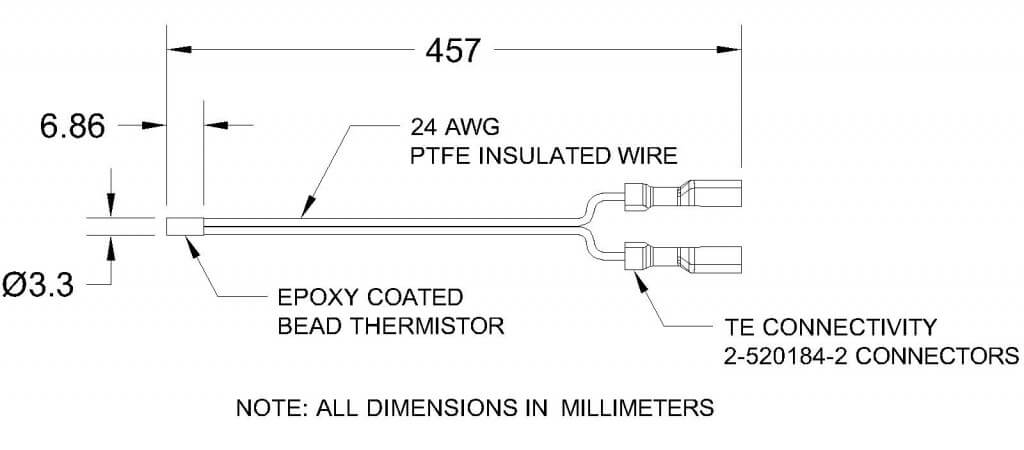

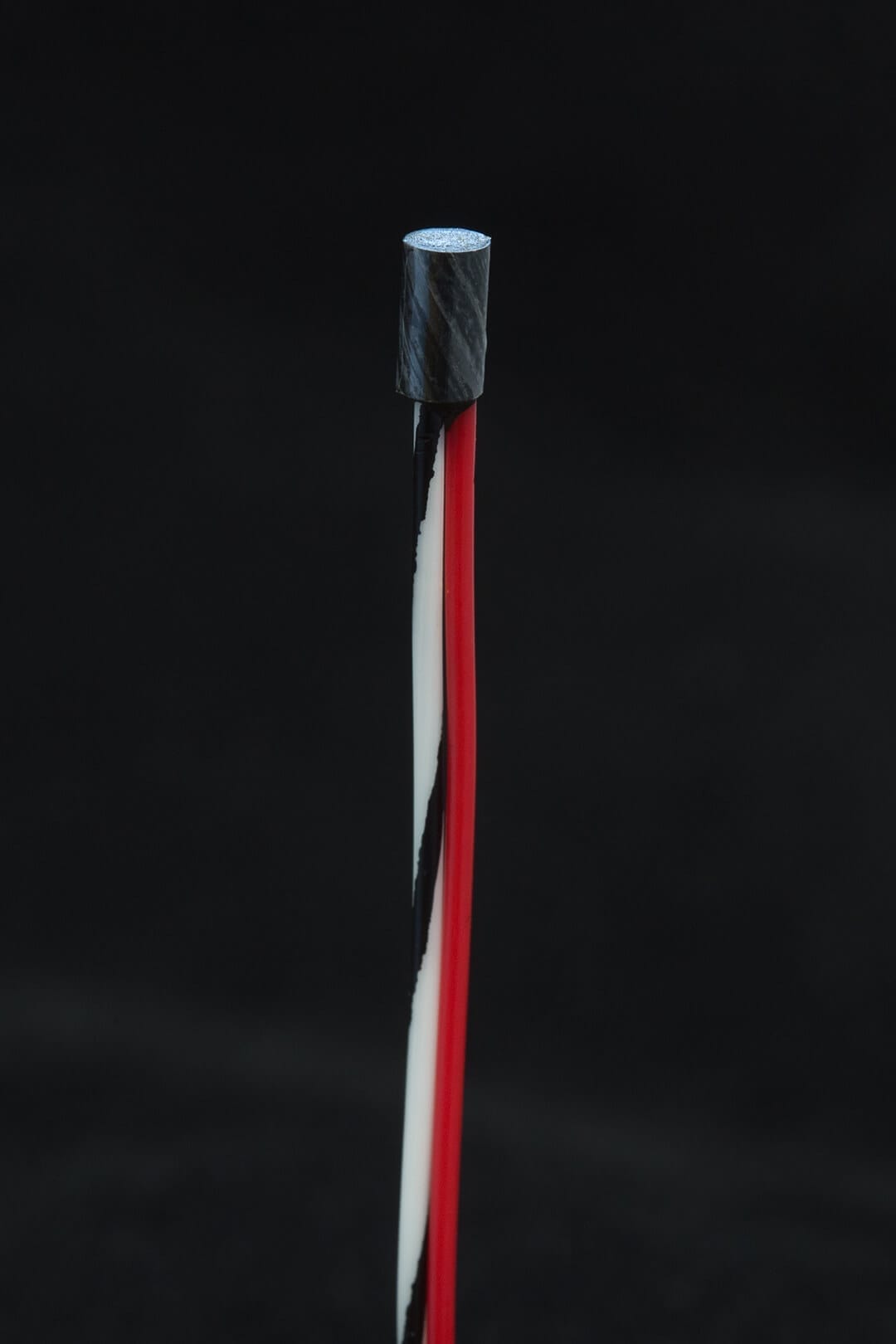

A larger epoxy bead thermistor, with the head being about 3.3 mm in diameter and about 7 mm long. The overall length is 457 mm. The sensor is 15K ohms at @ 25 °C (TS-67/ 15K-1 curve). Wire is 24 gauge stranded, and they are terminated with 0.25 inch female “Fast-On” terminals for use with the TC-24-10 controller. The sensor accuracy is +/- 1°C between 0 and 100 °C.
