HP-199-1.4-0.8

High Performance modules have one of two features that set them apart from our standard devices. Some achieve a higher temperature difference (DTmax) through the use of premium quality thermoelectric material. Others have more heat pumping capacity (Qmax) for any given size through the use of shorter thermoelectric elements or higher element packing densities. The higher DTmax is useful for reducing power consumption and achieving ultimate performance when you need a high temperature from the cold plate to the heat sink. Higher Qmax modules are useful for reducing the module count and improving the C.O.P. in systems that have lower temperature differences. These modules are rated for use up to 80°C.

Clear
Dynamic Pricing
Quantity   Price
Variation Type: Unpotted
1 - 9 $37.80
10 - 24 $35.20
25 - 99 $34.50
100+ Please Call
Variation Type: Potted
1 - 9 $39.10
10 - 24 $36.50
25 - 99 $35.80
100+ Please Call

High Performance modules have one of two features that set them apart from our standard devices. Some achieve a higher temperature difference (DTmax) through the use of premium quality thermoelectric material. Others have more heat pumping capacity (Qmax) for any given size through the use of shorter thermoelectric elements or higher element packing densities. The higher DTmax is useful for reducing power consumption and achieving ultimate performance when you need a high temperature from the cold plate to the heat sink. Higher Qmax modules are useful for reducing the module count and improving the C.O.P. in systems that have lower temperature differences. These modules are rated for use up to 80°C.

Parameters of Category: High Performance Modules
Imax 11.3 amp(s)
Qmax 172 watt(s)
Vmax 24.6 volt(s)
DT max 69 Th=300K

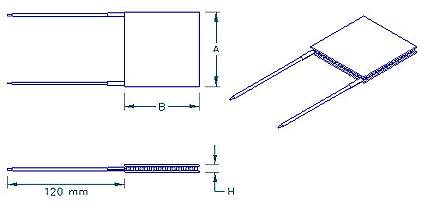

A 40 mm
B 40 mm
H 3.2 mm

Specification Sheet
