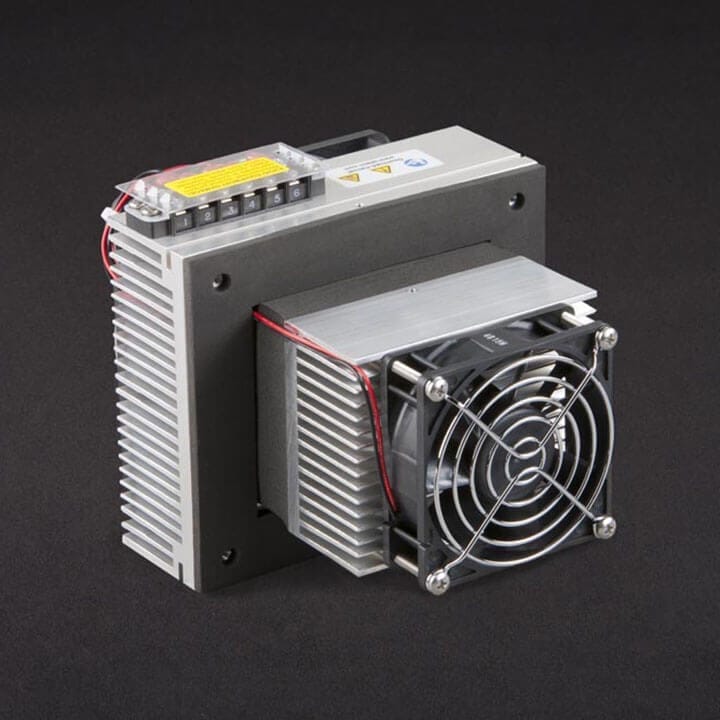

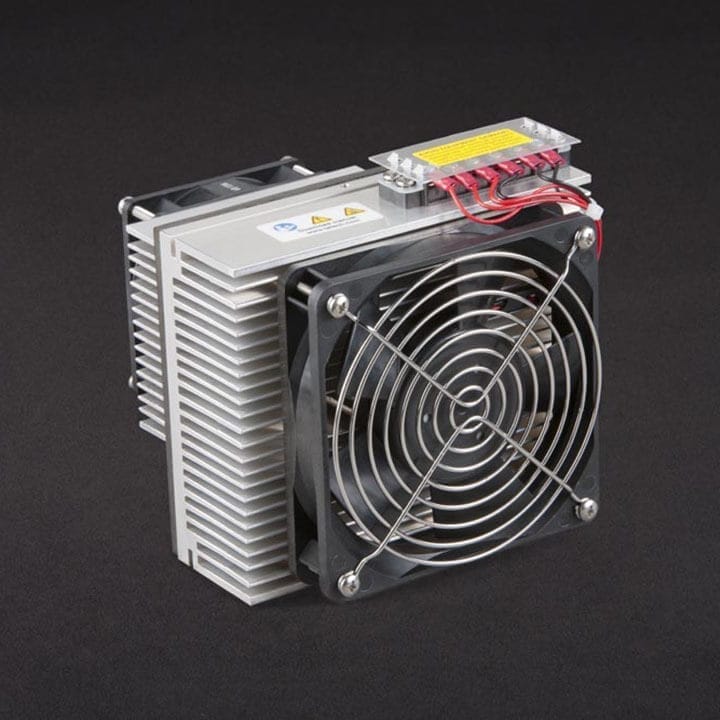

AC-027
AC-027
AC-027
AC-027

AC-027

Capacity Rating: 24 watts at a 0°C temperature difference.
Example Applications: Ideal for small electronic enclosures, small refrigerators and OEM applications.
Features: This is our smallest air cooler. It is powered by 12 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. Like all of our air coolers, it incorporates extender blocks between the thermoelectric module and the cold sink. These enable the cooler to have un-impeded airflow on the cold side while still allowing for up to 25 mm thick insulation in the walls of the enclosure. Plus, it also improves performance at high temperature differences. Can be used for heating and cooling. This cooler has the lowest power consumption of any of our standard air coolers making it compatible with all of our temperature controllers.

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $329
10 - 49 $320
50 - 99 $302
Add to quote
SKU: 4010 Category:

Capacity Rating: 24 watts at a 0°C temperature difference.
Example Applications: Ideal for small electronic enclosures, small refrigerators and OEM applications.
Features: This is our smallest air cooler. It is powered by 12 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. Like all of our air coolers, it incorporates extender blocks between the thermoelectric module and the cold sink. These enable the cooler to have un-impeded airflow on the cold side while still allowing for up to 25 mm thick insulation in the walls of the enclosure. Plus, it also improves performance at high temperature differences. Can be used for heating and cooling. This cooler has the lowest power consumption of any of our standard air coolers making it compatible with all of our temperature controllers. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

• Removes 24 W from an enclosure while maintaining internal temperature at ambient temperature, or can remove up to 6 W at 35°C below ambient.

• Compact, extruded heat sink and cold sink for high performance at low cost.

• Low maintenance with no moving parts, except the fans.

• Can be used for heating and cooling (requires heat/cool controller).

• Operates in any position with minimum noise and vibration.

• CE Marked and RoHS compliant.

This is our smallest air cooler. It is powered by 12 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4.  Like all of our air coolers, it incorporates extender blocks between the thermoelectric module and the cold sink.  These enable the cooler to have un-impeded airflow on the cold side while still allowing for up to 25 mm thick insulation in the walls of the enclosure.  Plus, it also improves performance at high temperature differences.  This cooler has the lowest power consumption of any of our standard air coolers making it compatible with all of our temperature controllers.

AC-027 Data Sheet (PDF Format)pdf-icon

AC-027 Data Sheet (HTML Format)

Standard Coolers and Temperature Controllers Catalog

AC-027 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

3D Solid Models
Parasolid: AC-027.x_t (best for importing into SolidWorks)
See note below before downloading files.
STEP: AC-027.stp
See note below before downloading files.

NOTE WHEN DOWNLOADING FILES: When saving a solid model some browsers change the name of the file extension. If this happens save the file to your computer using the “Save link as…” option and then rename the file extension back to the appropriate type before using. (PC Users: Right click on the file link and select “Save link as…” from the menu. Mac Users: Hold the ‘Ctrl’ button on your keyboard while clicking on the file link and select “Save link as…” from the menu.) Alternatively, you can download as normal and rename the .htm or .html extension back to .x_t or .stp before using.

Compatible With:
