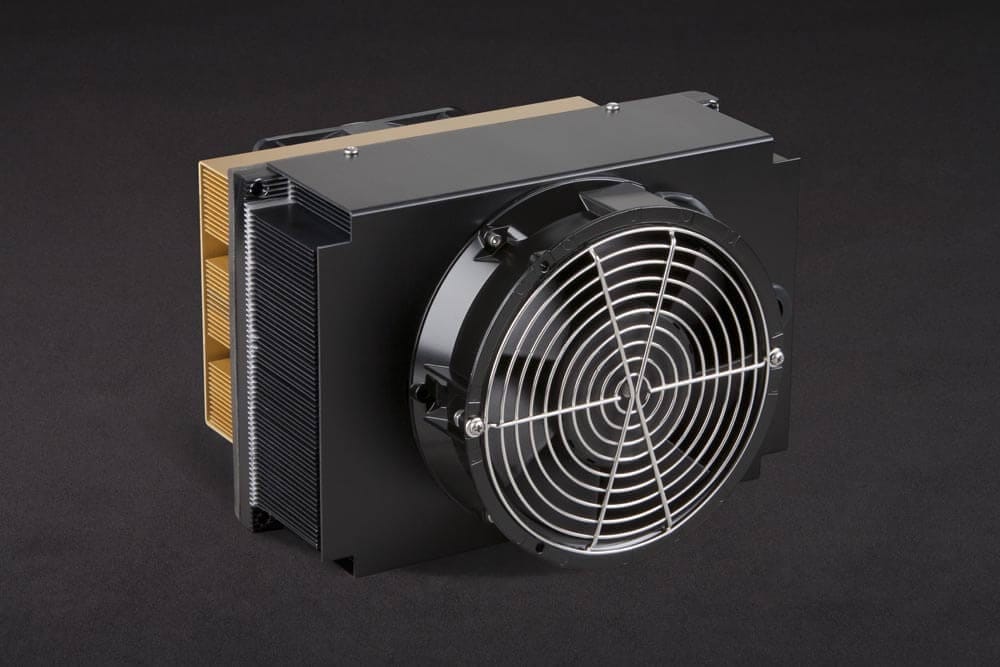

AC-140

Capacity Rating: 139 watts at a 0°C temperature difference.
Example Applications: Electronic equipment enclosures, telecommunications equipment, and camera enclosures.
Features: Specially designed to remove heat from an enclosure while maintaining the internal temperature at or near ambient. Low power consumption and high efficiency yield low operating costs and make it a good choice when the power supply must be located inside the enclosure. It has a sealed fan, corrosion protection, and maintains an enclosure’s NEMA 4 rating. Compatible with all of TE Technology’s temperature controllers. Multiple units can be easily controlled by one temperature controller.

SKU: 4040. Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $899
10 - 49 $879
50 - 99 $861
100 - 249 $835

Capacity Rating: 139 watts at a 0°C temperature difference.
Example Applications: Electronic equipment enclosures, telecommunications equipment, and camera enclosures.
Features: Specially designed to remove heat from an enclosure while maintaining the internal temperature at or near ambient. Low power consumption and high efficiency yield low operating costs and make it a good choice when the power supply must be located inside the enclosure. It has a sealed fan, corrosion protection, and maintains an enclosure’s NEMA 4 rating. Compatible with all of TE Technology’s temperature controllers. Multiple units can be easily controlled by one temperature controller.

• High efficiency design.
• Multiple units can be operated by one temperature controller.
• Protected against harsh environments –meets NEMA 4 and IP68 (fan) specifications.
• Removes 139 watts from an enclosure while maintaining internal temperature at ambient temperature.
• Low power consumption reduces operating costs and makes this cooler a good choice for applications where the power supply is located inside the enclosure.
• CE marked and RoHS compliant.

This cooler is specially designed for low power consumption and high efficiency. Its intent is to remove heat from an enclosure while maintaining the internal temperature at or near ambient–it is not typically used to achieve refrigeration temperatures.  So, this cooler is ideal for applications where the goal is to prevent an electronic equipment enclosure from overheating. It can, as with all of our coolers, both heat and cool when used with the proper temperature controller.

The low power consumption yields low operating costs and also means that the cooler’s power supply will generate less waste heat.  Thus, the power supply has less of an impact when it is located inside the enclosure.

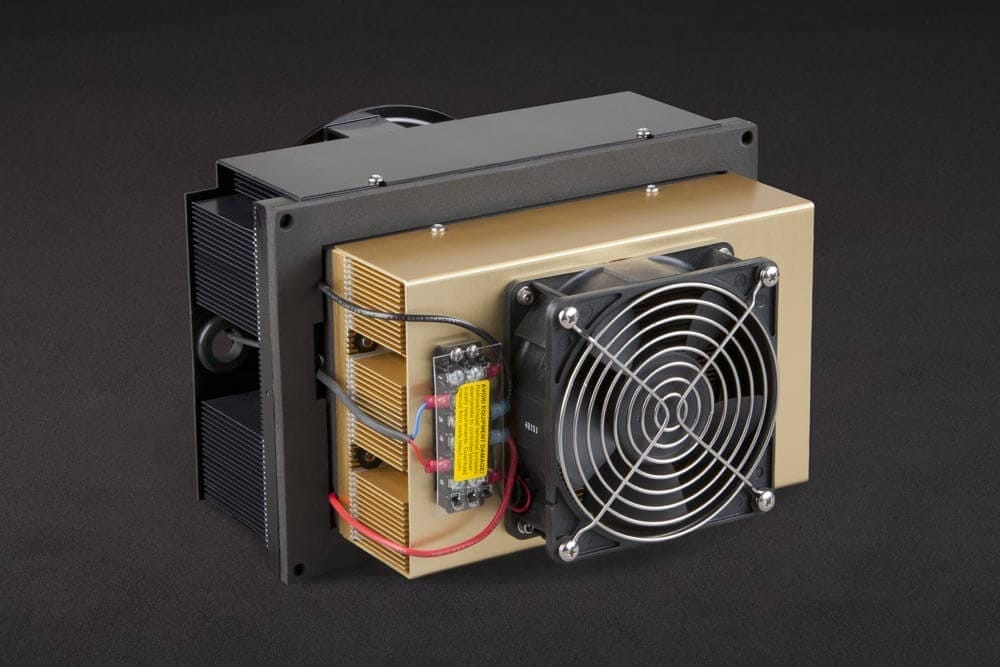

The cooler is powered by 24 VDC and works with a wide range of temperature controllers. If you need more capacity, or need to distribute the cooling throughout larger cabinet, you can parallel multiple AC-140 coolers and have them all regulated by one temperature controller. The power input wires are routed on the cold side of the cooler and make it easy to connect the wiring from inside the enclosure. (As always care should be taken so that condensation is not allowed to form on the cold side heat exchanger where it could come in contact with the power wires.)

Finally, the AC-140 incorporates environmental protection.  The hot-side fan is sealed against moisture, the heat sink uses marine-grade anodizing to prevent corrosion, and the unit is rated to maintain the enclosure’s NEMA 4 rating.

Note:  Larger power supplies are used when controlling multiple units with one temperature controller.

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

AC-140 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.

Compatible with:

  • TC-24-10.jpg

    TC-24-10

    $119.00

    The Model TC-24-10 is a RoHS compliant proportional-integral (PI) temperature controller developed for applications requiring a low cost, basic temperature controller. Set-point and tuning adjustments are made via potentiometer. It can modulate power from 9V up to 26 V at currents up to 10 A when using a single power supply. The controller can also modulate from 0 V up to 50 V when using two power supplies, making this a good choice for controlling low-voltage modules. As with all of our controllers, a standard temperature sensor (15K thermistor) is included. When it is ordered with a thermoelectric cooling assembly and a power supply, the necessary hook-up cables are also included.

    Product DetailsQuick View
  • TC-48-20.jpg

    TC-48-20

    $299.00

    The TC-48-20 is an easy to use yet powerful cool-only or heat-only PWM temperature controller. It is housed in a die-cast aluinum box, incorporates a keypad and display, and is capable of controlling from 0 to 50 volts and up to 20 amps. Two versatile alarm outputs are included, each capable of switching up to 1 amp of current. If a true linear-output control system is desired (for applications extremely sensitive to electrical noise) the TC-48-20 can be used as the control head for high-power, variable-output linear supplies. Most control parameters can be programmed via the built-in keypad, but the controller can also be connected to a computer via an optional RS232 serial cable for more advanced program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-48-20%20OEM.jpg

    TC-48-20 OEM

    $189.00

    The TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-36-25-RS485.jpg

    TC-36-25-RS485

    $459.00

    The Model TC-36-25 RS485 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. Multiple controllers can be daisy-chained together and run off a single communication port using the optional RS485 Adapter (USB). Windows-compatible software is provided for easily programming the controller. Also, the necessary hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is available upon request.

    Product DetailsQuick View
  • TC-720 Temperature Controller

    TC-720

    $618.00

    The TC-720 is a bipolar, heat and cool, thermoelectric temperature controller with USB communications. It is capable of controlling up to 36 volts and 20 amps. One standard thermistor, model MP-3193, is included. A second sensor can be attached for monitoring and alarm purposes. The controller is housed in a die-cast aluminum box and incorporates a keypad and a liquid-crystal display. The display allows the user to monitor the sensor temperature, power output level, and menu settings. The integrated keypad accesses an easy-to-use menu system, allowing the user to adjust all of the basic controller parameters such as the set temperature, tuning parameters, and alarm parameters. The controller can also be connected to a computer via USB for more advanced program control as well as data graphing and data logging using the supplied software. The software is shipped as a stand-alone program, but the LabVIEW source code for that program (version 2013 and higher) is also available upon request.

    Product DetailsQuick View
  • PS-24-6.5 Power Supply

    PS-24-6.5

    $62.00

    Power supply is pictured without the included power cord attached. One North-American standard power cord is supplied attached to the power supply. When ordered in conjunction TE Technology coolers and temperature controllers interconnection cables are included free of charge. Power cords for the UK, EU, and Italy can be purchased separately. RoHS compliant. Input Voltage:

    Product DetailsQuick View
  • TC-36-25-RS232.jpg

    TC-36-25-RS232

    $469.00

    The Model TC-36-25 RS232 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. In addition, Windows-compatible software and an RS232 cable are provided for direct communication via the serial communication port. LabVIEW based GUI available as a download, Source code for that is available upon request. Also, the necessary hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller.

    Product DetailsQuick View
  • TC-720 OEM Temperature Controller

    TC-720 OEM

    $498.00

    The TC-720 OEM is a basic version of the TC-720 controller that is a component for Orginal Equipment Manufacturers (OEM’s) that want to integrate the controller in a system where the display, keypad, and box are not needed. The TC-720 is a Heat & Cool (Bipolar) control controller, and all programming and monitoring functions are accomplished via the onboard USB communications port. The conroller is shipped as the basic control circuit mounted on an aluminum panel. One standard thermistor (model MP-3193) and a software CD are included. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2013 and higher) is also available upon request.

    Product DetailsQuick View
