Air Coolers

Air coolers, sometimes called air-to-air heat exchangers, are the best choice for cooling electrical enclosures and refrigerated cabinets containing objects that can not be easily cooled by direct contact to a cold plate. There may be irregularly shaped components, parts that need freedom to move, or objects that do not have any one good surface from which to remove heat. While not as efficient as the direct contact of a cold plate, air coolers are ideal in these cases because the cooled air adapts to any and all shapes within the cabinet.
Thermoelectric Cooling Assembly Instruction Manual
Cooling assembly and heat load calculator–Calculate insulation losses, determine which cooler is required. For Air Coolers, Cold Plates, & Liquid Coolers.
Standard Coolers and Temperature Controllers Catalog
Wiring Guide for Standard Coolers

Showing all 8 results

  • AC-027

    AC-027

    $225.00

    Capacity Rating: 24 watts at a 0°C temperature difference.
    Example Applications: Ideal for small electronic enclosures, small refrigerators and OEM applications.
    Features: This is our smallest air cooler. It is powered by 12 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. Like all of our air coolers, it incorporates extender blocks between the thermoelectric module and the cold sink. These enable the cooler to have un-impeded airflow on the cold side while still allowing for up to 25 mm thick insulation in the walls of the enclosure. Plus, it also improves performance at high temperature differences. This cooler has the lowest power consumption of any of our standard air coolers making it compatible with all of our temperature controllers.

    Product DetailsQuick View
  • AC-046

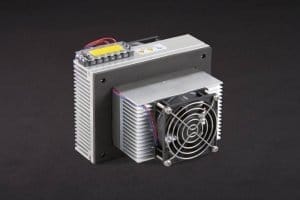

    AC-046

    $285.00

    Capacity Rating: 42 watts at a 0°C temperature difference.
    Example Applications: Ideal for small to medium-sized electronic enclosures, refrigerators, and reagent coolers in biomedical equipment.
    Features: This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. It uses two thermoelectric modules and our proprietary high-density extruded heat sinks to yield a good combination of performance and low cost. The low power consumption makes this cooler compatible with all of our temperature controllers. Like all of our coolers, it can be easily customized to meet your production requirements: special wiring configurations, smaller heat sinks, different operating voltages, lower power consumption, etcetera.

    Product DetailsQuick View
  • AC-053

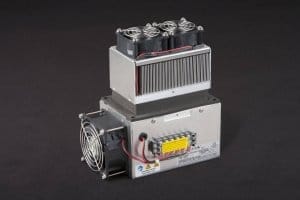

    AC-053

    $487.00

    Capacity Rating: 51 watts at a 0°C temperature difference.
    Example Applications: Biomedical equipment and small-to-medium sized electronics enclosures.
    Features: This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. The external heat-sink fan blows down the length of the heat sink, perpendicular to the direction of air flow of the internal fins. This provides unique options for routing air flow in instrument cabinets. It can be used with the TC-24-10, TC-720 series, TC-36-25 series, and the TC-48-20 series temperature controllers.

    Product DetailsQuick View
  • AC-055

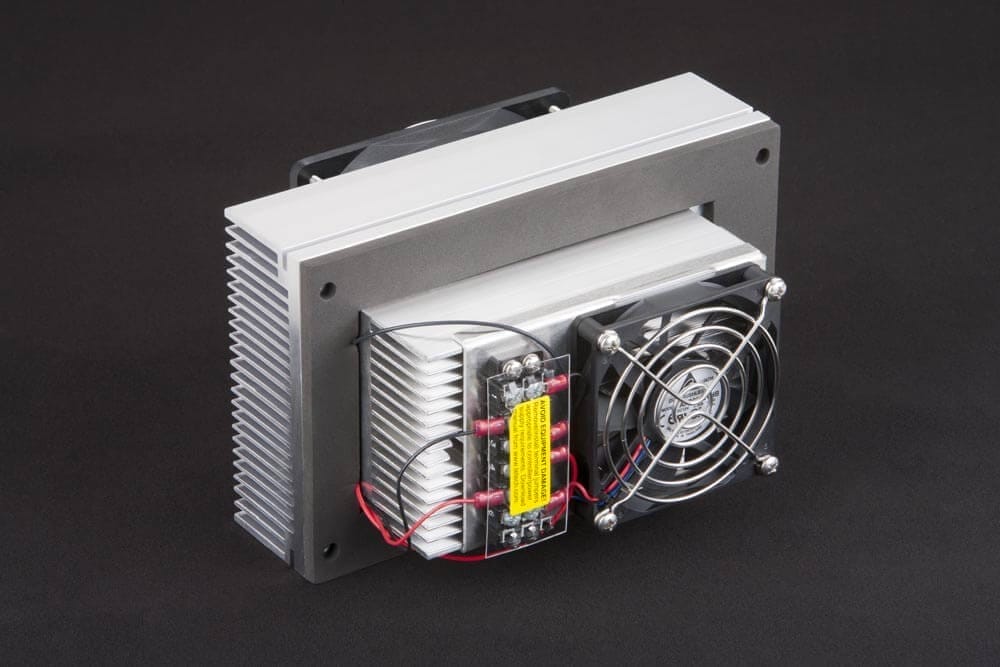

    AC-055

    $394.00

    Capacity Rating: 55 watts at a 0°C temperature difference.
    Example Applications: Ideal for small to medium-sized electronic enclosures or refrigeration applications when a large temperature difference is not required.
    Features: Powered by 12 VDC, has a low power draw, and maintains an enclosure’s NEMA 4 rating. Low profile internal fan blows air into center of cabinet for directed cooling. The low power consumption makes this cooler compatible with all of our temperature controllers. Can be customized for production-sized orders.

    Product DetailsQuick View
  • AC-073

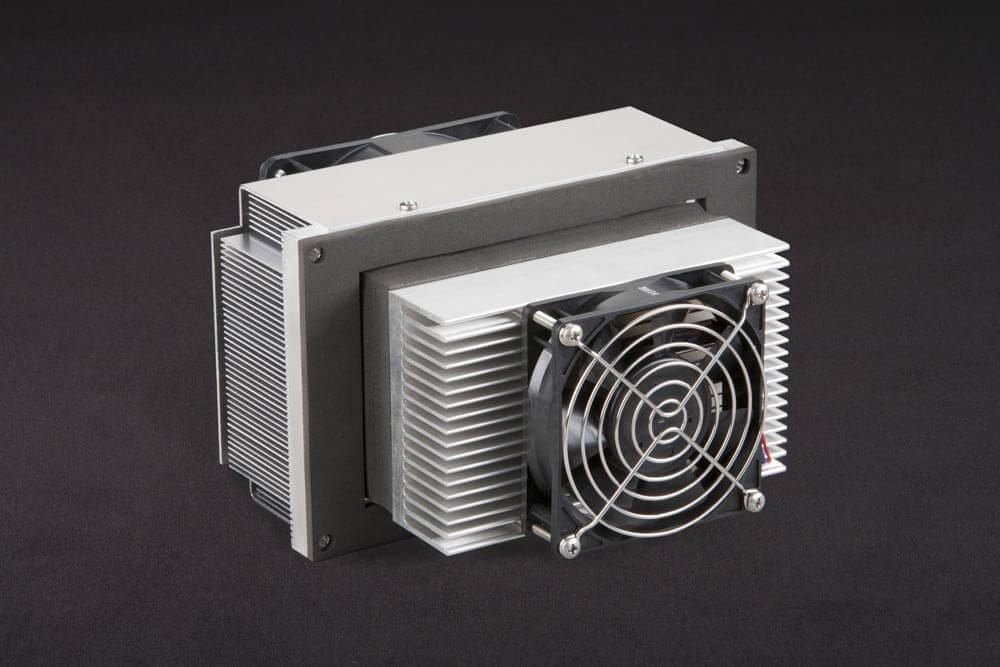

    AC-073

    $443.00

    Capacity Rating: 63 watts at a 0°C temperature difference.
    Example Applications: Biomedical equipment and medium sized electronics enclosures.
    Features: This cooler is powered by 24 VDC, has a NEMA 12 rating, and can be customized to achieve NEMA 4. It uses two large thermoelectric modules and a high-density bonded-fin heat sink that provide excellent performance in a compact footprint. It is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

    Product DetailsQuick View
  • AC-140

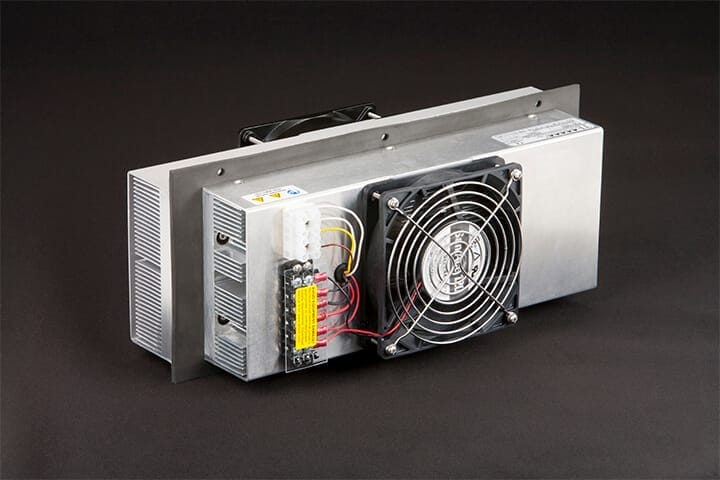

    AC-140

    $899.00

    Capacity Rating: 139 watts at a 0°C temperature difference.
    Example Applications: Electronic equipment enclosures, telecommunications equipment, and camera enclosures.
    Features: Specially designed to remove heat from an enclosure while maintaining the internal temperature at or near ambient. Low power consumption and high efficiency yield low operating costs and make it a good choice when the power supply must be located inside the enclosure. It has a sealed fan, corrosion protection, and maintains an enclosure’s NEMA 4 rating. Compatible with all of TE Technology’s temperature controllers. Multiple units can be easily controlled by one temperature controller.

    Product DetailsQuick View
  • AC-162

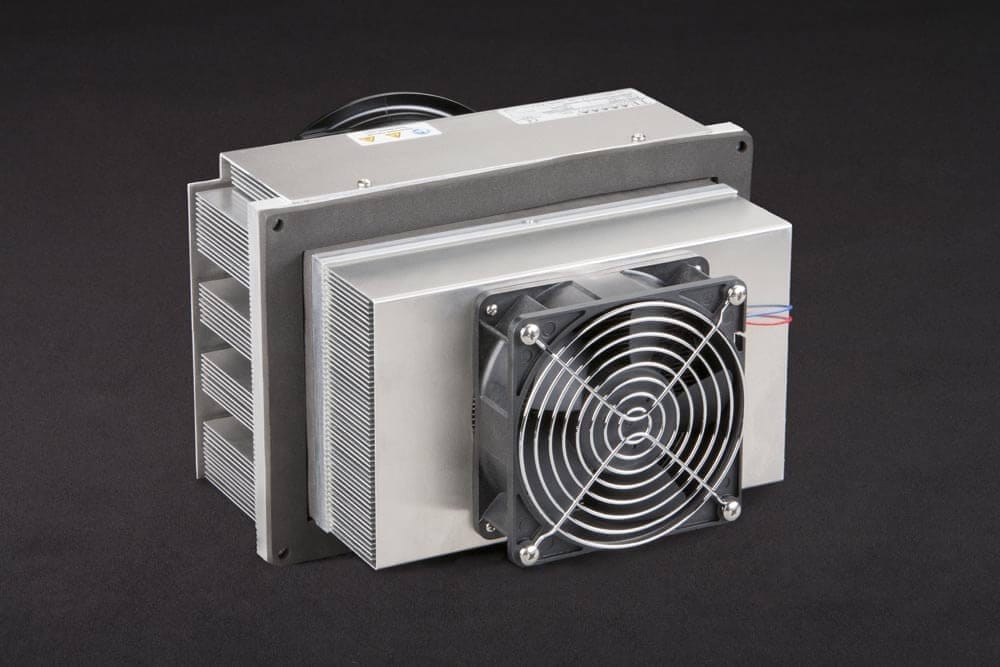

    AC-162

    $739.00

    Capacity Rating: 159 watts at a 0°C temperature difference.
    Example Applications: Electronic enclosures, refrigerators and biomedical equipment where cooling to near-freezing temperatures is desired.
    Features: Six thermoelectric modules, extender blocks, and a bonded-fin heat sink and cold sink make this cooler very efficient and compact for its capacity. The bonded-fin cold sink keeps the temperature difference between the enclosure’s air and the cold sink to a minimum. This is especially useful for cooling to temperatures near 0 °C when a less efficient cold sink would allow condensation to freeze on it and restrict airflow. This cooler is powered by 24 VDC, is rated to NEMA 12, and can be customized to achieve NEMA 4. It is compatible with theTC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

    Product DetailsQuick View
  • AC-194

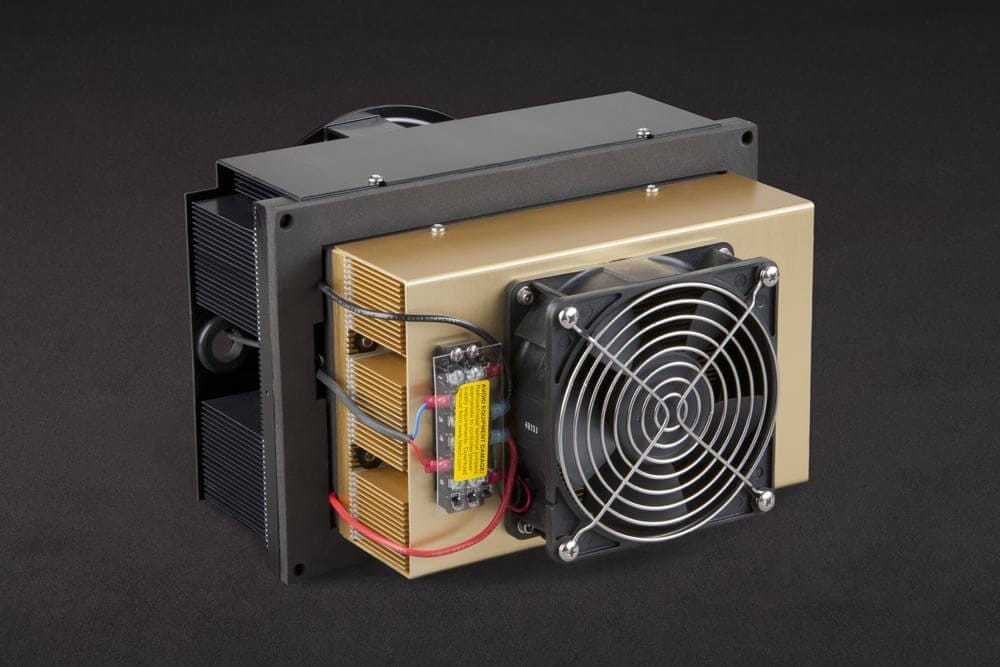

    AC-194

    $919.00

    Capacity Rating: 189 watts at a 0 °C temperature difference.
    Example Applications: Ideal for telecommunications equipment, electronics enclosures, battery boxes and refrigerators.
    Features: This cooler is powered by 48 VDC and is rated to maintain the enclosure’s NEMA 4 rating. The hot-side fan is sealed against moisture, and the heat sink uses marine-grade anodizing to prevent corrosion. The input wires are routed on the cold side of the cooler, making it easy to power via wiring from inside the enclosure although care should be taken so that condensation is not allowed to form on the cold sink. It is compatible with the TC-48-20 series temperature controllers.

    Product DetailsQuick View
