MP-2379

Description: A standard lug-mounted thermistor with 24 gauge wire and terminated ends. 15K ohms at 25 °C, for measuring from -20 °C to +100 °C

SKU: 7150. Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $22
10 - 49 $21
50 - 99 $19.80

Description: A standard lug-mounted thermistor with 24 gauge wire and terminated ends. 15K ohms at 25 °C, for measuring from -20 °C to +100 °C

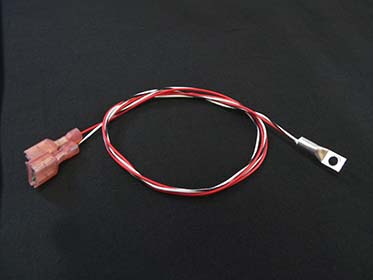

A standard lug-mounted thermistor, 15K ohms at @ 25 °C (TS-67/ 15K-1 curve).  Wire is 24 gauge stranded, overall length is 527 mm.  This sensor this is essentially a 4.8 mm diameter aluminum tube that has been flattened at one end with a mounting hole placed in the flattened section.  The wires are terminated with 0.25 inch female Fast-On terminals.

MP-2379-dims

Temperature-Resistance Data
Excel-32-d

Compatible with:

  • TC-24-10.jpg

    TC-24-10

    $119.00

    The Model TC-24-10 is a RoHS compliant proportional-integral (PI) temperature controller developed for applications requiring a low cost, basic temperature controller. Set-point and tuning adjustments are made via potentiometer. It can modulate power from 9V up to 26 V at currents up to 10 A when using a single power supply. The controller can also modulate from 0 V up to 50 V when using two power supplies, making this a good choice for controlling low-voltage modules. As with all of our controllers, a standard temperature sensor (15K thermistor) is included. When it is ordered with a thermoelectric cooling assembly and a power supply, the necessary hook-up cables are also included.
