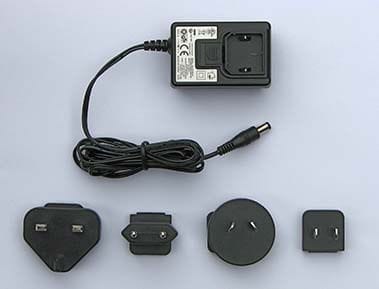

PS-15-0.4

A low cost, low output power supply intended for powering the microprocessor circuits on the TC-48-20 series, TC-36-25 series, and TC-24-10 temperature controllers when operating in two-power supplies configuration (only needed when operating in two-power supplies configuration).

Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $26.00
10 - 49 $24.00
50 - 99 $22.00
100 - 249 $20.00

A low cost, low output power supply intended for powering the microprocessor circuits on the TC-48-20 series, TC-36-25 series, and TC-24-10 temperature controllers when operating in two-power supplies configuration (only needed when operating in two-power supplies configuration).

A 15 VDC, 0.4 Amp power supply for powering TC-48-20 series controllers when using a two-power supplies configuration.  The PS-15-0.4 is not required for the TC-48-20 series when using a single power supply with an output voltage of >9 and < 50 volts.

This power supply can also be used to power the microprocessor on the TC-24-10 and the TC-36-25 series temperature controllers (when operating a two-power supplies configuration).  However, when used with these controllers the barrel connector on the PS-15-0.4 will need to be removed and the power wires connected directly to the controllers, as these temperature controllers do not have the mating plug for the barrel connector.

Please note that this will not power a load, it is intended for powering the electronics of the controller only.  A separate power supply must be used for powering the load — see the temperature controller manuals for further information.



Compatible with:

  • TC-36-25-RS232.jpg

    TC-36-25-RS232

    $469.00

    The Model TC-36-25 RS232 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. In addition, Windows-compatible software and an RS232 cable are provided for direct communication via the serial communication port. LabVIEW based GUI available as a download, Source code for that is available upon request. Also, the necessary hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller.

    Product DetailsQuick View
  • TC-48-20%20OEM.jpg

    TC-48-20 OEM

    $189.00

    The TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-48-20.jpg

    TC-48-20

    $299.00

    The TC-48-20 is an easy to use yet powerful cool-only or heat-only PWM temperature controller. It is housed in a die-cast aluinum box, incorporates a keypad and display, and is capable of controlling from 0 to 50 volts and up to 20 amps. Two versatile alarm outputs are included, each capable of switching up to 1 amp of current. If a true linear-output control system is desired (for applications extremely sensitive to electrical noise) the TC-48-20 can be used as the control head for high-power, variable-output linear supplies. Most control parameters can be programmed via the built-in keypad, but the controller can also be connected to a computer via an optional RS232 serial cable for more advanced program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-24-10.jpg

    TC-24-10

    $119.00

    The Model TC-24-10 is a RoHS compliant proportional-integral (PI) temperature controller developed for applications requiring a low cost, basic temperature controller. Set-point and tuning adjustments are made via potentiometer. It can modulate power from 9V up to 26 V at currents up to 10 A when using a single power supply. The controller can also modulate from 0 V up to 50 V when using two power supplies, making this a good choice for controlling low-voltage modules. As with all of our controllers, a standard temperature sensor (15K thermistor) is included. When it is ordered with a thermoelectric cooling assembly and a power supply, the necessary hook-up cables are also included.

    Product DetailsQuick View
  • TC-36-25-RS485.jpg

    TC-36-25-RS485

    $459.00

    The Model TC-36-25 RS485 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. Multiple controllers can be daisy-chained together and run off a single communication port using the optional RS485 Adapter (USB). Windows-compatible software is provided for easily programming the controller. Also, the necessary hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is available upon request.

    Product DetailsQuick View
