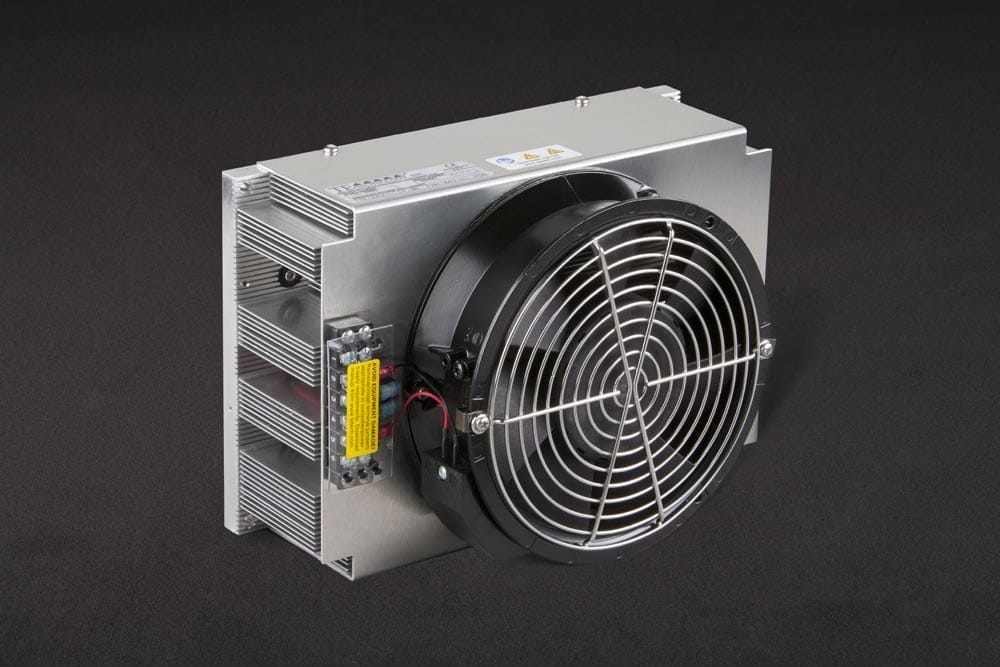

LC-200

Capacity Rating: 184 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, laser diode cooling, medical products, recirculating chillers, temperature baths.

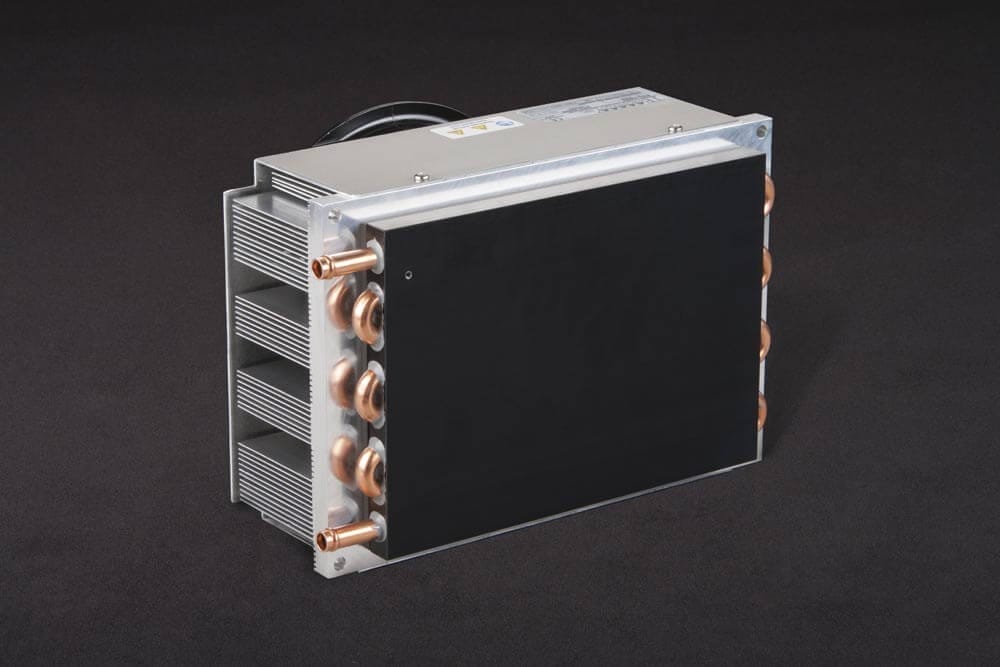

Features: High-density bonded-fin heat sink, an eight-pass liquid loop, and six thermoelectric modules for high capacity in a compact size. As with all of our liquid coolers it can be customized with swirl inserts in the liquid loop to improve efficiency at low flow rates. This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

SKU: 4200. Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $629
10 - 49 $612
50 - 99 $596
100 - 249 $584

Capacity Rating: 184 watts at a 0°C temperature difference.
Example Applications: Laboratory instruments, laser diode cooling, medical products, recirculating chillers, temperature baths.
Features: High-density bonded-fin heat sink, an eight-pass liquid loop, and six thermoelectric modules for high capacity in a compact size. As with all of our liquid coolers it can be customized with swirl inserts in the liquid loop to improve efficiency at low flow rates. This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

• High density heat sink for high capacity in a compact size.
• Can be used with a secondary liquid heat sink at a remote heat source for cooling high heat flux applications.
• Ideal for recirculating water chillers or in-process fluid cooling.
• Corrosion resistant hard-coat anodizing on aluminum portions of cold sink.
• CE marked and RoHS compliant.

High-density bonded-fin heat sink, an eight-pass liquid loop, and six thermoelectric modules for high capacity in a compact size. As with all of our liquid coolers it can be customized with swirl inserts in the liquid loop to improve efficiency at low flow rates. For a stainless steel liquid paths select a cold-plate style cooler such as the CP-200 series and add an one or two optional LC-SSX1 stainless steel liquid exchanger plates. This cooler is powered by 24 VDC and is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

LC-200 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D model. You can rotate and view the cooler from any angle to better understand the physical properties of the product. (However, wire leads are not shown in the model.) This is a portable document format (.pdf) file, Adobe Reader 8 or higher is all that is required for viewing. 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.



Compatible with:

  • TC-48-20%20OEM.jpg

    TC-48-20 OEM

    $189.00

    The TC-48-20 OEM has the same control capabilities as the TC-48-20 but leaves off the keypad, display interface, and housing to keep costs to a minimum. The controller can be connected to a computer via an optional RS232 serial cable and used with the included software to provide program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-36-25-RS232.jpg

    TC-36-25-RS232

    $469.00

    The Model TC-36-25 RS232 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. In addition, Windows-compatible software and an RS232 cable are provided for direct communication via the serial communication port. LabVIEW based GUI available as a download, Source code for that is available upon request. Also, the necessary hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller.

    Product DetailsQuick View
  • PS-24-25

    PS-24-25

    $203.00

    Power supply is pictured with the included power cord attached. The power cord is for use with North-American electrical outlets. Power cords for the UK, EU, and Italy can be purchased separately. When ordered in conjunction with TE Technology coolers and temperature controllers, interconnection cables are included free of charge. RoHS compliant. Output Power: 24 Vdc at 25 A max.

    Product DetailsQuick View
  • TC-720 OEM Temperature Controller

    TC-720 OEM

    $498.00

    The TC-720 OEM is a basic version of the TC-720 controller that is a component for Orginal Equipment Manufacturers (OEM’s) that want to integrate the controller in a system where the display, keypad, and box are not needed. The TC-720 is a Heat & Cool (Bipolar) control controller, and all programming and monitoring functions are accomplished via the onboard USB communications port. The conroller is shipped as the basic control circuit mounted on an aluminum panel. One standard thermistor (model MP-3193) and a software CD are included. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2013 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-720 Temperature Controller

    TC-720

    $618.00

    The TC-720 is a bipolar, heat and cool, thermoelectric temperature controller with USB communications. It is capable of controlling up to 36 volts and 20 amps. One standard thermistor, model MP-3193, is included. A second sensor can be attached for monitoring and alarm purposes. The controller is housed in a die-cast aluminum box and incorporates a keypad and a liquid-crystal display. The display allows the user to monitor the sensor temperature, power output level, and menu settings. The integrated keypad accesses an easy-to-use menu system, allowing the user to adjust all of the basic controller parameters such as the set temperature, tuning parameters, and alarm parameters. The controller can also be connected to a computer via USB for more advanced program control as well as data graphing and data logging using the supplied software. The software is shipped as a stand-alone program, but the LabVIEW source code for that program (version 2013 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-48-20.jpg

    TC-48-20

    $299.00

    The TC-48-20 is an easy to use yet powerful cool-only or heat-only PWM temperature controller. It is housed in a die-cast aluinum box, incorporates a keypad and display, and is capable of controlling from 0 to 50 volts and up to 20 amps. Two versatile alarm outputs are included, each capable of switching up to 1 amp of current. If a true linear-output control system is desired (for applications extremely sensitive to electrical noise) the TC-48-20 can be used as the control head for high-power, variable-output linear supplies. Most control parameters can be programmed via the built-in keypad, but the controller can also be connected to a computer via an optional RS232 serial cable for more advanced program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request.

    Product DetailsQuick View
  • TC-36-25-RS485.jpg

    TC-36-25-RS485

    $459.00

    The Model TC-36-25 RS485 is a bi-polar (heat and cool) proportional-integral-derivative temperature controller that can modulate power input from 12 V up to 36 V, or from 0 V to 36 V with a second power supply, at currents of up to 25 A. The controller comes standard with a temperature sensor (thermistor), but it can also be used with common 10 k ohm thermistors. Multiple controllers can be daisy-chained together and run off a single communication port using the optional RS485 Adapter (USB). Windows-compatible software is provided for easily programming the controller. Also, the necessary hook-up cables are included when a thermoelectric cooling assembly and power supply are ordered with the controller. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is available upon request.

    Product DetailsQuick View
