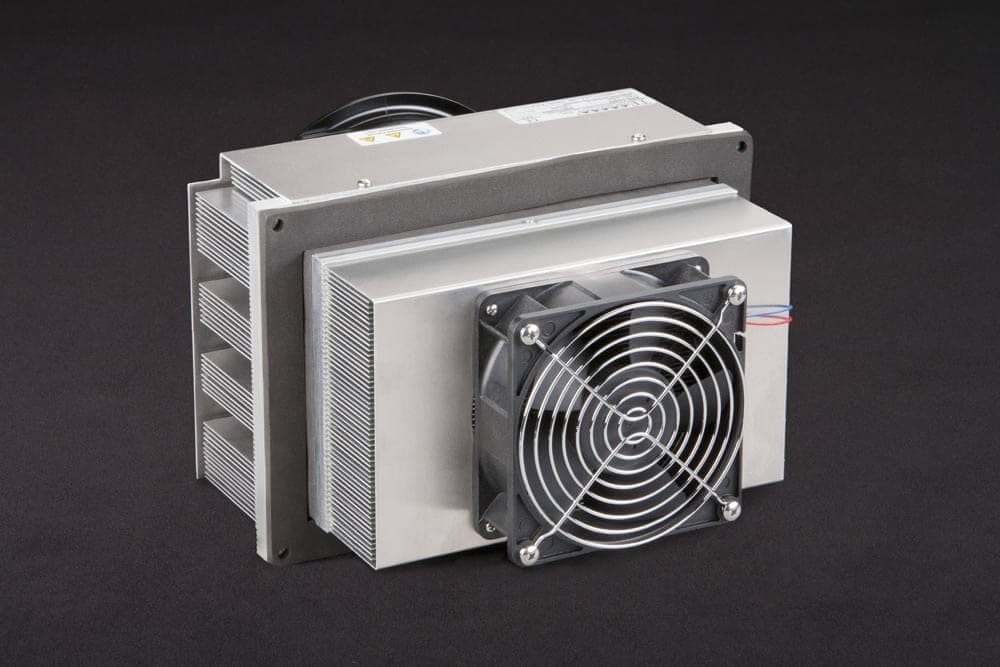

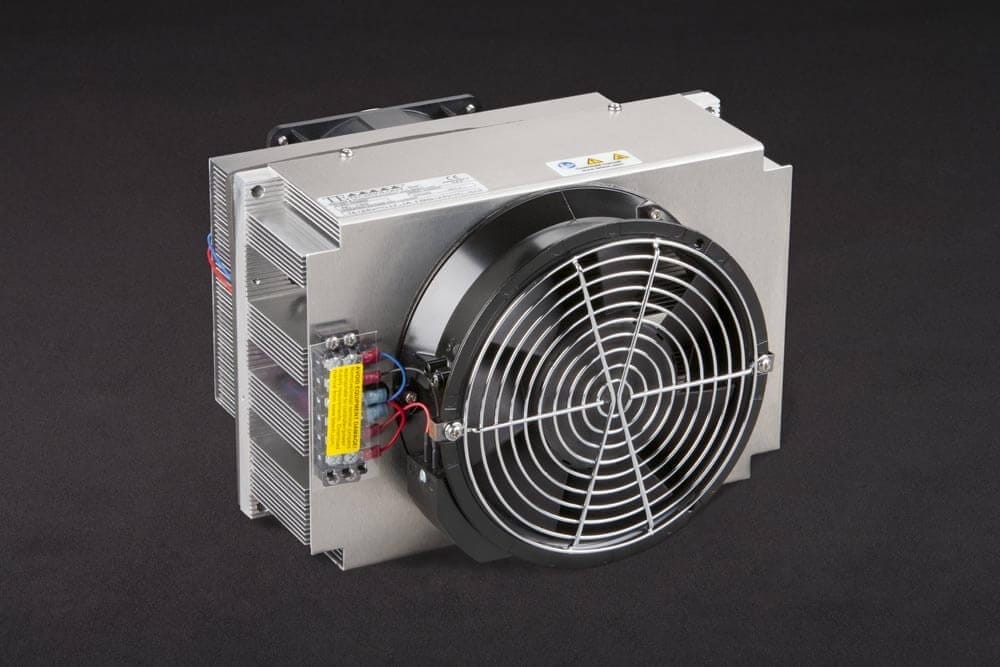

AC-162

Capacity Rating: 159 watts at a 0°C temperature difference.
Example Applications: Electronic enclosures, refrigerators and biomedical equipment where cooling to near-freezing temperatures is desired.
Features: Six thermoelectric modules, extender blocks, and a bonded-fin heat sink and cold sink make this cooler very efficient and compact for its capacity. The bonded-fin cold sink keeps the temperature difference between the enclosure’s air and the cold sink to a minimum. This is especially useful for cooling to temperatures near 0 °C when a less efficient cold sink would allow condensation to freeze on it and restrict airflow. This cooler is powered by 24 VDC, is rated to NEMA 12, and can be customized to achieve NEMA 4. It is compatible with theTC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

SKU: 4050. Category: .

In Stock

Dynamic Pricing
Quantity   Price
1 - 9 $698
10 - 49 $679
50 - 99 $658
100 - 249 $640

Capacity Rating: 159 watts at a 0°C temperature difference.
Example Applications: Electronic enclosures, refrigerators and biomedical equipment where cooling to near-freezing temperatures is desired.
Features: Six thermoelectric modules, extender blocks, and a bonded-fin heat sink and cold sink make this cooler very efficient and compact for its capacity. The bonded-fin cold sink keeps the temperature difference between the enclosure’s air and the cold sink to a minimum. This is especially useful for cooling to temperatures near 0 °C when a less efficient cold sink would allow condensation to freeze on it and restrict airflow. This cooler is powered by 24 VDC, is rated to NEMA 12, and can be customized to achieve NEMA 4. It is compatible with theTC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

• Cools 45 °C below ambient in a 25 °C environment.
• Cools to near 0 °C temperatures without forming frost on the cold sink.
• Compact, bonded-fin heat sink and cold sink for minimum size and maximum cooling.
• Low maintenance with no moving parts, except the fans.
• Operates in any orientation with minimal noise and vibration.
• CE marked and RoHS compliant.

Six thermoelectric modules, extender blocks, and a bonded-fin heat sink and cold sink make this cooler very efficient and compact for its capacity.  The bonded-fin cold sink keeps the temperature difference between the enclosure’s air and the cold sink to a minimum.  This is especially useful for cooling to temperatures near 0 °C when a less efficient cold sink would allow condensation to freeze on it and restrict airflow. This cooler is powered by 24 VDC, is rated to NEMA 12, and can be customized to achieve NEMA 4. It is compatible with the TC-720 series, TC-36-25 series, and TC-48-20 series temperature controllers.

Specifications and Features
pdf-icon

Standard Coolers and Temperature Controllers Catalog

AC-162 3D Model in .pdf Format (Requires Adobe Reader 8.0 or higher)

3Dpdf-icon

3D PDF MODEL: Click on the link above to download a 3D solid model in portable document format (PDF). This must be opened in the Adobe Reader (or Acrobat) version 8 or higher. It WILL NOT WORK IF OPENED IN A BROWSER WINDOW. You can rotate and view the cooler from any angle (however, wire leads are not shown in the model). 3D content may initially appear as a two-dimensional preview image. Clicking the 3D model with the Hand or Select tool enables (or activates) the model and opens the 3D toolbar.
